You’re staring at a metal surface caked in layers of old paint, stubborn rust, or a weld seam that needs smoothing. You’ve got your trusty angle grinder in hand, but which attachment gets the job done fast without destroying the base material? For years, the diamond cup wheel has been the go-to for many. But there’s a modern, more versatile, and often more effective alternative that’s surging in popularity: the non-woven abrasive strip disc. Understanding the right tool for your project can save you time, money, and a lot of frustration.
What Is a Diamond Cup Wheel for an Angle Grinder?
A diamond cup wheel is a grinding attachment for an angle grinder, characterized by its cup-like shape. Its working face is embedded with industrial diamond particles, the hardest material on earth, bonded to a metal matrix. Unlike a flat grinding disc, its design allows for aggressive material removal on flat surfaces, making it a powerhouse for tasks like leveling concrete, smoothing stone, or grinding down hard metals.
However, its aggressive nature is a double-edged sword. On softer metals like automotive body panels or structural steel where you only need to remove surface contaminants, a diamond cup wheel can be overkill, potentially gouging the base material and creating deep, difficult-to-fix scratches.
When Should You Use a Diamond Cup Wheel?
The diamond cup wheel excels in applications where you need to remove a significant amount of a very hard substrate. Think of it as your tool for demolition and heavy shaping, not fine surface preparation.
- Concrete Grinding & Leveling: Perfect for removing high spots, smoothing rough slabs, or preparing concrete for coatings.
- Stone & Masonry Work: Shaping granite, marble, or other natural stone.
- Aggressive Metal Stock Removal: Grinding down heavy welds on thick steel plate or removing hard-facing materials.
- Epoxy & Coating Removal on Hard Surfaces: Stripping thick, cured epoxy from concrete floors.
The Modern Alternative: Non-Woven Abrasive Strip Discs

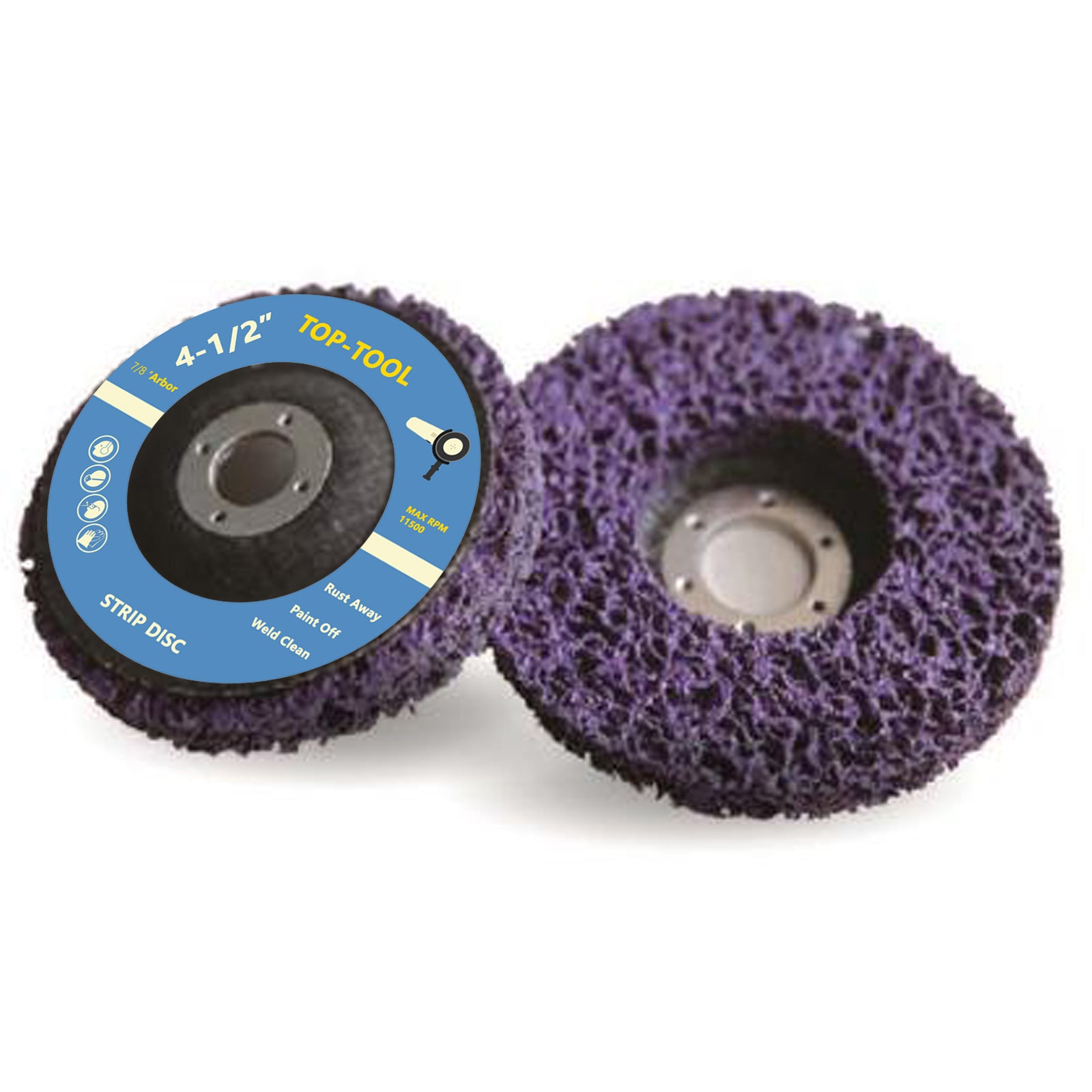

For the vast majority of surface prep, paint, and rust removal jobs on metal—the very tasks many people search for a diamond cup wheel to do—a non-woven abrasive strip disc is a superior choice. These discs, like the TOP-TOOL 4.5-inch stripping wheel, are made from dense nylon fibers impregnated with abrasive grains. Their open web construction runs cooler, resists loading, and is far more forgiving on the base material.
This category has seen explosive growth, with year-over-year search interest increasing over 400%, as DIYers and professionals alike discover their effectiveness. They bridge the gap between a violent wire cup brush and a rigid grinding disc.
Angle Grinder Attachments Compared: Choosing the Right Tool
Selecting the wrong attachment can ruin your workpiece or make a simple job take hours. This comparison table breaks down the primary uses for each common angle grinder accessory.
| Attachment | Best For | Not For | Surface Finish |
|---|---|---|---|
| Diamond Cup Wheel | Concrete leveling, heavy stone grinding, aggressive weld removal on thick steel. | Thin metal, paint/rust removal (will gouge), fine surface prep. | Very rough, deep scratches. Requires further finishing. |
| Non-Woven Strip Disc (e.g., TOP-TOOL 4" strip disc) | Paint, rust, and coating removal on metal; light deburring; surface cleaning without damaging substrate. | Removing large amounts of hard material like concrete or heavy welds. | Clean, etched surface ready for priming or welding. Minimal base metal loss. |
| Flap Disc | Blending, finishing, and smoothing after grinding; removing light rust and mill scale. | Aggressive stripping of thick paint or heavy rust (will load up quickly). | Smooth, consistent finish. Can progress from coarse to fine grits. |
| Wire Cup Brush | Loosening heavy, flaky rust and scale; cleaning weld spatter; rough cleaning. | Removing adhered paint or creating a "clean" surface for finishing. Tends to polish rather than abrade. | Polished but contaminated. Often embeds rust particles into the metal. |
Buyer's Guide: What to Look For in a Diamond Cup Wheel or Strip Disc
If You Need a Diamond Cup Wheel:
- Bond Hardness: Softer bonds (resin) are for hard materials like concrete; harder bonds (metal) are for softer materials like stone.
- Diamond Grit & Quality: Coarser grit (e.g., 16-30) for fast removal; finer grit (e.g., 60-80) for smoother finishes. Premium diamonds last longer.
- Arbor Size: Must match your grinder's spindle thread (typically 5/8"-11 or M14).
If You Need a Strip Disc (The Versatile Choice for Metal):
- Abrasive Grit Material: Zirconia alumina offers the best balance of durability and cutting speed for metal.
- Fiber Density: Denser discs last longer and cut more aggressively but may run hotter.
- Size & Compatibility: Ensure it matches your grinder's guard and rating. A 4.5-inch strip disc fits standard 4.5" grinders.
Frequently Asked Questions (Q&A)
Q: Can I use a diamond cup wheel to remove paint from my car's frame?
A: It's not recommended. A diamond cup wheel is designed to grind hard substrates and will aggressively remove metal along with the paint, potentially weakening thin structural components. For automotive paint and rust removal, a 4-inch poly strip disc is a far better choice as it strips contaminants without damaging the underlying metal.
Q: Why does my strip disc seem to wear out faster on painted surfaces?
A: Soft materials like paint and rust can "glaze over" the abrasive grains, reducing their cutting ability. To extend disc life, use a lighter touch and frequently "dress" the disc by briefly running it against a scrap piece of bare, hard metal to break off the loaded material and expose fresh abrasive.
Q: What's the main safety difference between a cup wheel and a strip disc?
A: Both require full PPE (face shield, gloves, hearing protection). The key difference is in the debris. Diamond cup wheels on concrete/stone create hazardous silica dust, requiring a respirator and dust extraction. Strip discs primarily create particulate dust from paint/rust, which still requires a respirator but is less hazardous than silica. Always check the material's SDS (Safety Data Sheet).
Q: Can I use a strip disc on wood?
A: No. The high RPM of an angle grinder combined with a strip disc on wood is extremely dangerous and can lead to severe kickback or the disc disintegrating. Use tools specifically designed for woodworking.
Why Source From TOP-TOOL?
TOP-TOOL was founded to solve a common frustration in the trades and DIY world: the frustrating choice between overpriced name-brand tools and cheap, unreliable alternatives that fail mid-job. We saw a clear gap in the market for high-performance tools that don't come with a brand-name markup.
Our process is simple but rigorous. Every product in our lineup, from our best-selling 4.5-inch stripping wheel to our specialty abrasives, undergoes strict quality and price screening. We test for real-world performance, durability, and value. This means you get a tool that performs on par with premium brands, but at a fair price that reflects the cost of the tool itself, not the marketing behind it.
In short, we do the vetting for you. You avoid the expense of famous brands and the gamble of unknown brands. Every purchase is backed by clear return policies, exchanges, and genuine after-sales support because we believe in the tools we sell.
We're not just selling products — we're creating value for our customers.
Key Takeaways
- Match the Tool to the Task: Use a diamond cup wheel for hard substrates (concrete, stone, heavy welds). For surface prep on metal (paint, rust), a non-woven strip disc is the modern, superior choice.
- Strip Discs are Surging in Popularity: With 400%+ YoY search growth, tools like the TOP-TOOL poly strip discs are becoming the new standard for efficient, non-destructive cleaning and stripping.
- Safety is Non-Negotiable: Regardless of the attachment, always use a face shield, respirator, gloves, and hearing protection. Connect dust extraction when possible.
- Quality Doesn't Require a Brand Tax: You can get professional-grade performance without the premium price by sourcing from curated brands like TOP-TOOL that focus on product integrity over marketing.
- Start with the Right Disc: For most metalworking and restoration projects, beginning with a strip disc will save you time correcting gouges and provide a better surface for your next step, whether it's priming, welding, or applying a flap disc for finishing.
