Workholding & Machine Tool Accessories
Machine Tool Accessories
Browse TOP-TOOL machine tool accessories and precision workholding solutions for turning, milling, grinding, drilling and CNC machining applications. Explore manual and power chucks, collet systems, expanding mandrels, tool holders, lathe centers, machine vises, rotary tables, dividing heads and other workholding products.
Browse by Category

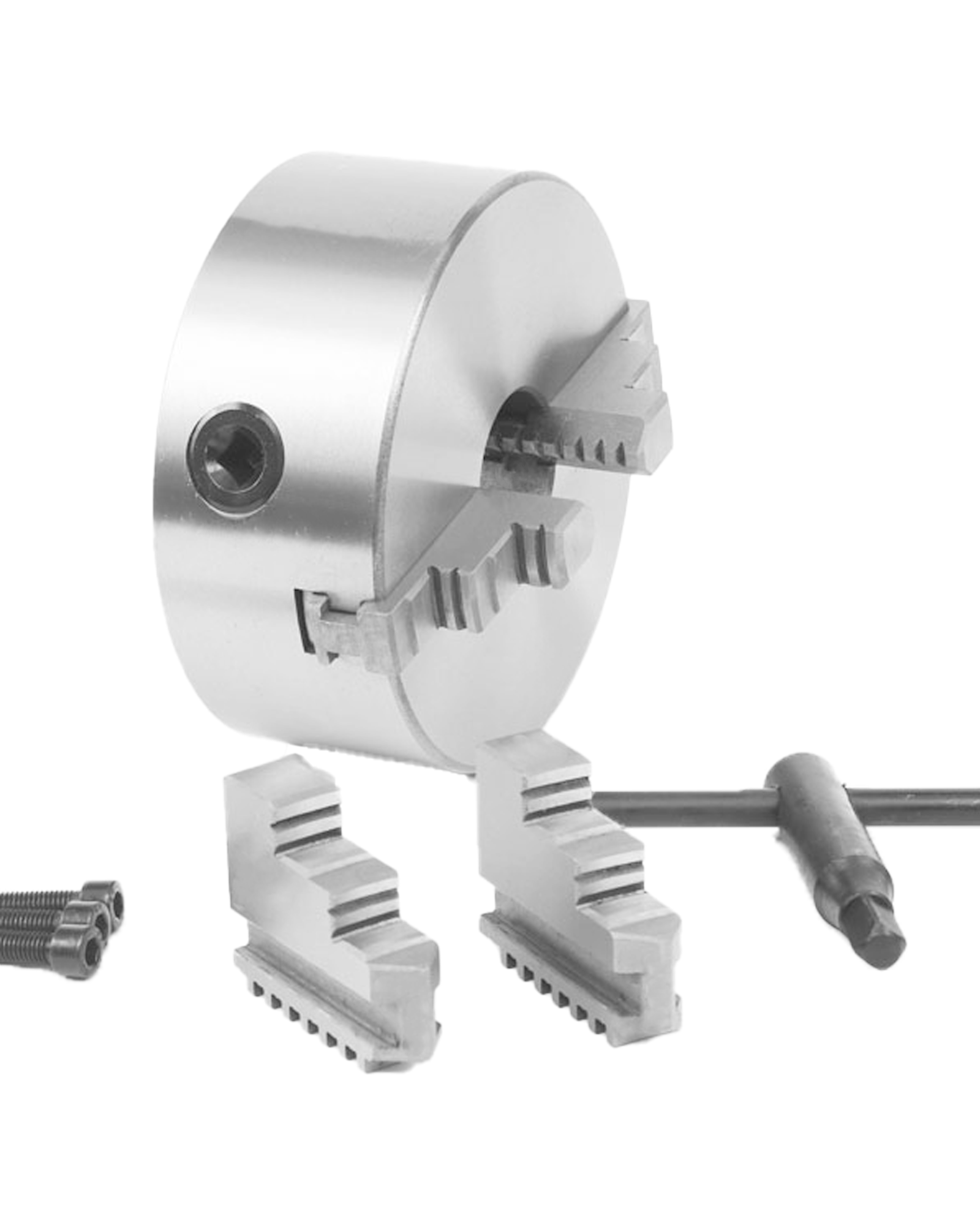

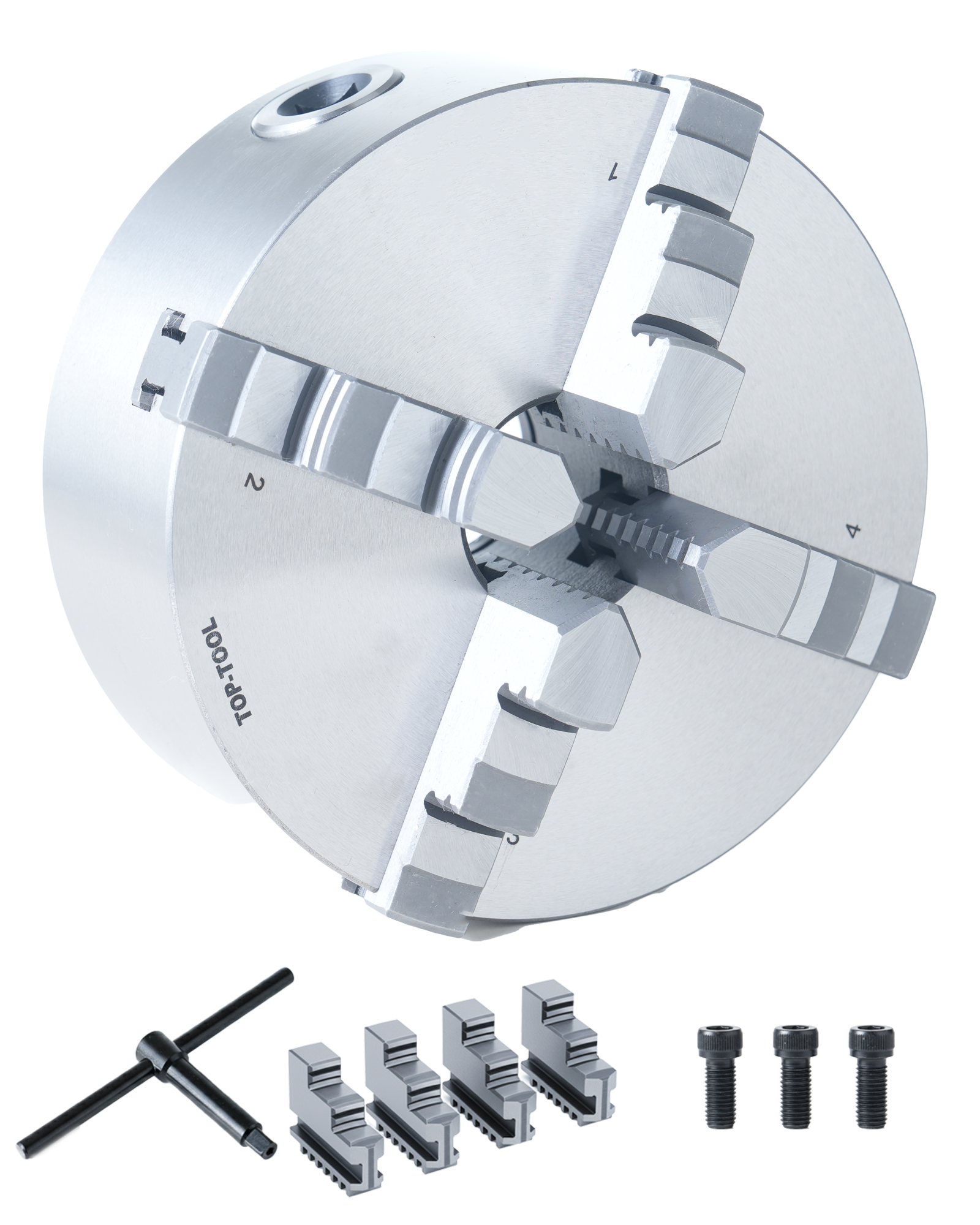

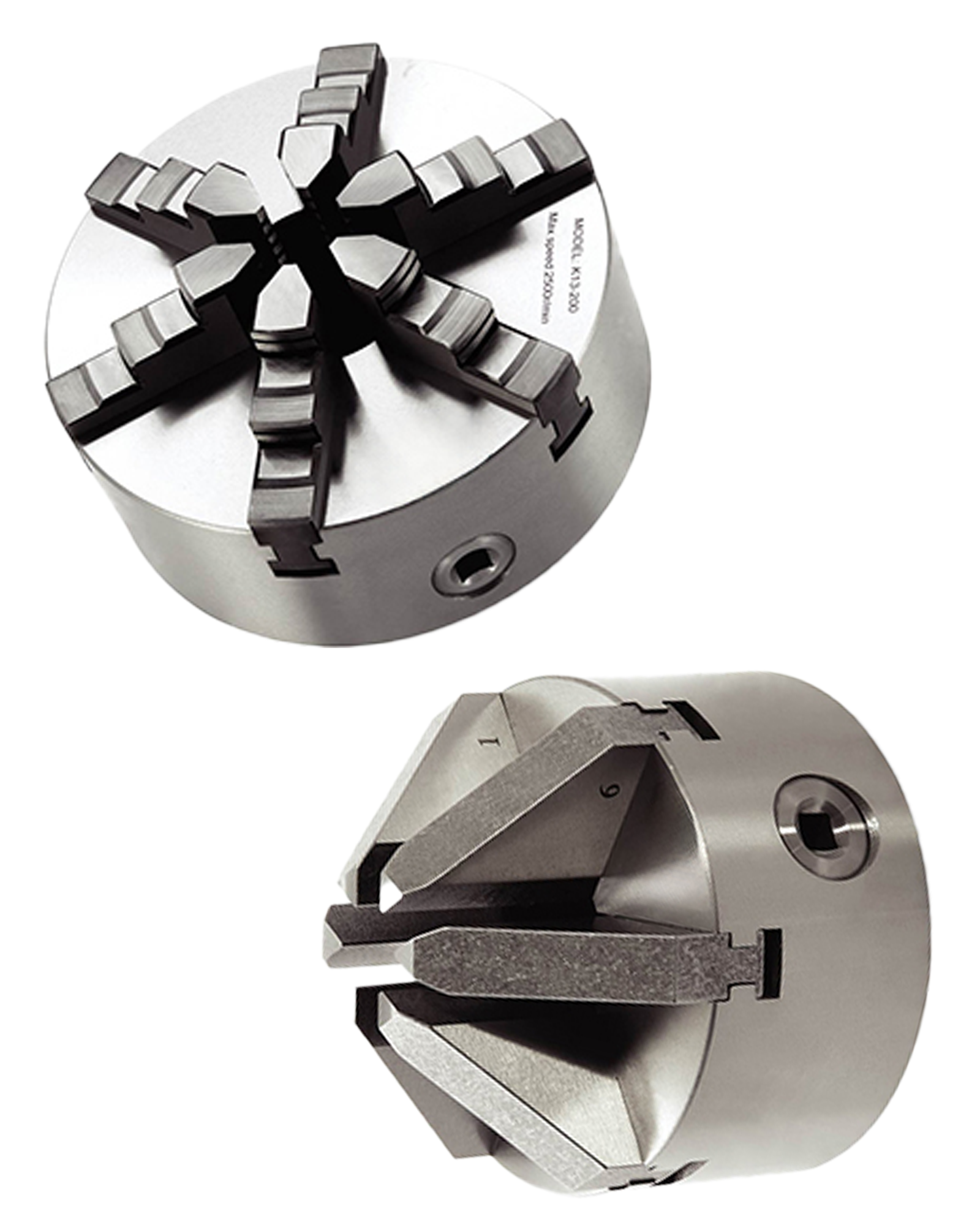

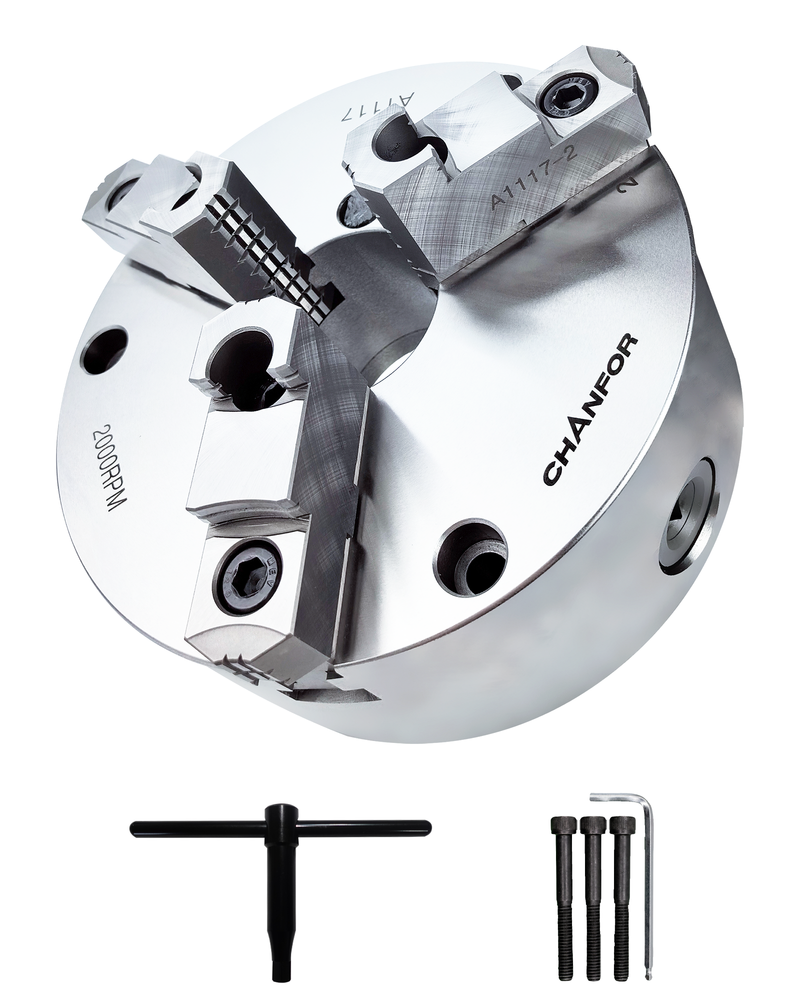

Manual Chucks
Manual lathe chucks for general turning, self-centering clamping and independent jaw adjustment.

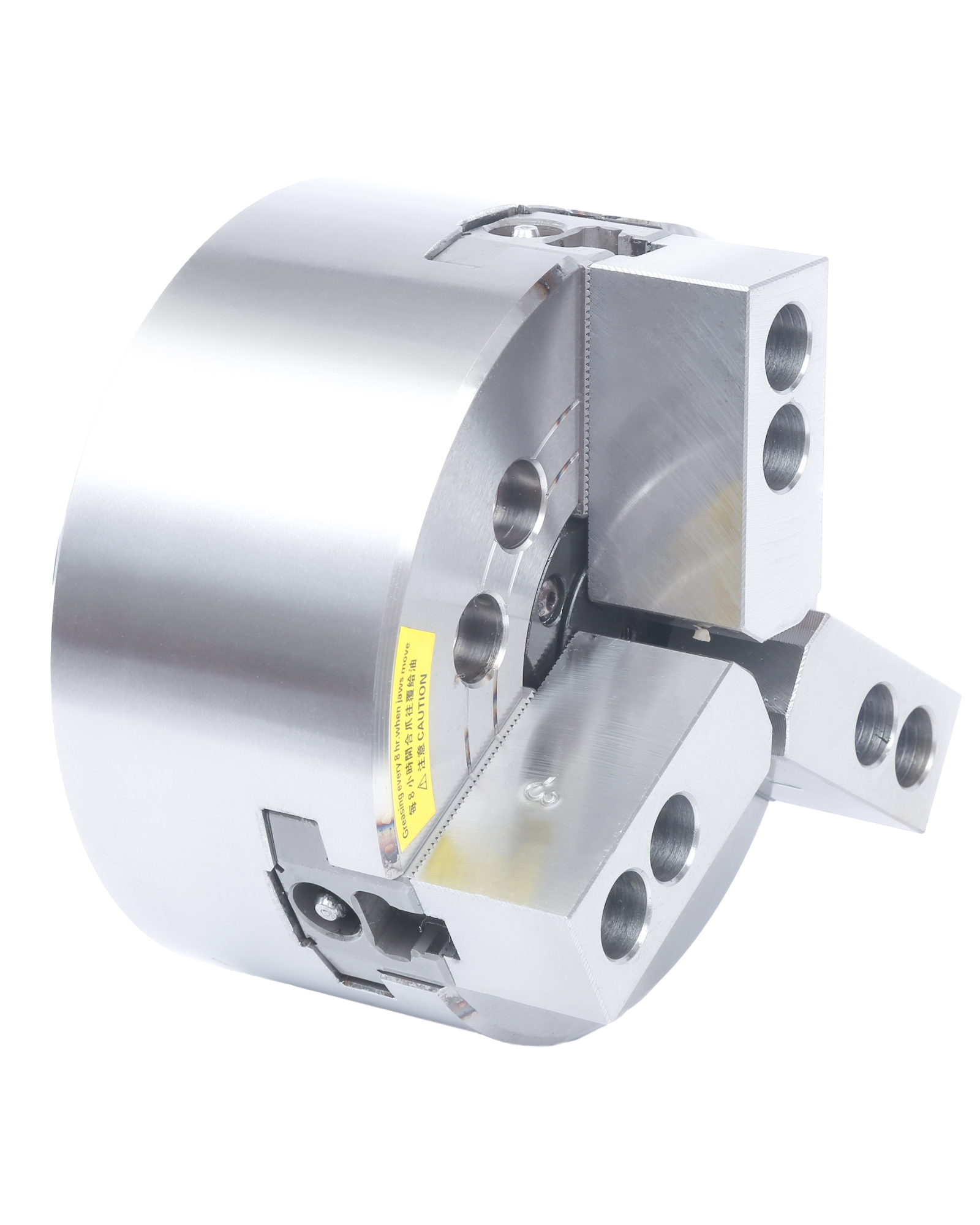

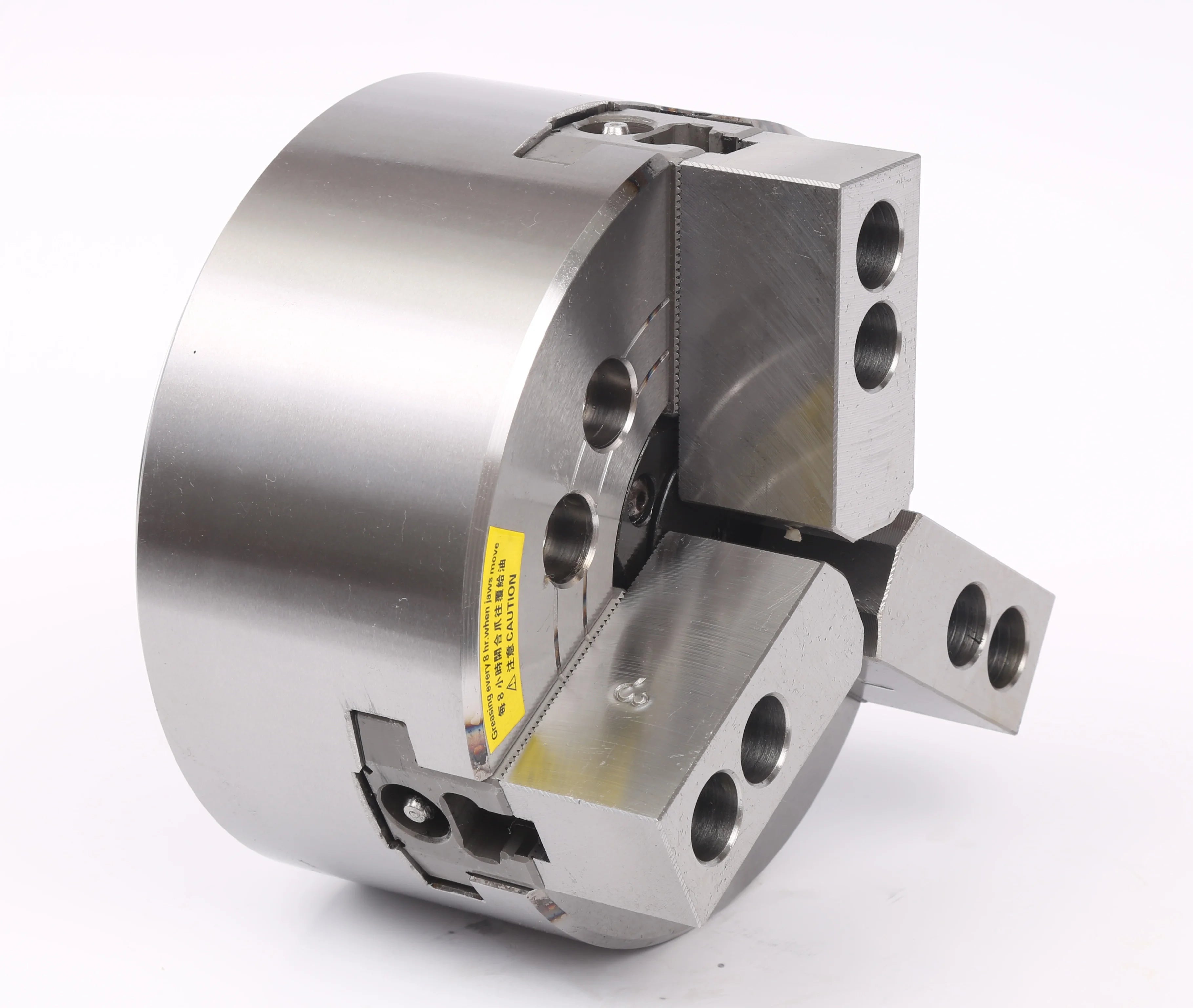

Power Chucks
Power chucks for CNC lathe workholding, chuck size review and machine interface matching.

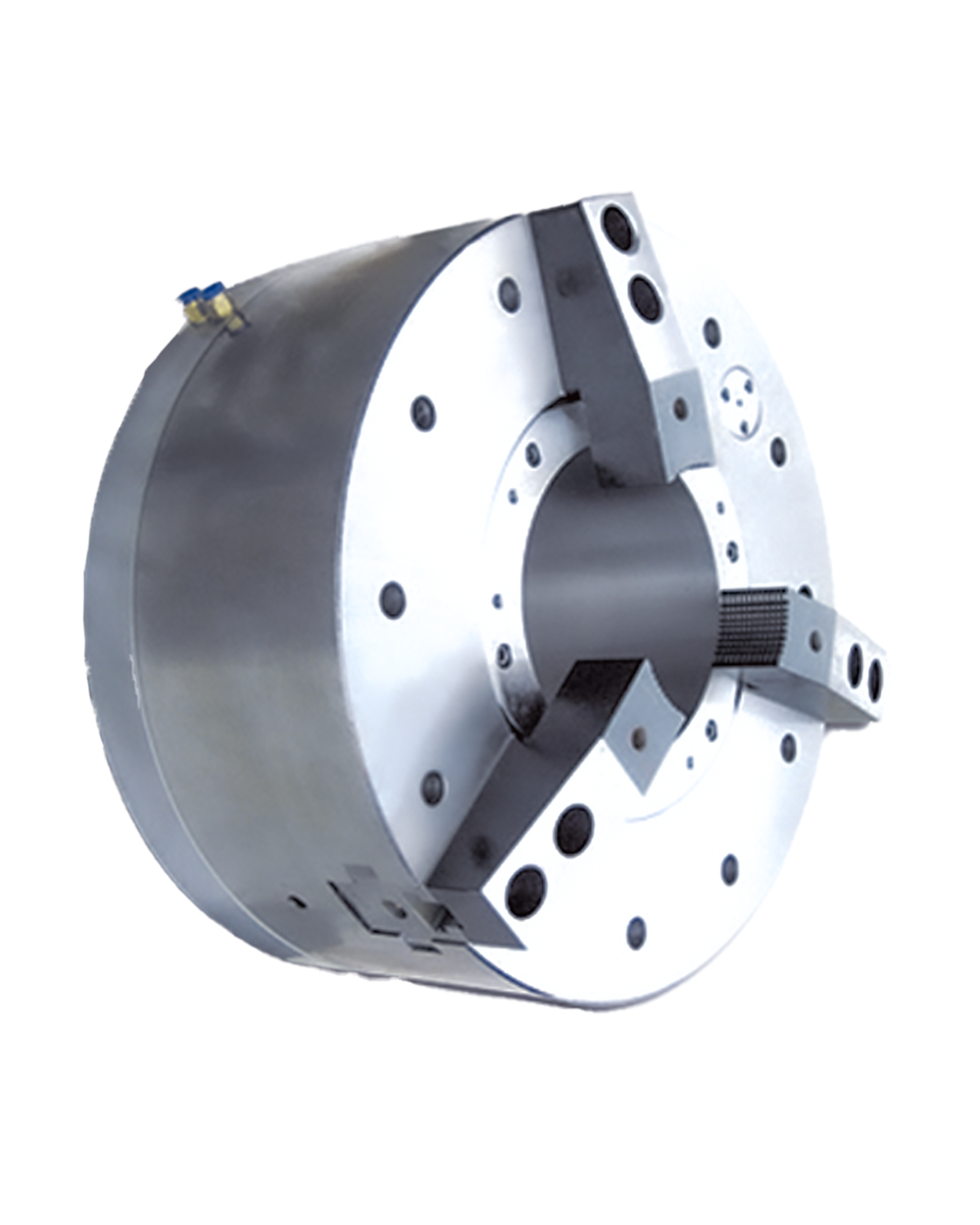

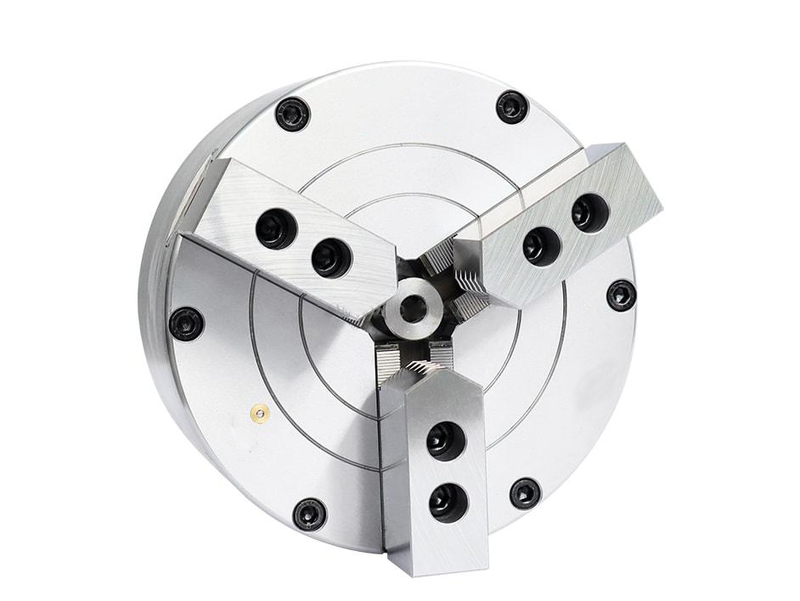

Pneumatic Chucks
Air-operated chuck solutions for repeatable clamping, including solid, through-hole and front-mounted configurations.

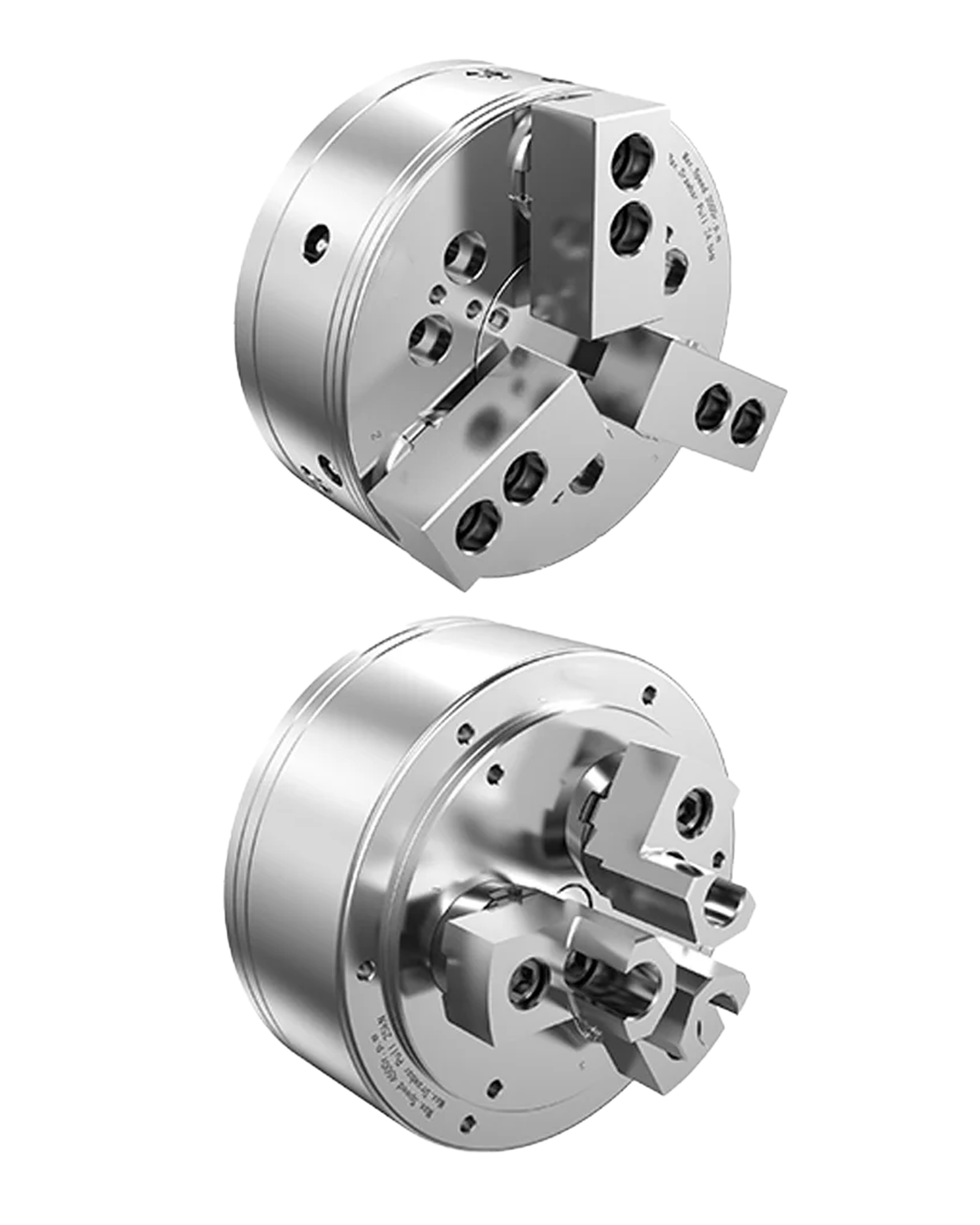

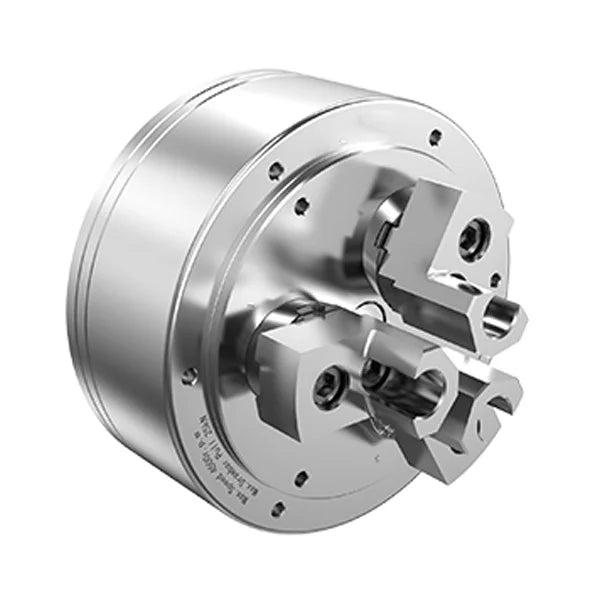

Specialized Power Chucks
Specialized chuck solutions for pull-back, compensating, face-clamping, ball-lock and other non-standard CNC workholding applications.
Clamping Head Systems
Clamping heads and clamping head chucks for repeat workholding, thin-wall parts and surface-sensitive clamping.

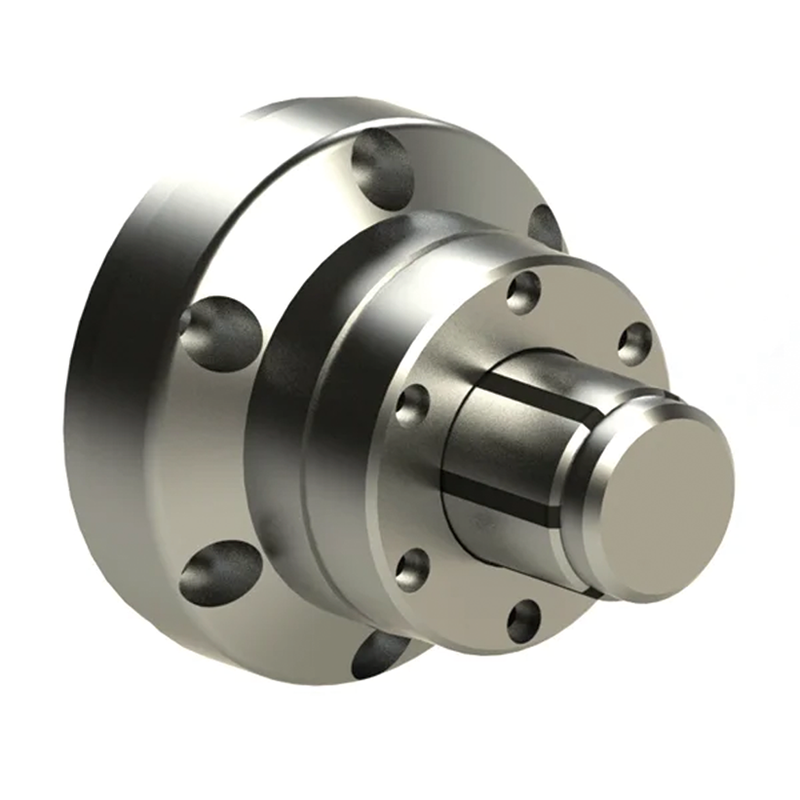

Expanding Mandrels
Internal expanding mandrels and segmented clamping systems for through-hole, blind-hole and internal clamping applications.

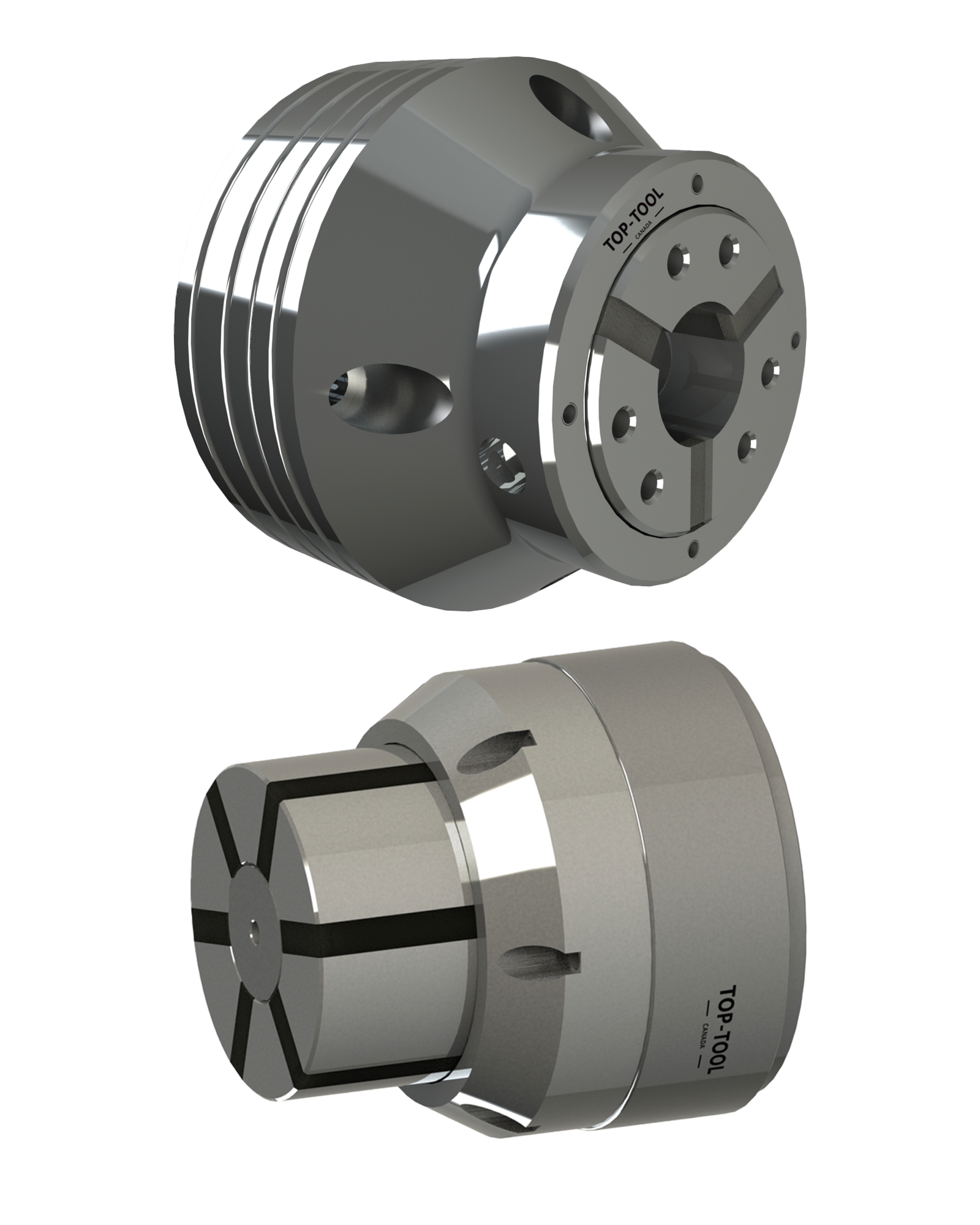

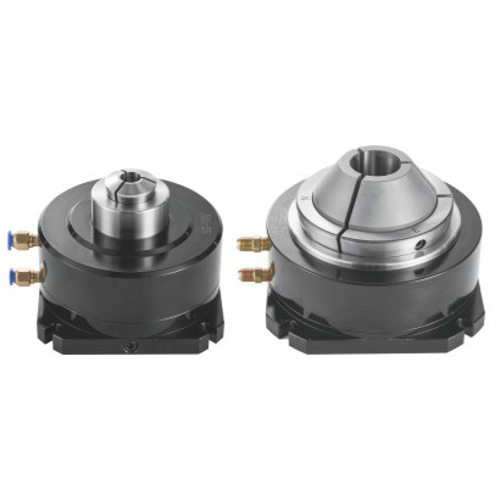

Collet Chucks
Collet chuck configurations for CNC workholding and fixture applications, including rotary and fixed setups.

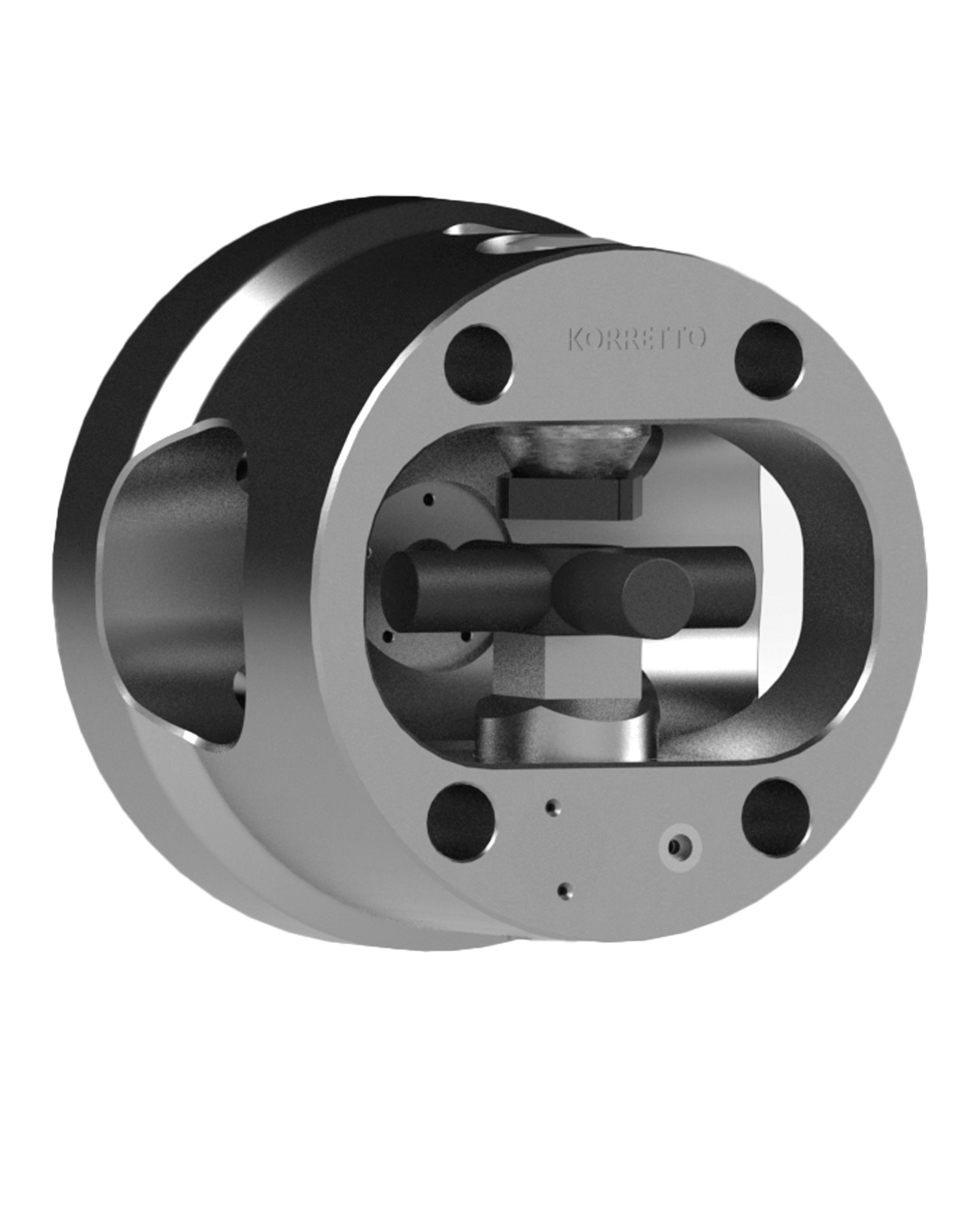

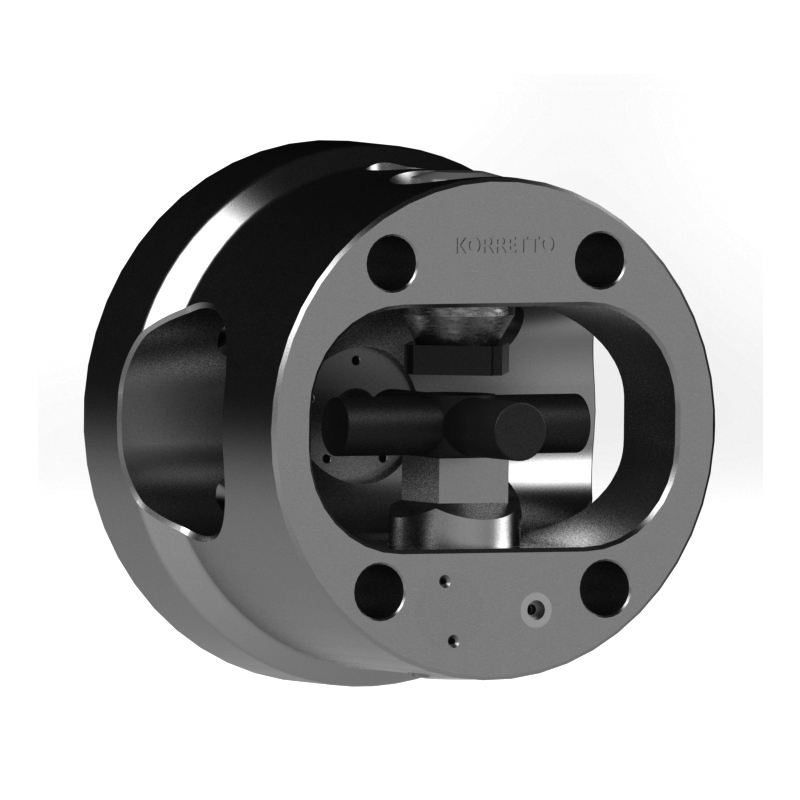

Indexing Chucks
Indexing chuck solutions for workpieces that require clamping and repeated angular repositioning during machining.

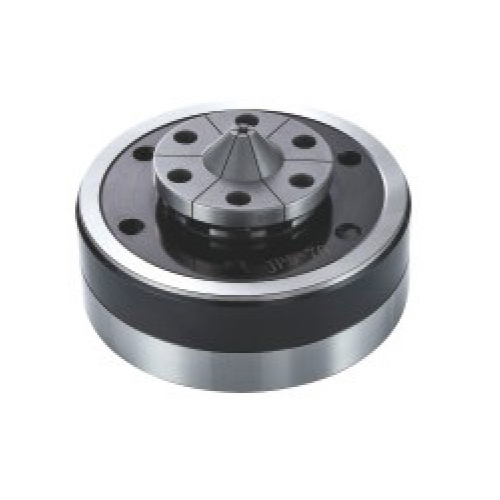

Diaphragm Chucks
Diaphragm chucks, diaphragm collets and passive diaphragm chuck products for precision workholding applications.

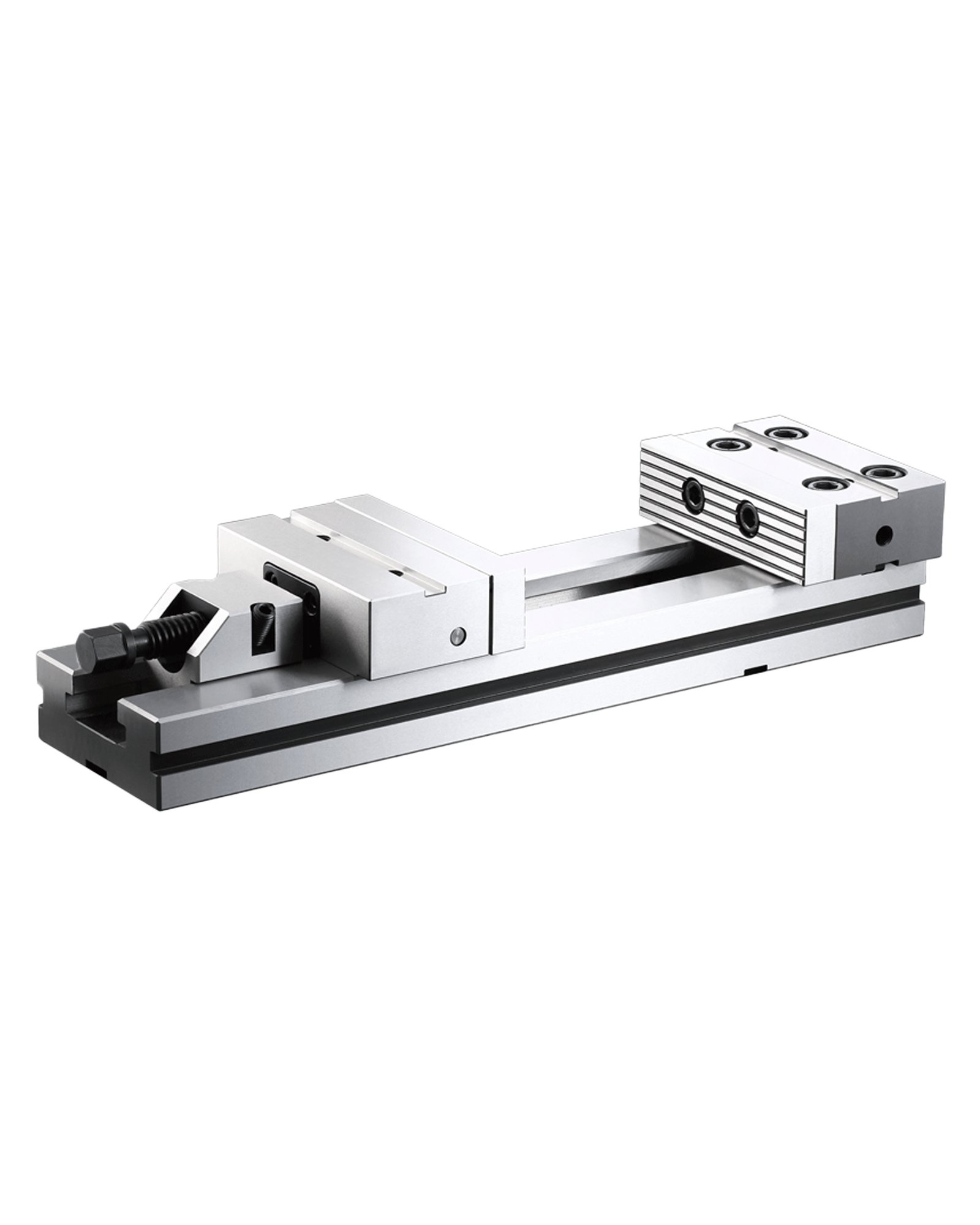

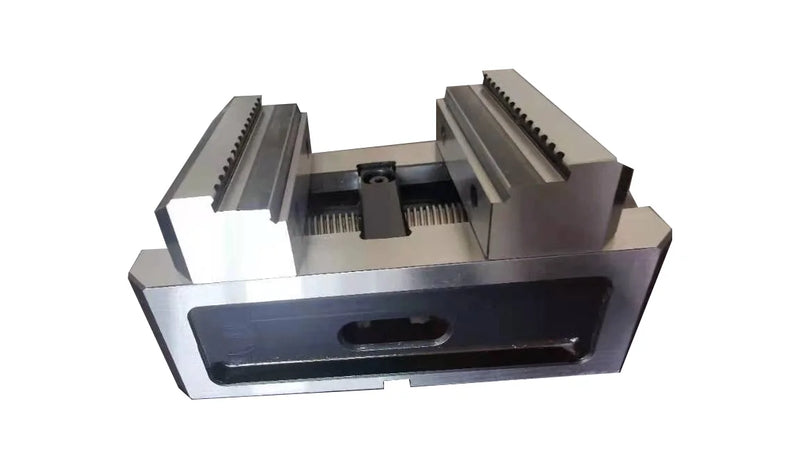

Machine Vises
Precision machine vises for milling, drilling and machining center workholding, including 5-axis and standard vise models.

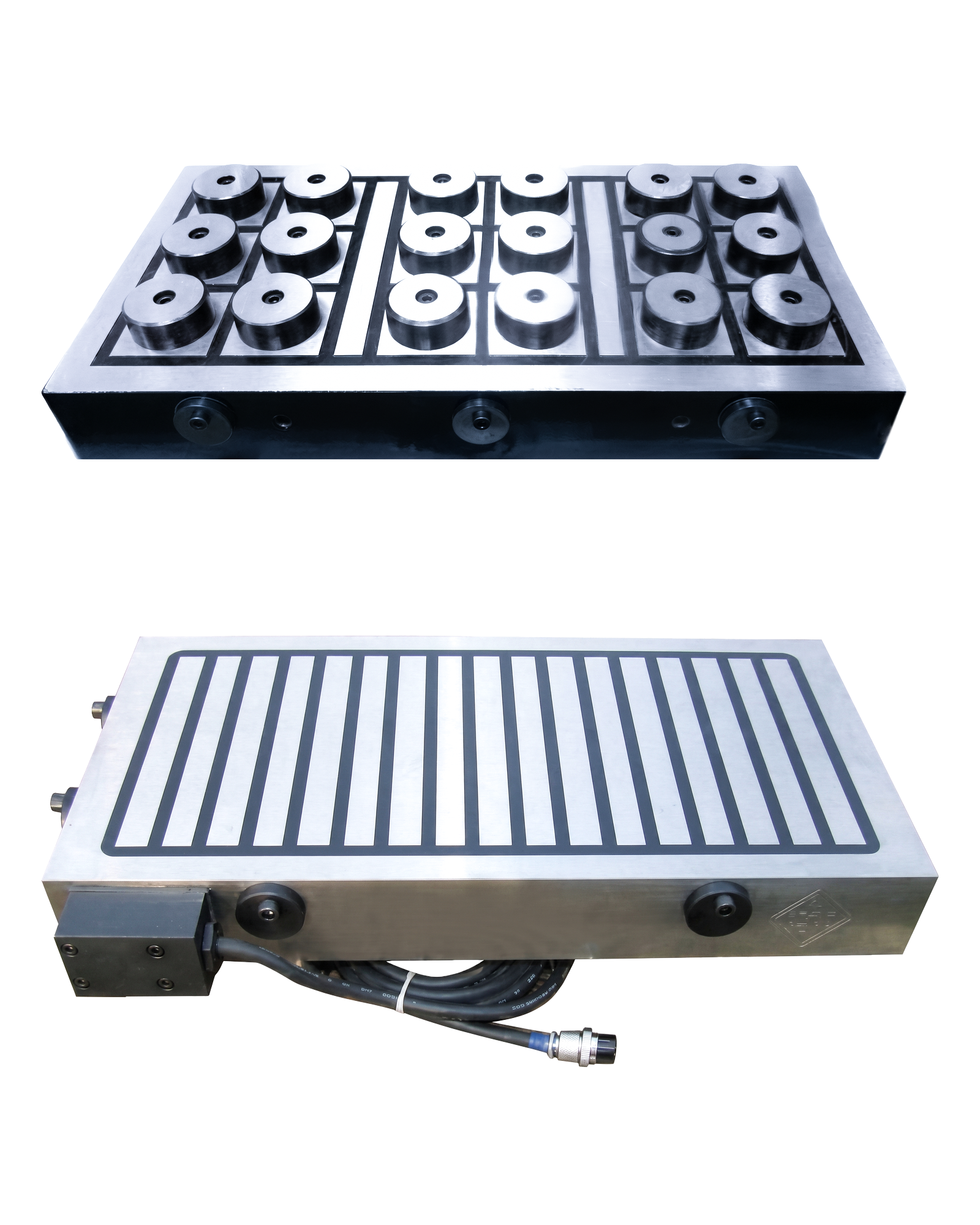

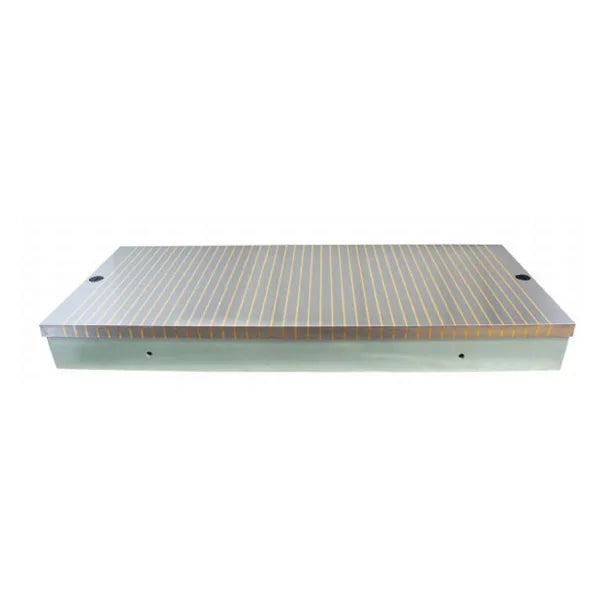

Magnetic Chucks
Magnetic workholding products for grinding and machining setups, including permanent and electromagnetic options.

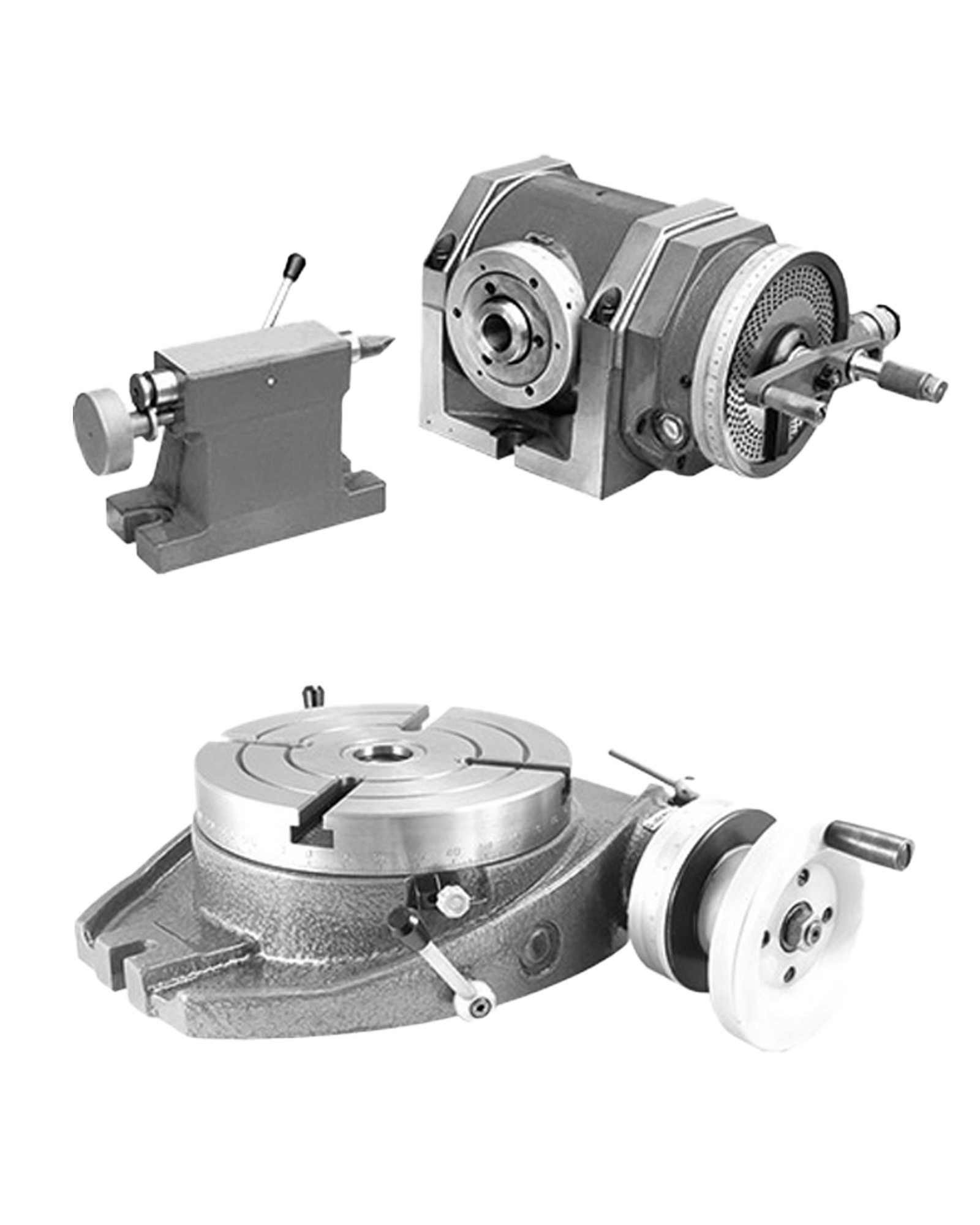

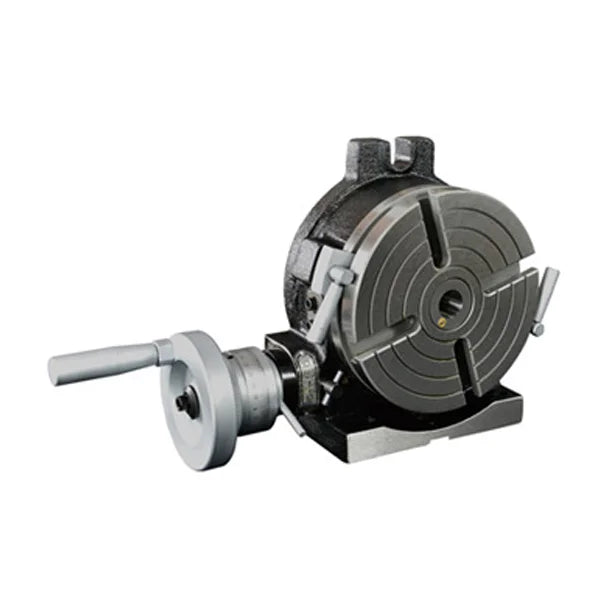

Rotary Tables
Rotary tables for milling, indexing and angular positioning setups, including horizontal-vertical and tilting models.

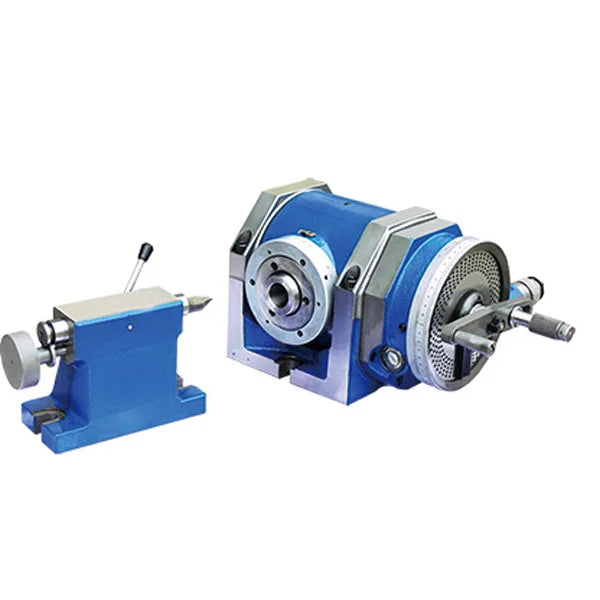

Dividing Heads
Dividing heads and indexing devices for controlled angular positioning, milling setups and repeated workpiece orientation.

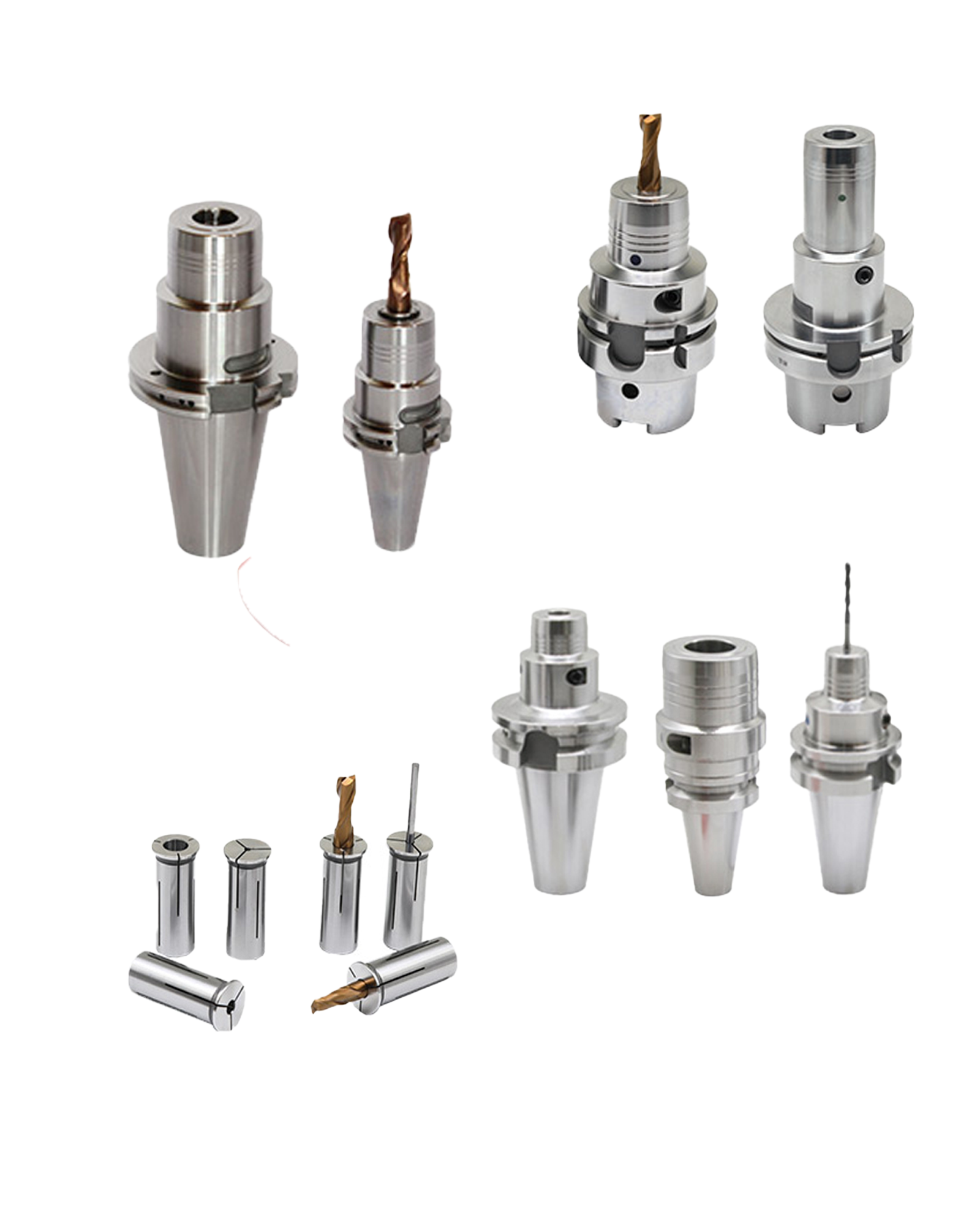

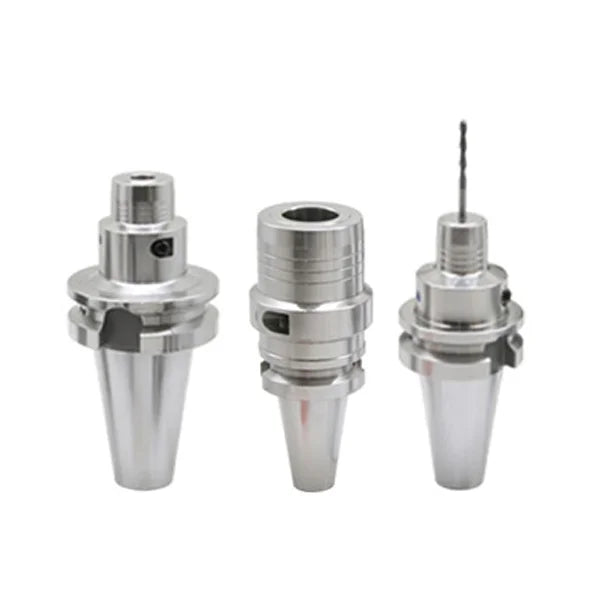

Tool Holders
CNC tool holders and hydraulic toolholding products for machining center and lathe applications.

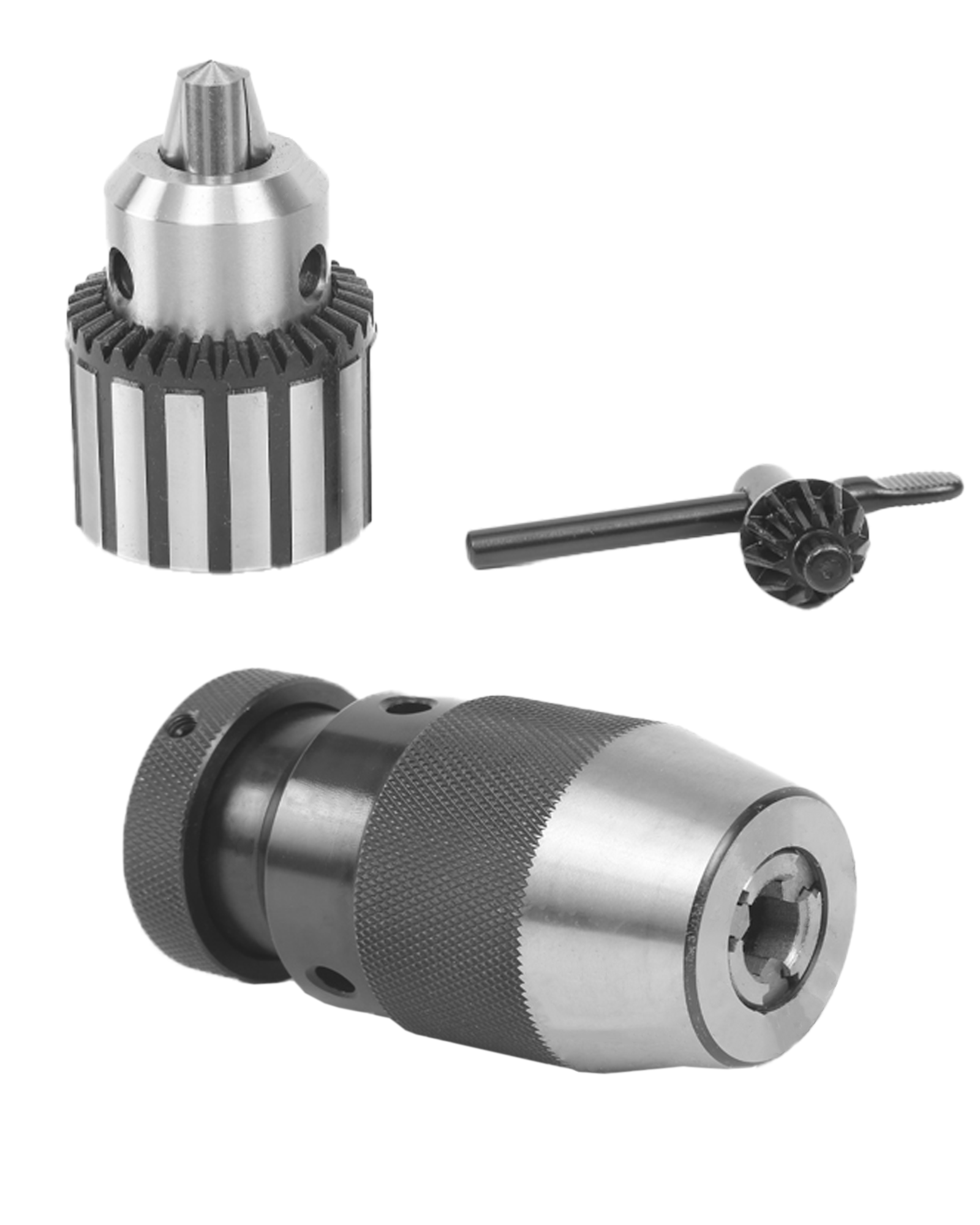

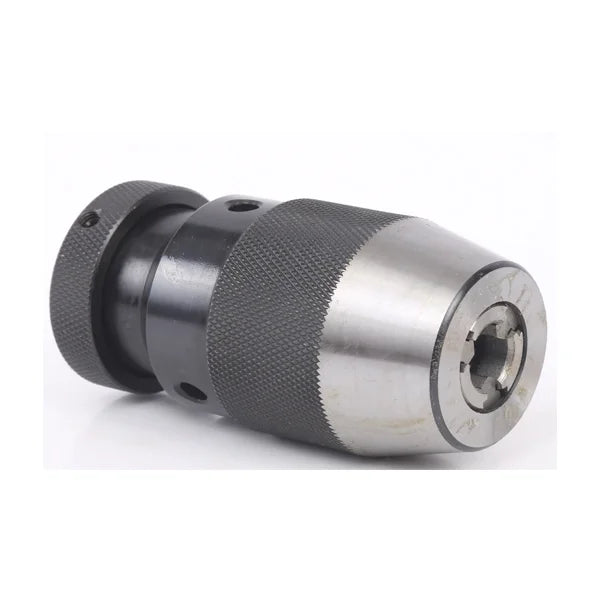

Drill Chucks
Keyed and keyless drill chucks for drilling machines, milling machines and machine tool applications.

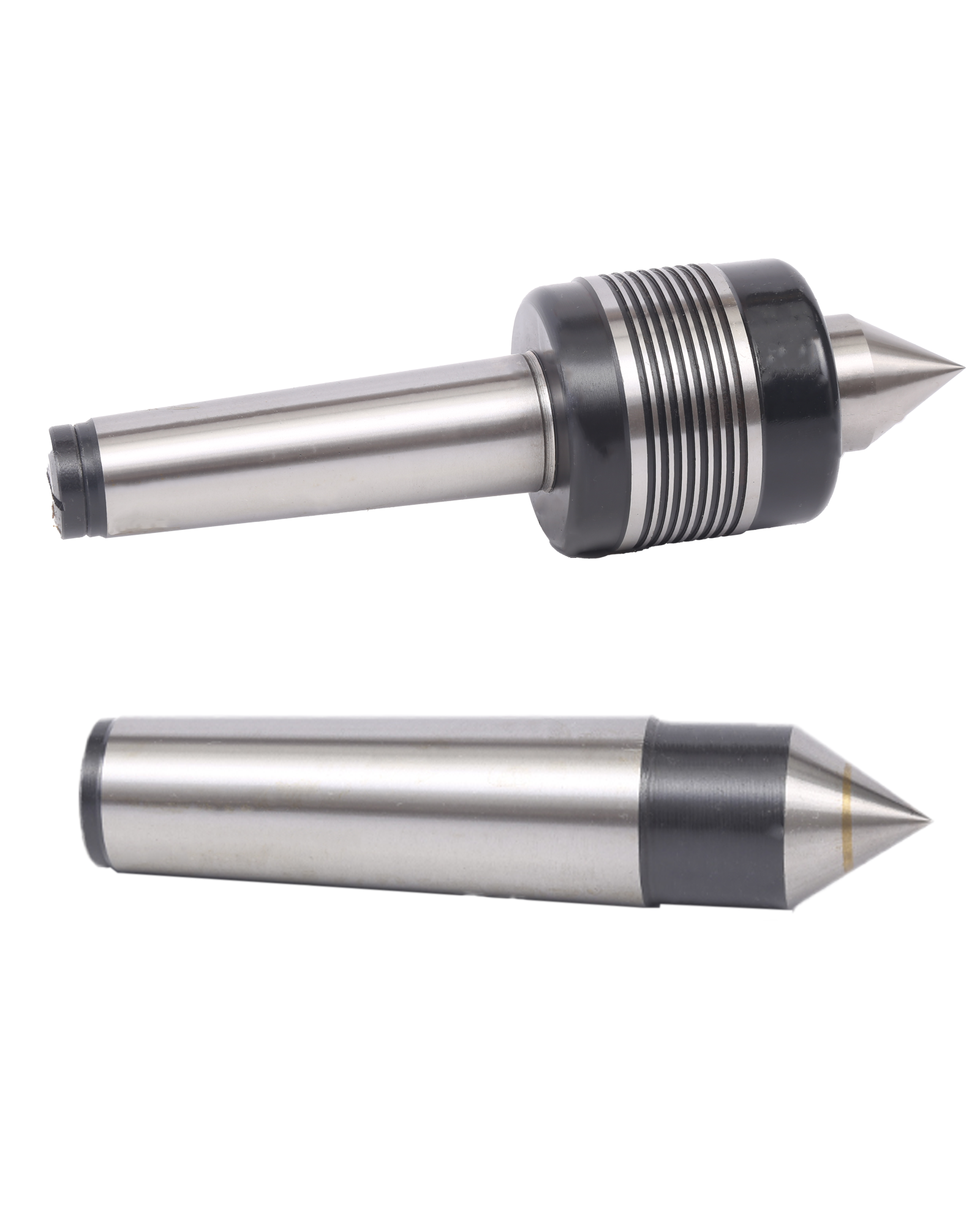

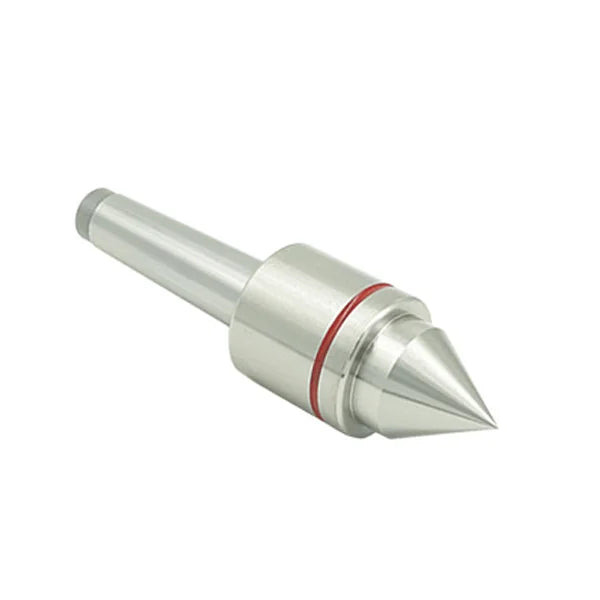

Lathe Centers
Live centers, dead centers and tailstock support products for turning and shaft support applications.
Technical FAQ
Machine Tool Accessory FAQ
How do I choose the right machine-tool accessory for my application?
Start with the workpiece, machine and machining process. Confirm the workpiece shape, dimensions, material, locating surfaces and surfaces that must remain accessible. Then check the machine spindle, table or mounting interface, available installation space and actuation method. Finally, consider clamping direction, required repeatability, cutting load, production quantity and whether the part will be loaded manually or automatically.
What information should I provide for product selection?
For accurate selection, provide the workpiece drawing, machine make and model, spindle or table interface, required clamping diameter or workpiece size, machining process, production quantity and any special accuracy or loading requirements. Photos of the current setup can also be helpful when reviewing replacement or retrofit applications.
Can TOP-TOOL confirm whether a chuck, vise or accessory fits my machine?
Yes. For products where machine compatibility is important, TOP-TOOL can review spindle nose details, mounting dimensions, drawbar or hydraulic-cylinder requirements, machine-table dimensions and available clearance before quotation. Providing the machine model and interface drawing helps reduce the risk of selecting an incompatible configuration.
When should I use a jaw chuck, collet chuck, clamping head or expanding mandrel?
Jaw chucks are versatile for general turning and a wide range of workpiece shapes. Collet chucks are commonly used for compact, repeatable clamping of round parts. Clamping head systems provide broad circumferential contact and are useful for repeat production, thin-wall parts and surface-sensitive workpieces. Expanding mandrels locate and clamp from the internal bore when the outside diameter must remain accessible for machining.
What should I consider when selecting workholding for thin-wall or precision parts?
Thin-wall and precision parts often require careful control of clamping force and contact area to reduce deformation. Important factors include workpiece wall thickness, clamping length, locating method, required concentricity or repeatability, machining load and whether the part is finished or semi-finished at the clamping surface. Clamping heads, diaphragm chucks and other application-specific systems may be appropriate depending on the part geometry.
Can TOP-TOOL design custom machine-tool workholding?
Yes. If a standard chuck, vise, mandrel or clamping system does not meet the application, TOP-TOOL can review the workpiece drawing and machine information to develop an application-specific solution. Custom projects can include special power chucks, expanding mandrels, fixture plates, multi-station workholding, locating systems and integrated pneumatic or hydraulic fixtures.
What is a manual lathe chuck?
A manual lathe chuck is a workholding device adjusted by the operator to clamp a workpiece for turning or related machining operations.

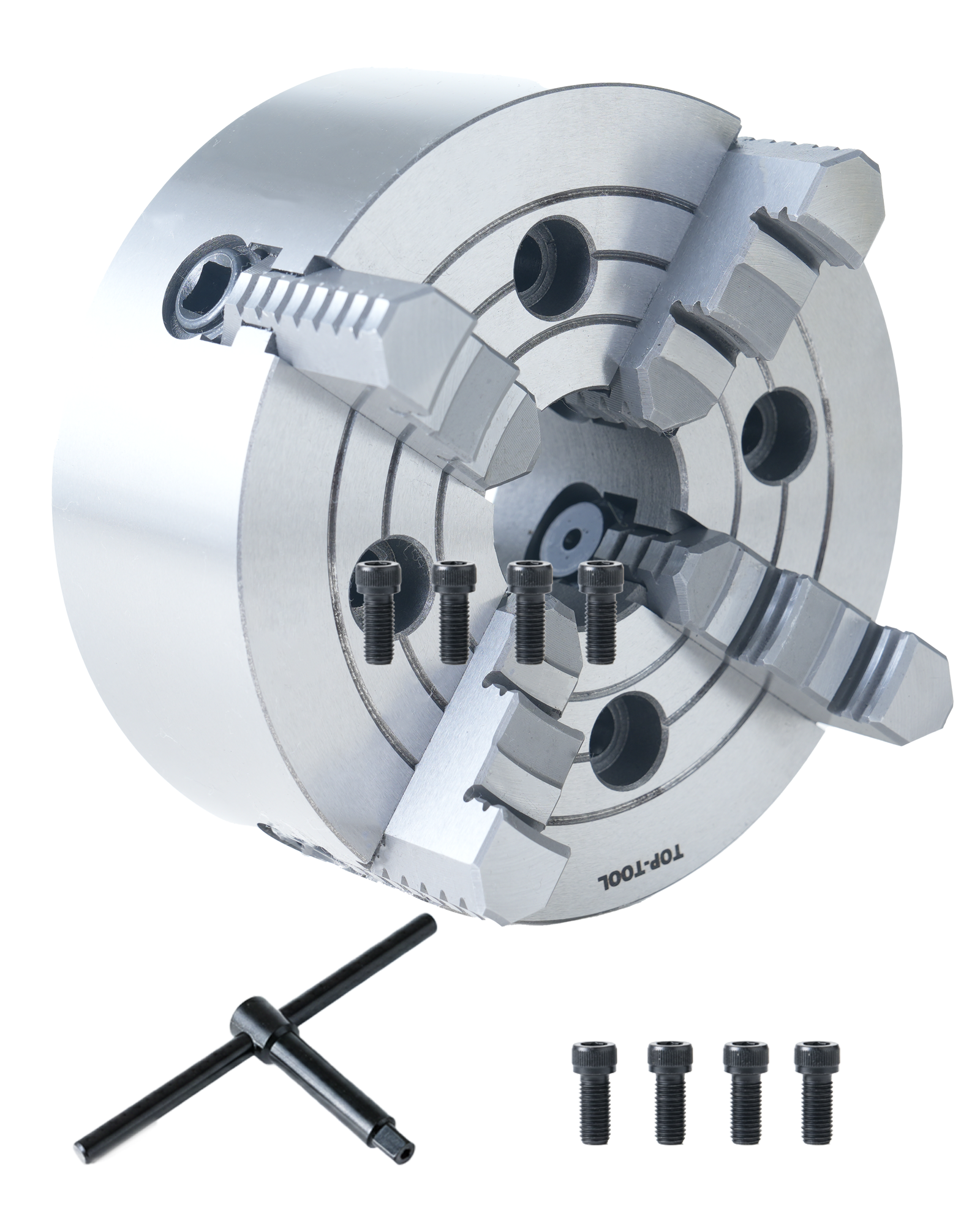

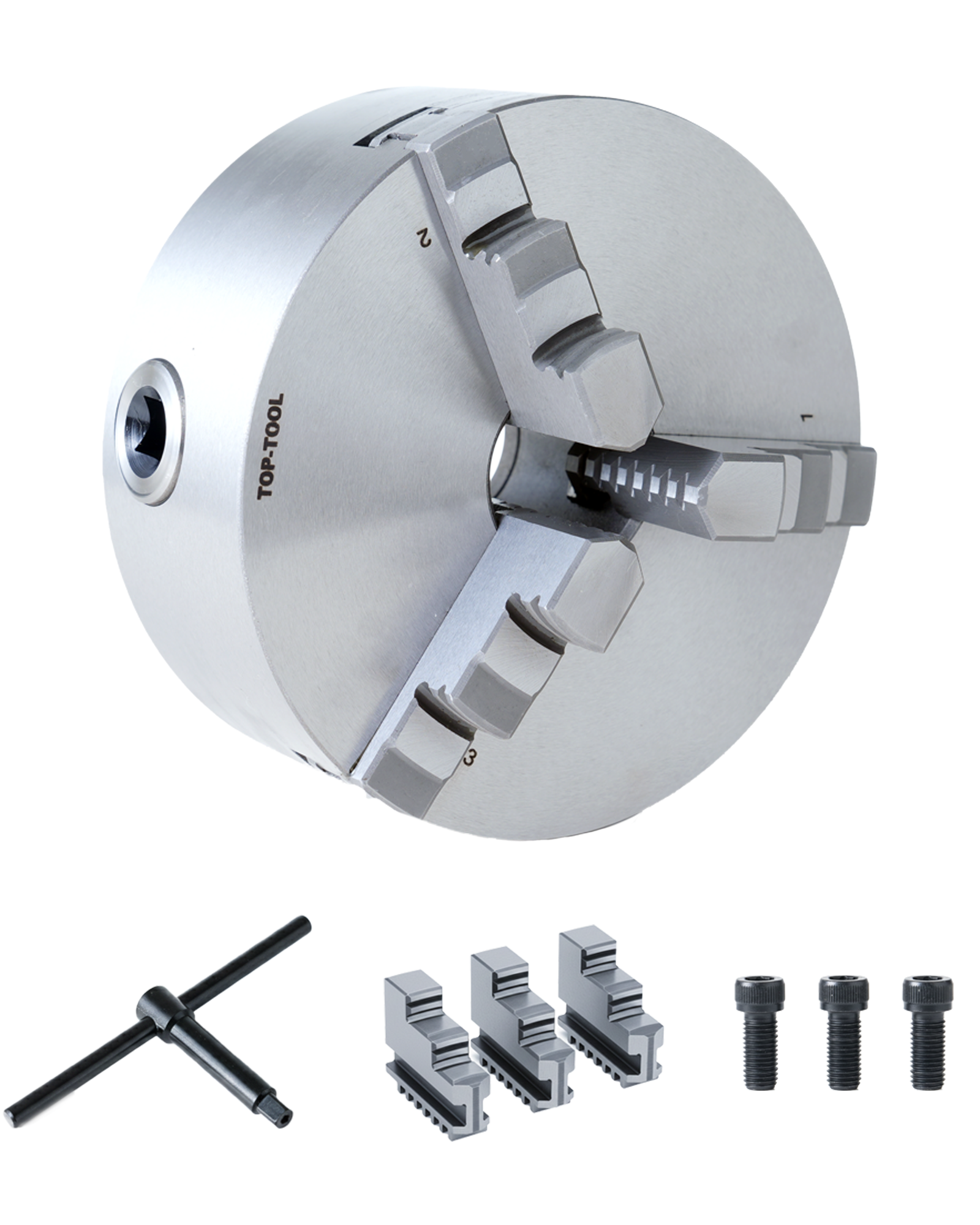

What is the difference between a 3-jaw chuck and a 4-jaw independent chuck?
A 3-jaw self-centering chuck moves its jaws together and is commonly used for round workpieces. A 4-jaw independent chuck allows each jaw to be adjusted separately for irregular, square, rectangular or offset workpieces.
When should I choose a Camlock chuck?
Choose a Camlock chuck when the machine spindle uses a compatible Form D short-taper Camlock interface. Confirm the required interface size before ordering.
What is a plain-back chuck?
A plain-back chuck is selected for a compatible backing plate or mounting arrangement. The chuck size and mounting dimensions should be checked against the machine before purchase.
How do I choose the correct chuck size?
Check the workpiece diameter, required clamping range, machine spindle interface, available installation space and machine capacity.
Can I request help before ordering?
Yes. Submit the machine model, spindle information, workpiece dimensions and intended machining process through the Request a Quote page.
Machine Tool Accessory Selection Overview
| Product Line | Best For | Typical Use | Key Selection Checks |
|---|---|---|---|
| Manual Chucks | Flexible manual lathe setups | General turning, round parts, irregular or offset workpieces | Jaw type, chuck size, clamping range and spindle mount |
| Hydraulic Chucks | Repeat CNC turning and automated clamping | Bar stock, tubes, shafts, blanks and production turning | Jaw count, hollow/solid design, spindle nose, drawbar, cylinder and clamping force |
| Pneumatic Chucks | Air-operated repeated clamping | Rotary or fixed workholding, production fixtures and automation | Rotary/fixed type, through-hole requirement, air supply and workpiece shape |
| Collet Chucks | Compact concentric clamping | Round parts, repeated loading, rotary and fixed fixtures | Collet type, clamping diameter, actuation and pull-back/fixed configuration |
| Specialized Power Chucks | Non-standard clamping problems | Pull-back, compensating, face-clamping, ball-lock and pipe-thread applications | Locating method, clamping direction, workpiece shape, drawbar stroke and machine interface |
| Diaphragm Chucks | Precision and low-deformation clamping | Thin-wall parts, finishing and repeat-position applications | Chuck/collet type, clamping diameter, workpiece stiffness, actuation and required repeatability |
| Clamping Head Systems | Broad-contact OD clamping | Shafts, sleeves, thin-wall and surface-sensitive parts | Workpiece shape, diameter, tolerance, clamping length, locating stop and compatible chuck |
| Expanding Mandrels | Internal bore clamping and location | Rings, sleeves, gears and parts requiring full OD access | Blind/through bore, bore diameter, tolerance, wall thickness, contact length and locating face |
| Indexing Chucks | Repeated angular repositioning while clamped | Multi-side turning and indexed machining | Index angle, number of positions, workpiece geometry, spindle interface and clamping method |
| Tool Holders | Precision cutter holding | Drilling, finishing, roughing and CNC machining-center operations | Spindle interface, tool shank, clamping diameter, gauge length and machining operation |
| Lathe Centers | Tailstock and shaft support | Turning, grinding, heavy parts and high-speed shaft work | Morse taper, workpiece load, RPM, point geometry and tool clearance |
| Drill Chucks | General and precision drilling | Drill presses, milling machines and machine-tool drilling | Keyed/keyless type, capacity, mount, rotation and required precision |
| Magnetic Chucks | Flat ferromagnetic workholding | Surface grinding, rotary grinding and selected machining applications | Magnet type, pole layout, workpiece material/thickness, size and machining process |
| Machine Vises | Milling and multi-axis workholding | General milling, 5-axis machining, multiple-part and self-centering setups | Vise type, jaw width, opening, workpiece size, mounting and tool clearance |
| Rotary Tables | Controlled angular positioning | Horizontal, vertical, tilting and multi-side machining | Table diameter, center bore, tilt range, workpiece load and indexing requirement |
| Dividing Heads | Manual and precision indexing | Flats, gears, angular divisions and milling setups | Center height, spindle interface, indexing method, division range and workpiece size |
Need Help Selecting the Right Machine Tool Accessory?
Send us your workpiece drawing, machine model, spindle or table interface, and machining requirements. We can review the application and recommend a suitable chuck, clamping system, tool holder, vise, rotary table or other machine-tool accessory before quotation.
