Milling Indexing Accessories

Dividing Heads

Dividing heads and indexing plates are used for angular positioning, indexing and repeated workpiece orientation on milling machines. TOP-TOOL options include F11 Series universal dividing heads, horizontal and vertical super indexing plates, and simple horizontal and vertical indexing plates. Selection should be based on center height, chuck diameter, through-hole requirement, jaw range, indexing positions, workpiece size and machine table layout.

Browse Products Request a Quote

Browse Dividing Heads by Type

F11 Universal Dividing Heads

F11 Universal Dividing Heads

Universal dividing heads for milling setups where center height, indexing requirements and workpiece support must be checked.

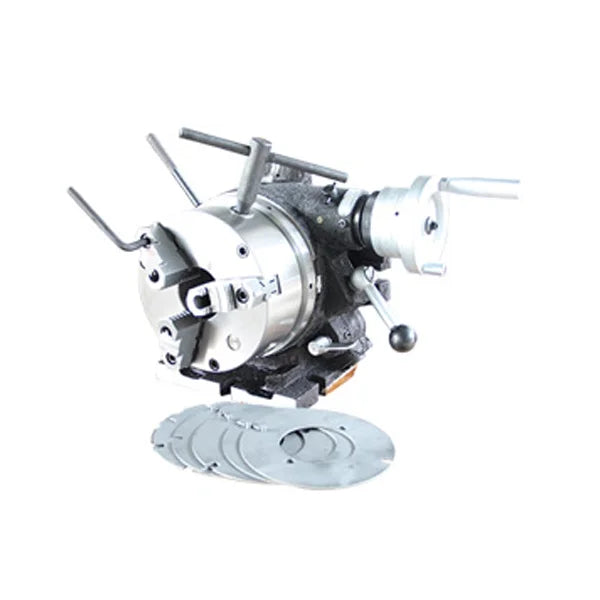

Super Indexing Plates

Super Indexing Plates

Horizontal and vertical super indexing plates for compact angular positioning and repeated indexing setups.

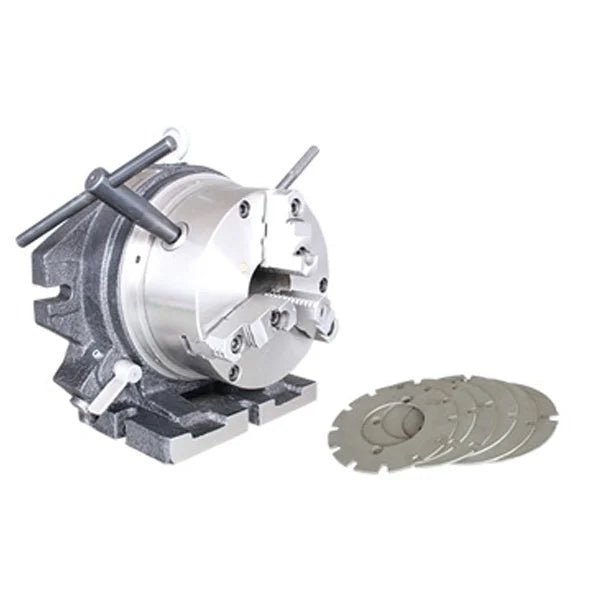

Simple Indexing Plates

Simple Indexing Plates

Simple horizontal and vertical indexing plates for basic angular positioning and general milling workholding.

Available Dividing Head Products

Use the product list below to review model-level RFQ dividing head and indexing plate products. Each product page includes the available model size and specification data for quotation review.

Skip to results list

Filters

7 items

Filter

  • CC-8 Simple Horizontal and Vertical Indexing Plate for milling indexing setup

    CC-8 | Simple Horizontal and Vertical Indexing Plate

    CC-8 | Simple Horizontal and Vertical Indexing Plate
    View Details

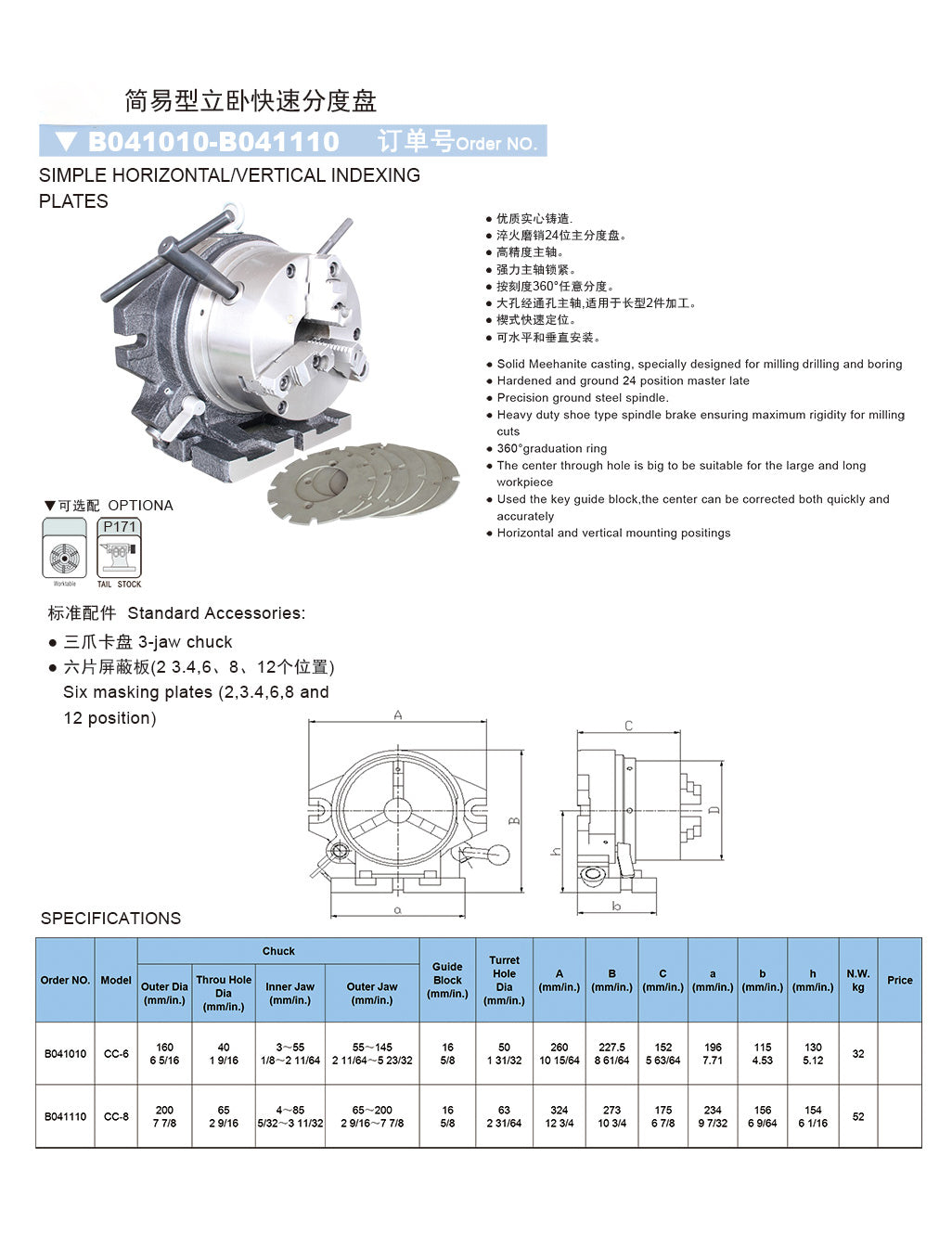

  • CC-6 Simple Horizontal and Vertical Indexing Plate for milling indexing setup

    CC-6 | Simple Horizontal and Vertical Indexing Plate

    CC-6 | Simple Horizontal and Vertical Indexing Plate
    View Details
  • CS-8 Horizontal and Vertical Super Indexing Plate for milling indexing setup

    CS-8 | Horizontal and Vertical Super Indexing Plate

    CS-8 | Horizontal and Vertical Super Indexing Plate
    View Details

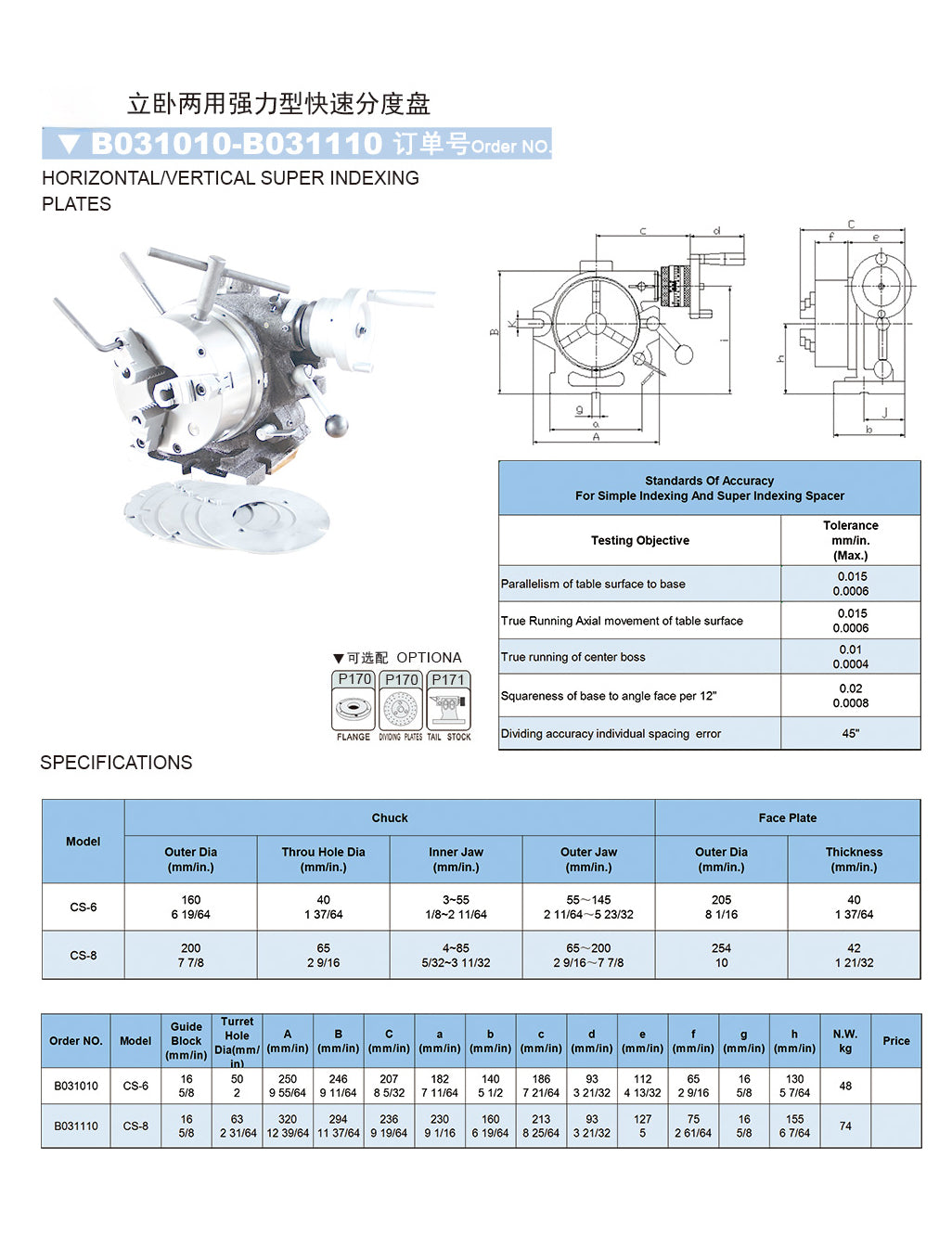

  • CS-6 Horizontal and Vertical Super Indexing Plate for milling indexing setup

    CS-6 | Horizontal and Vertical Super Indexing Plate

    CS-6 | Horizontal and Vertical Super Indexing Plate
    View Details
  • F11160A F11 Series Universal Dividing Head for milling indexing setup

    F11160A | F11 Series Universal Dividing Head

    F11160A | F11 Series Universal Dividing Head
    View Details
  • F11125A F11 Series Universal Dividing Head for milling indexing setup

    F11125A | F11 Series Universal Dividing Head

    F11125A | F11 Series Universal Dividing Head
    View Details

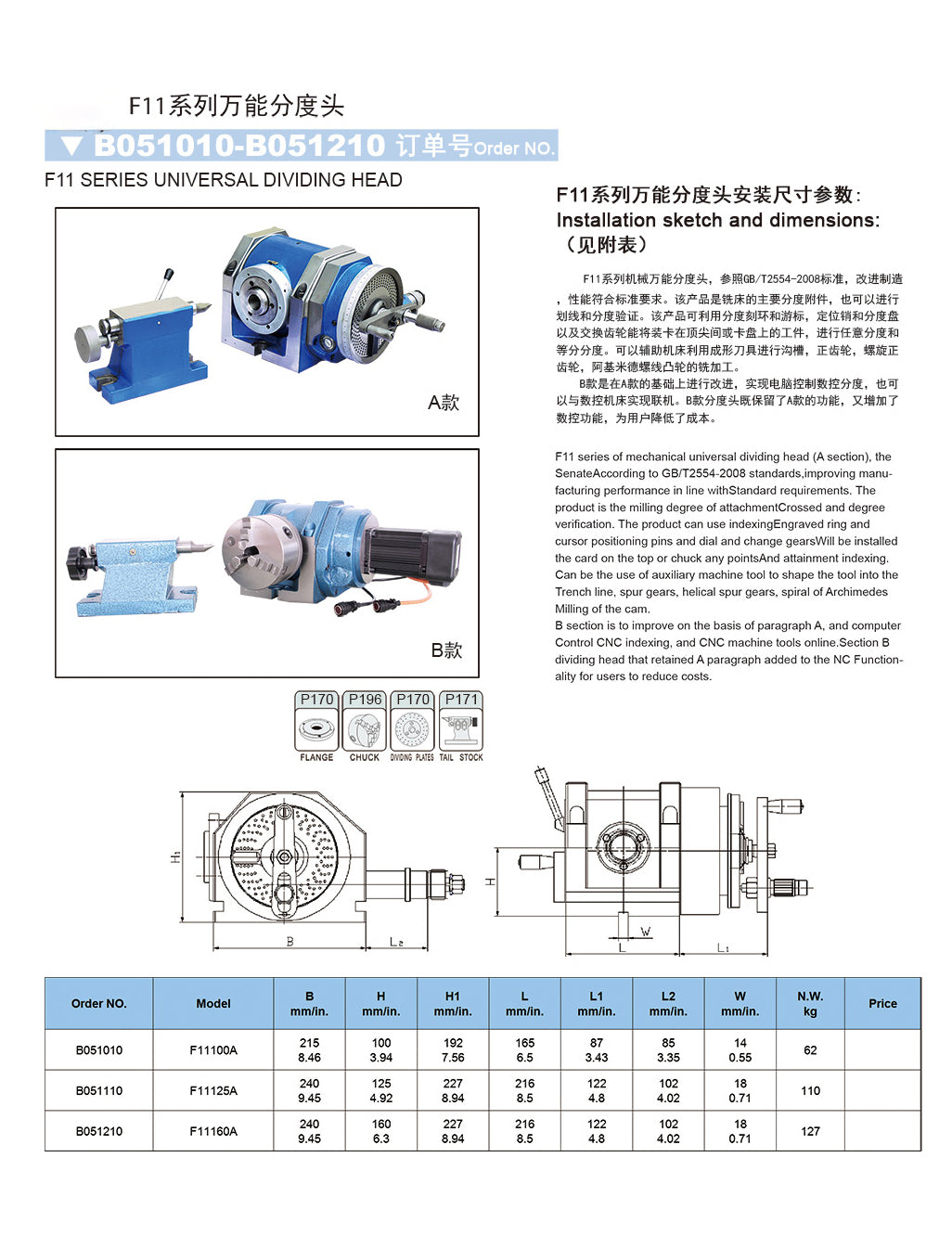

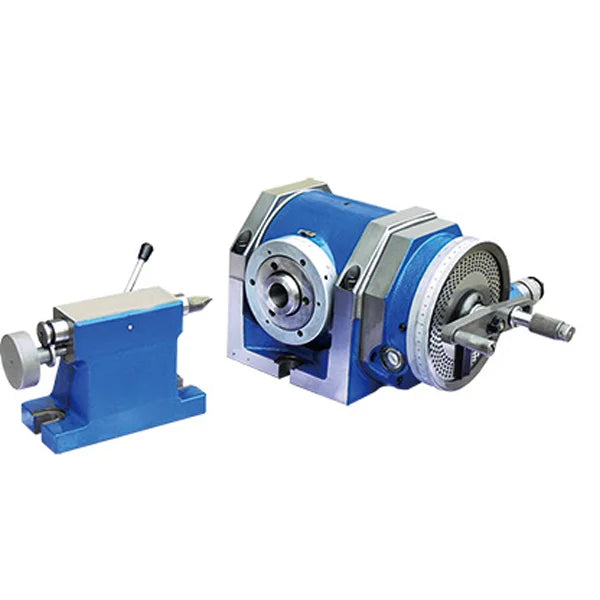

  • F11100A F11 Series Universal Dividing Head for milling indexing setup

    F11100A | F11 Series Universal Dividing Head

    F11100A | F11 Series Universal Dividing Head
    View Details

Dividing heads and indexing plates position workpieces at controlled angular intervals for milling, drilling and toolroom setups. TOP-TOOL lists F11 universal dividing heads, super indexing plates and simple indexing plates as model-level RFQ products.

How to Select Dividing Heads

Confirm center height, chuck or spindle requirement, indexing angle or division count, workpiece size, tailstock need, machine table size and mounting layout.

Typical Applications

  • Angular indexing on milling machines
  • Hole pattern machining
  • Flats, slots and keyway-related setups
  • Small-batch gear or spline preparation
  • Toolroom and repair machining

Representative Products

Related TOP-TOOL Pages

Dividing Heads FAQ

What is Dividing Heads used for?

Dividing Heads is used for machine tool workholding, setup or accessory matching where the machine, interface and workpiece requirements must be checked before selection.

What information is needed for a quote?

Send the machine model, interface or mounting details, workpiece drawing or size, required model or range, quantity and application notes.

How do I choose between types or models?

Compare the machine interface, workpiece size, clamping or holding method, required clearance and model-level specifications. If the fit is uncertain, request RFQ review before ordering.

Is this category handled by RFQ or online purchase?

This category is normally handled as RFQ because final suitability depends on the actual machine, interface, workpiece and application details.

What related products should I compare?

Compare the related TOP-TOOL pages listed on this collection page, especially neighboring workholding or machine tool accessory categories that share machine-interface or setup requirements.

Are listed specifications final compatibility guarantees?

No. Listed data is for model identification and quotation review. Final suitability should be confirmed against the actual machine, workpiece, setup and operating conditions.

Request a Quote with your machine, workpiece, product model or application details.

Dividing Head Type Comparison

Product Type Indexing Setup Typical Use Selection Note
F11 Universal Dividing Head Universal indexing Milling, angular positioning and repeated indexing Confirm center height, chuck size, through-hole and indexing requirements
Super Indexing Plate Horizontal / vertical indexing Compact repeated angular positioning Confirm workpiece size, indexing positions and machine table layout
Simple Indexing Plate Horizontal / vertical indexing Basic angular positioning and general milling workholding Confirm required indexing positions and mounting dimensions

Request a Quote for Dividing Heads

Dividing heads and indexing plates should be selected according to the required indexing method, center height, workpiece size and machine table setup. Send your machine and application details for selection review.

Request a Quote Contact Technical Support
