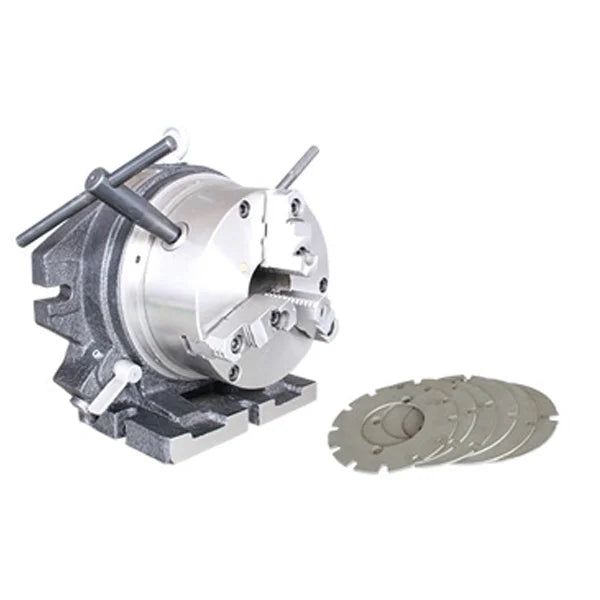

CC-8 | Simple Horizontal and Vertical Indexing Plate
The CC-8 simple horizontal and vertical indexing plate is a model-level RFQ product for basic indexing and angular positioning setups. It is selected when the workpiece can be clamped within the available chuck and jaw range and the required indexing layout can be checked against the machine table.

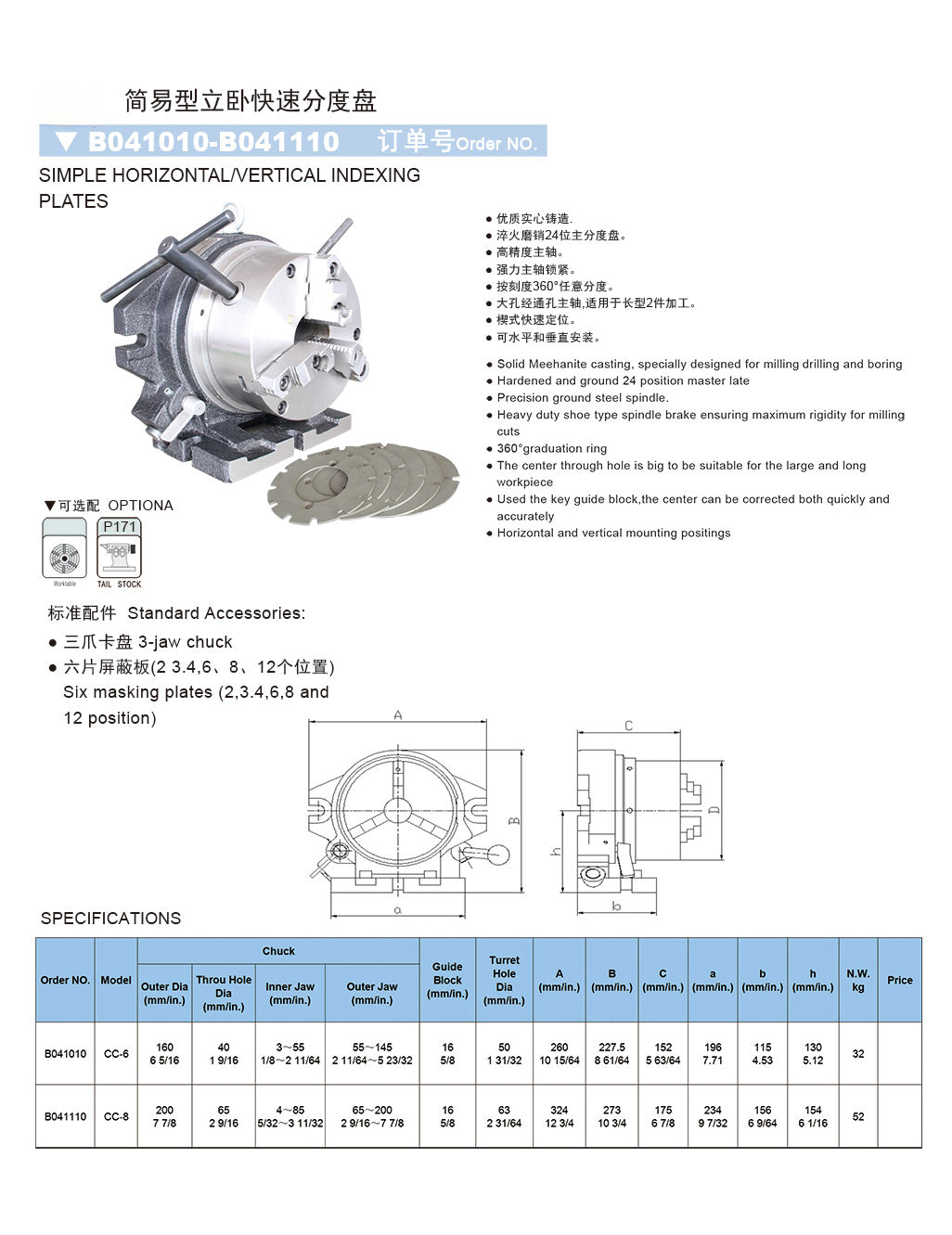

Technical Specifications
| Order No. | B041110 |
|---|---|
| Model | CC-8 |
| Chuck Dia. | 200 / 7 7/8 |
| Through Hole Dia. | 65 / 2 9/16 |
| Inner Jaw Clamping | 4~85 / 5/32~3 11/32 |
| Outer Jaw Clamping | 65~200 / 2 9/16~7 7/8 |
| Guide Block | 16 / 5/8 |
| Turret Bore | 63 / 2 31/64 |
| A | 324 / 12 3/4 |
| B | 273 / 10 3/4 |
| C | 175 / 6 7/8 |
| a | 234 / 9 7/32 |
| b | 156 / 6 9/64 |
| h | 154 / 6 1/16 |
| Net Weight (kg) | 52 |
Selection Information
Before requesting a quote, confirm the workpiece diameter, through-hole requirement, jaw clamping range, indexing positions, machine table size and whether the setup will be used horizontally, vertically or both.
Typical Applications
- Basic indexing for milling operations
- Small and medium round or shaped workpieces
- Horizontal and vertical positioning setups
- Repeat angular positioning for machining operations
- General machine shop indexing work
What to Confirm Before Ordering
- Machine model and table size
- Workpiece diameter and clamping surface
- Required inner or outer jaw clamping range
- Through-hole requirement
- Indexing position and setup orientation
Related Resources
FAQ
What is the CC-8 simple indexing plate used for?
It is used for basic angular positioning and indexing work where the workpiece can be clamped within the available chuck and jaw range.
What information is needed for a quote?
Send the workpiece size, clamping diameter, through-hole requirement, indexing positions, machine table details and quantity.
When should a more advanced indexing device be considered?
A more advanced setup may be needed when the workpiece is heavy, the indexing sequence is complex, the required accuracy is high or the clamping condition is not stable enough for a simple indexing plate.
Request a Quote
Request a quote with your workpiece size, clamping range and indexing requirements.
