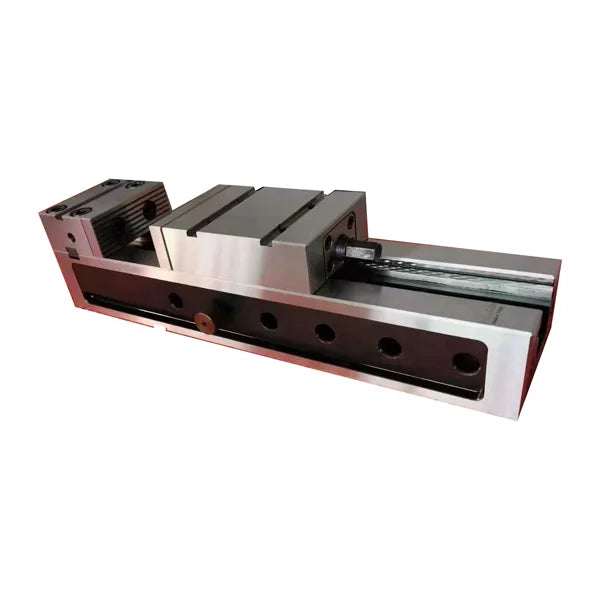

125x200 | Quick-Load Precision Vise
The 125x200 quick-load precision vise is a model-level RFQ product for milling and machining center workholding. It is selected when workpieces are changed frequently and the loading method, clamping range and table layout need to be reviewed before supply.

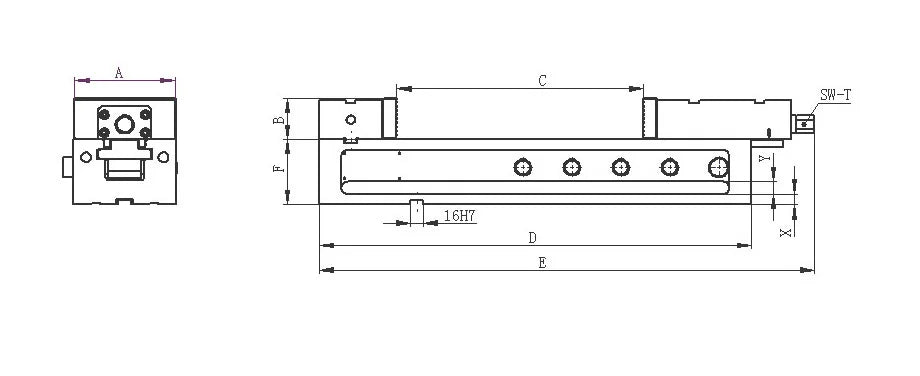

Technical Specifications
| Model | 125×200 |
|---|---|
| A | 125 |
| B | 50 |
| C | 200 |
| D | 430 |
| E | 507 |
| F | 80 |
| X | 13 |
| Y | 15 |
| T | 19 |
| Clamping Force | 33 kN |
| Weight | 34.8 kg |
Selection Information
Before requesting a quote, confirm the workpiece size, part change frequency, required clamping range, machine table size, mounting layout and whether the setup is for small-batch or repeat production.
Typical Applications
- Frequent part changes
- Small-batch milling operations
- Machining center workholding
- Repeat production setups
- Fixture layouts that require practical loading and unloading
What to Confirm Before Ordering
- Machine model and table size
- T-slot or mounting layout
- Workpiece dimensions and clamping surfaces
- Required clamping range and loading direction
- Quantity and expected setup method
Related Resources
FAQ
What is the 125x200 quick-load precision vise used for?
It is used in milling or machining center setups where workpieces are changed frequently and the loading method is an important part of the workholding process.
What information is needed for a quote?
Send the machine model, table size, workpiece dimensions, required clamping range, loading direction and quantity.
Is this vise suitable for all milling applications?
No. Suitability depends on workpiece size, machining load, clamping surfaces and machine table layout. The setup should be checked before ordering.
Request a Quote
Request a quote with your workpiece size, machine table details and loading requirements.
