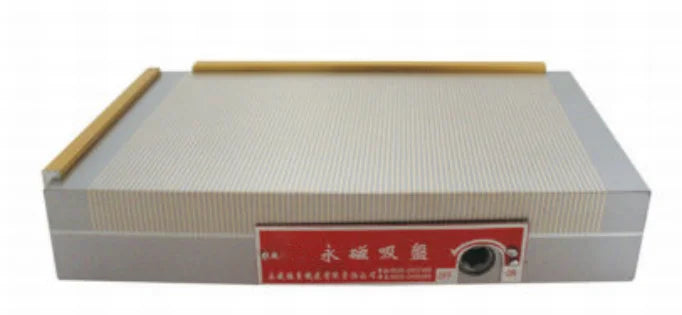

6"x6" | Fine Pole Permanent Magnetic Chuck
The 6"x6" fine pole permanent magnetic chuck is a model-level RFQ product for surface grinding and magnetic workholding. It is selected when smaller or thinner ferrous workpieces require magnetic holding and the chuck size, pole pattern, mounting method and workpiece contact area must be checked before supply.
Technical Specifications
| Inch Model | 6"*6" |
|---|---|
| Model | XM91 150*150 |

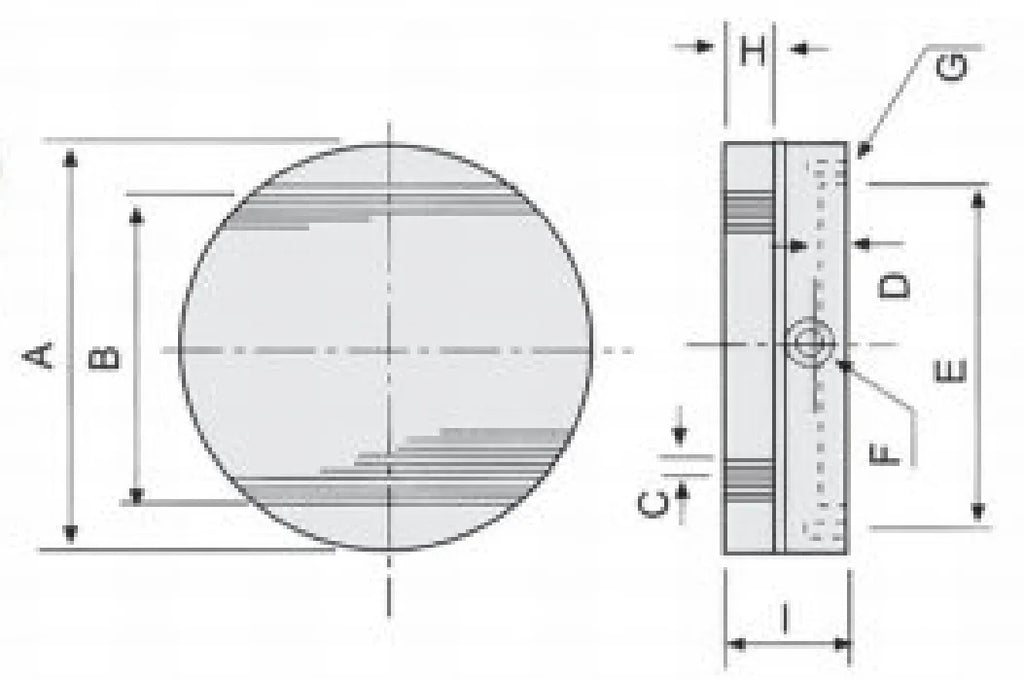

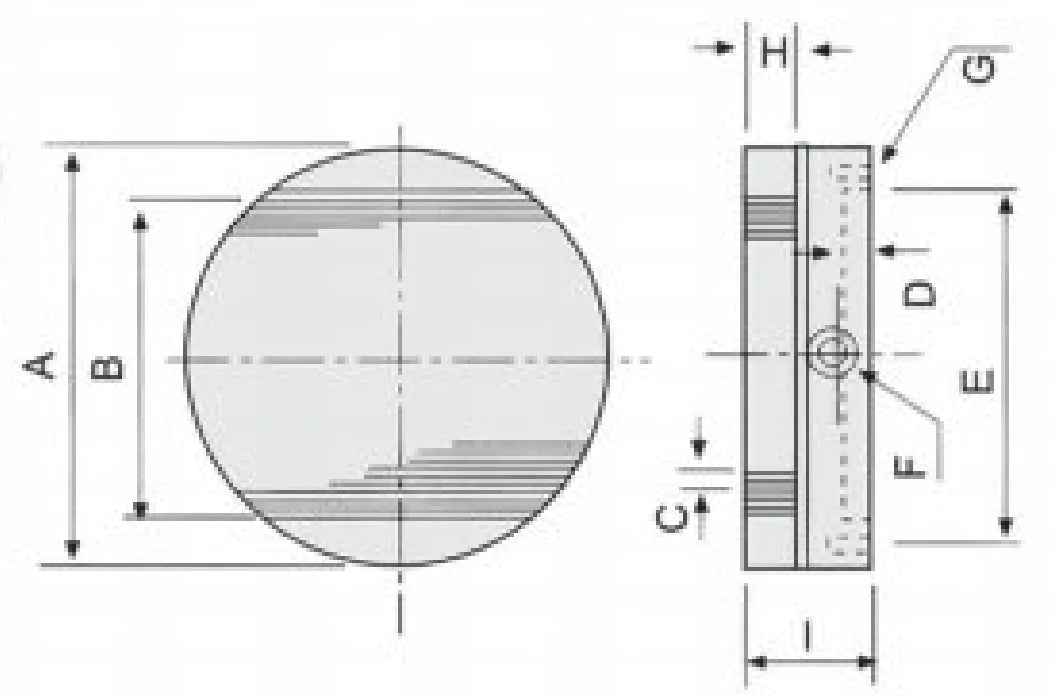

| Main Dimensions (mm) A | 150 |
| Main Dimensions (mm) B | 150 |
| Main Dimensions (mm) C | 18 |
| Main Dimensions (mm) D | 4 |
| Main Dimensions (mm) E | 10 |
| Main Dimensions (mm) F | 2.0(0.5+1.5) |
| Main Dimensions (mm) G | 45 |
| Net Weight (kg) | 9.4 |
Selection Information
Before requesting a quote, confirm the grinder or machine table size, required chuck size, workpiece material, contact area, pole spacing requirement, mounting method and grinding environment.
Typical Applications
- Surface grinding of ferrous workpieces
- Fine pole magnetic workholding
- Toolroom and repair grinding setups
- Small or medium workpieces where open top access is required
- Grinding setups where mechanical clamps would interfere with the work surface
What to Confirm Before Ordering
- Machine model and table size
- Required chuck size and mounting layout
- Workpiece material, thickness and contact surface
- Holding layout and operating environment
- Quantity and application details
Related Resources
FAQ
What is the 6"x6" fine pole permanent magnetic chuck used for?
It is used for magnetic workholding on grinding machines, especially when ferrous workpieces need to be held on a fine pole magnetic surface without mechanical clamps covering the top face.
What information is needed for a quote?
Send the machine model, table size, required chuck size, workpiece material, workpiece dimensions, mounting requirements and quantity.
Can this chuck hold non-ferrous materials?
No. Magnetic chuck holding depends on ferrous material response, contact area, surface condition, workpiece thickness and grinding load. Non-ferrous materials are not held directly by a magnetic chuck.
Request a Quote
Request a quote with your machine model, workpiece details and required fine pole permanent magnetic chuck size.
