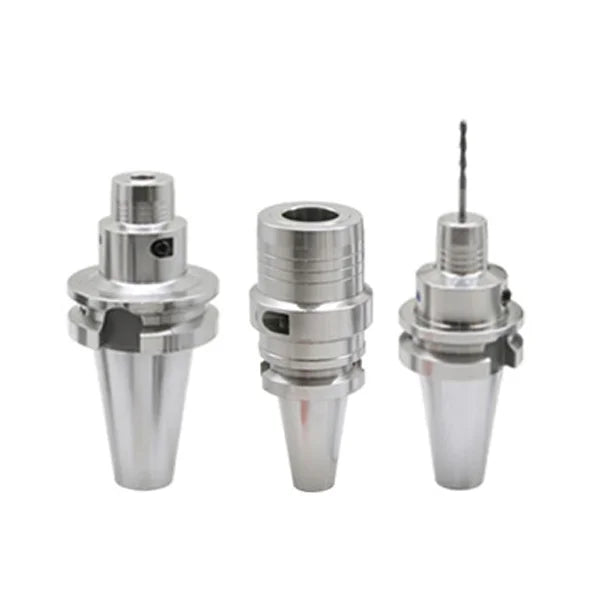

BT30-PHC20-120 | BT / BBT Hydraulic Tool Holder
The BT30-PHC20-120 BT / BBT hydraulic tool holder is a model-level RFQ product for CNC machining and precision toolholding setups. It is selected when the required BT or BBT taper interface, clamping diameter, holder dimensions, insertion length and machine fit must be confirmed before supply.
Technical Specifications
| Order No. | A011524 |
|---|---|
| Model | BT30-PHC20-120 |
| Drawing No. | 1 |
| Clamping Diameter Φd (mm) | 20 |
| ΦD1 (mm) | 40 |
| ΦD2 (mm) | 46 |
| L (mm) | 120 |
| L1 (mm) | 33 |
| Min. Insertion Length C1 (mm) | 36 |
| Max. Insertion Length C (mm) | 52 |
| Net Weight (kg) | 1.43 |
Selection Information
Before requesting a quote, confirm the CNC machine spindle interface, BT or BBT taper requirement, clamping diameter, tool shank size, holder dimensions, insertion length, available clearance and quantity.
Typical Applications
- CNC machining center toolholding setups
- Precision hydraulic clamping of round tool shanks
- BT and BBT spindle tooling applications
- Toolroom and production machining setups
- Machine tool accessory replacement or specification matching
What to Confirm Before Ordering
- Machine model and BT or BBT spindle interface
- Required clamping diameter
- Tool shank size and insertion length
- Holder outside diameter and length clearance
- Quantity and application details
Related Resources
FAQ
What is the BT30-PHC20-120 BT / BBT hydraulic tool holder used for?
It is used for hydraulic toolholding in CNC machining setups with a BT or BBT spindle interface. Final selection depends on taper interface, clamping diameter, holder dimensions, tool shank, insertion length and machine fit.
What information is needed for a quote?
Send the machine model, BT or BBT interface, required clamping diameter, tool shank size, holder length requirements, available clearance and quantity.
Is this product sold by quote?
Yes. This tool holder is handled as an RFQ product because the correct model depends on machine interface, tool size and application requirements.
Request a Quote
Request a quote with your machine model, BT or BBT interface, required clamping diameter and toolholding requirements.
