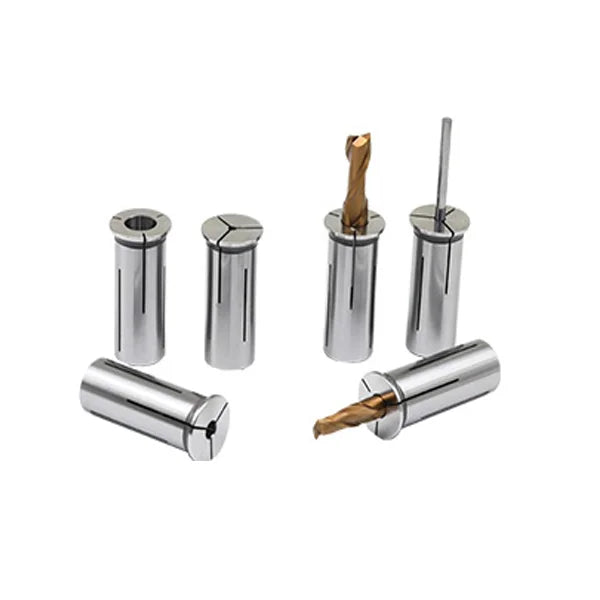

HC12-3 | Reduction Sleeves for Hydraulic Tool Holders
The HC12-3 reduction sleeve is a model-level RFQ accessory for hydraulic tool holders. It is used when a smaller tool shank needs to be held in a compatible hydraulic tool holder bore and the sleeve diameter, inner bore and length must be checked before supply.
Technical Specifications
| Order No. | A012010 |
|---|---|
| Model | HC12-3 |
| Inner Diameter Φd (mm) | 3 |
| Outer Diameter ΦD (mm) | 12 |
| L (mm) | 47 |
| L1 (mm) | 45 |
Selection Information
Before requesting a quote, confirm the hydraulic tool holder bore, required tool shank diameter, sleeve outer diameter, sleeve length, insertion depth requirement and quantity.
Typical Applications
- Tool shank reduction in compatible hydraulic tool holders
- CNC milling and machining center toolholding setups
- Accessory matching for hydraulic clamping systems
- Toolroom and production machining support
- Replacement or project-specific sleeve sourcing
What to Confirm Before Ordering
- Hydraulic tool holder model or bore size
- Tool shank diameter
- Required sleeve outer diameter and length
- Insertion depth and clearance requirements
- Quantity and application details
Related Resources
FAQ
What is the HC12-3 reduction sleeve used for?
It is used as an accessory in compatible hydraulic tool holders when the tool shank is smaller than the holder bore. Final selection depends on the sleeve diameter, tool shank size, length and holder compatibility.
What information is needed for a quote?
Send the hydraulic tool holder model or bore size, tool shank diameter, sleeve size requirement, insertion depth requirement and quantity.
Is this product sold by quote?
Yes. This reduction sleeve is handled as an RFQ product because the correct accessory depends on holder bore, tool shank size and application requirements.
Request a Quote
Request a quote with your hydraulic tool holder bore, tool shank diameter and sleeve size requirement.
