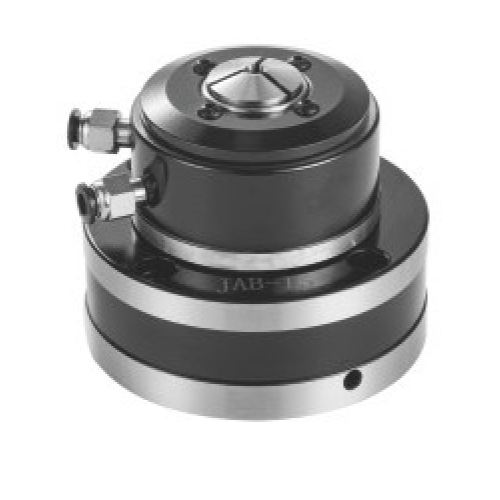

JAB-40 | JAB High-Speed Pneumatic Collet Chuck
The TOP-TOOL JAB-40 JAB High-Speed Pneumatic Collet Chuck is designed for high-speed air-operated rotary collet clamping with front-push actuation.
This series is suitable for rotary machining setups where speed, compact structure and repeat pneumatic clamping are required.
Key Features
- Collet-style clamping provides stable support for round workpieces.
- Available in pneumatic, hydraulic, air / hydraulic and passive configurations.
- Rotary, fixed, pull-back, front-mount, quick and passive styles are available for different machine setups.
- Model selection is based on actuation type, mounting method, collet size, clamping range and machine interface.
Typical Applications
- CNC lathe and rotary workholding applications
- Tube, shaft and round-part machining
- Drilling, tapping, milling and machining center fixtures
- Repeat loading and unloading operations
- Applications requiring collet-style contact and repeatable positioning
Selection Notes
- Confirm whether the application requires rotary or fixed clamping.
- Check the required actuation type: pneumatic, hydraulic, air / hydraulic or passive.
- Review the workpiece diameter, collet size, clamping range and machine interface.
- Confirm whether front-mount, pull-back, force-release, quick or passive operation is required.
- Send the workpiece drawing and machine information for technical review before ordering.
Technical Specifications

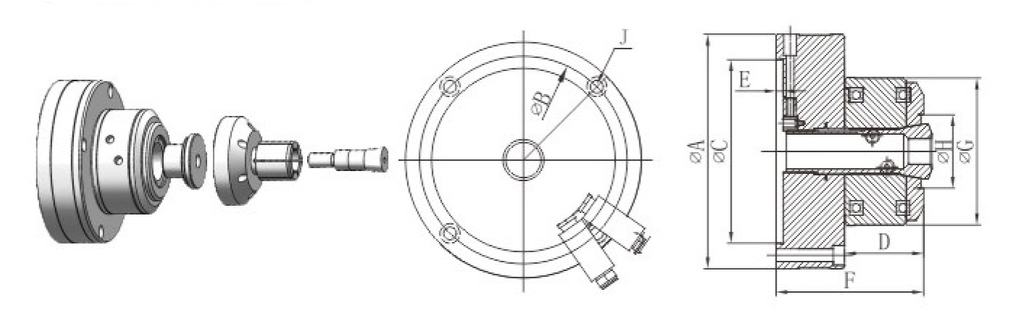

Main Specifications and Dimensions
| Model | JAB-40 |
|---|---|
| Product Type | JAB High-Speed Pneumatic Collet Chuck |
| Actuation Type | Pneumatic |
| Collet Chuck Type | High-Speed Collet Chuck |
| Mounting Style | Rotary |
| Draw Type | Front-Push |
| Clamping Method | Front-push |
| Chuck Size | JAB-40 |
| Clamping Range | Φ5–40 |
| Mount Type | Rotary |
| Purchase Mode | Request a Quote |
| ΦA | 187 |
| ΦB | 168 |
| ΦC(H6) | 150 |
| D | 50 |
| E | 5 |
| F | 115 |
| ΦG | 133 |
| ΦH | 72 |
| J | 4-M8 |
| Speed rpm/min | 4000 |
| mm | 4 |
| Clamping mm | 1.5–2 |
| Max.Torque N.m | 30 |
| Operating Pressure kg/cm² | 3–8 |
| Operating | 16C |
| Weight kg | 13.5 |
Request a Quote
This product is supplied by quotation. Send your machine model, workpiece drawing, collet size, clamping range, actuation type and quantity so that the configuration can be reviewed before ordering.
