JAS-15 | Pneumatic Fixed Collet Chuck

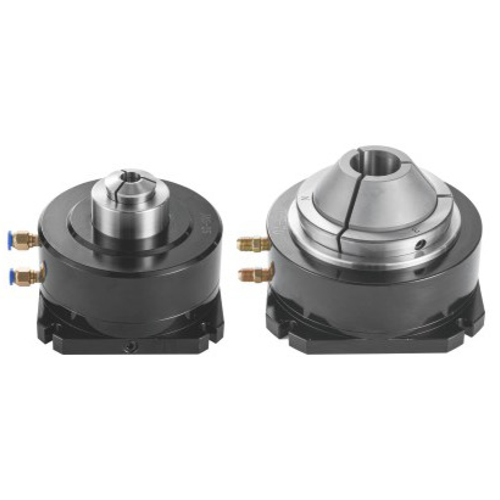

The TOP-TOOL JAS-15 Pneumatic Fixed Collet Chuck is designed for stationary air-operated collet clamping in drilling, tapping, milling, machining center and fixture applications.
This fixed collet chuck is selected when the chuck remains stationary and pneumatic clamping is required for repeat positioning.
Key Features
- Collet-style clamping provides stable support for round workpieces.
- Available in pneumatic, hydraulic, air / hydraulic and passive configurations.
- Rotary, fixed, pull-back, front-mount, quick and passive styles are available for different machine setups.
- Model selection is based on actuation type, mounting method, collet size, clamping range and machine interface.
Typical Applications
- CNC lathe and rotary workholding applications
- Tube, shaft and round-part machining
- Drilling, tapping, milling and machining center fixtures
- Repeat loading and unloading operations
- Applications requiring collet-style contact and repeatable positioning
Selection Notes
- Confirm whether the application requires rotary or fixed clamping.
- Check the required actuation type: pneumatic, hydraulic, air / hydraulic or passive.
- Review the workpiece diameter, collet size, clamping range and machine interface.
- Confirm whether front-mount, pull-back, force-release, quick or passive operation is required.
- Send the workpiece drawing and machine information for technical review before ordering.
Technical Specifications

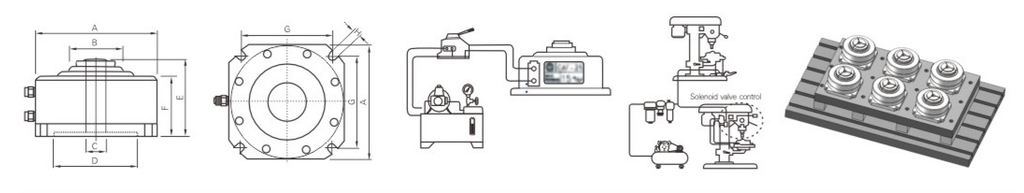

Main Specifications and Dimensions
| Model | JAS-15 |
|---|---|
| Product Type | Pneumatic Fixed Collet Chuck |
| Actuation Type | Pneumatic |
| Collet Chuck Type | Fixed Collet Chuck |
| Mounting Style | Fixed |
| Clamping Method | Front-push |
| Chuck Size | JAS-15 |
| Collet Capacity | Φ14 |
| Mount Type | Fixed |
| Purchase Mode | Request a Quote |
| A | 118 |
| B | 40 |
| C | 14 |
| D | 90 |
| E | 76 |
| F | 64 |
| G | 98.3 |
| H | 9 |
| Actuation | Air / Hydraulic |
| Operating Pressure kg/cm² | 3–15 |
| Clamping Torque N.m | 5 |
| Max. Clamping Diameter | Φ16 |
| Through-Hole Bore | Φ14 |
| Compatible Fixture | YB-15 |
| Weight kg | 5 |
Request a Quote
This product is supplied by quotation. Send your machine model, workpiece drawing, collet size, clamping range, actuation type and quantity so that the configuration can be reviewed before ordering.
