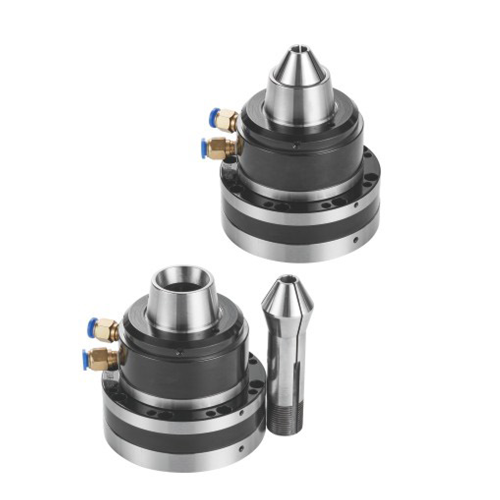

JAW-32 | JAW Precision High-Speed Pneumatic Collet Chuck
The TOP-TOOL JAW-32 JAW Precision High-Speed Pneumatic Collet Chuck is designed for high-speed pneumatic rotary clamping with pull-back clamping action.
This series is selected for precision rotary clamping applications where stable positioning, high speed and repeatable pneumatic actuation are required.
Key Features
- Collet-style clamping provides stable support for round workpieces.
- Available in pneumatic, hydraulic, air / hydraulic and passive configurations.
- Rotary, fixed, pull-back, front-mount, quick and passive styles are available for different machine setups.
- Model selection is based on actuation type, mounting method, collet size, clamping range and machine interface.
Typical Applications
- CNC lathe and rotary workholding applications
- Tube, shaft and round-part machining
- Drilling, tapping, milling and machining center fixtures
- Repeat loading and unloading operations
- Applications requiring collet-style contact and repeatable positioning
Selection Notes
- Confirm whether the application requires rotary or fixed clamping.
- Check the required actuation type: pneumatic, hydraulic, air / hydraulic or passive.
- Review the workpiece diameter, collet size, clamping range and machine interface.
- Confirm whether front-mount, pull-back, force-release, quick or passive operation is required.
- Send the workpiece drawing and machine information for technical review before ordering.
Technical Specifications

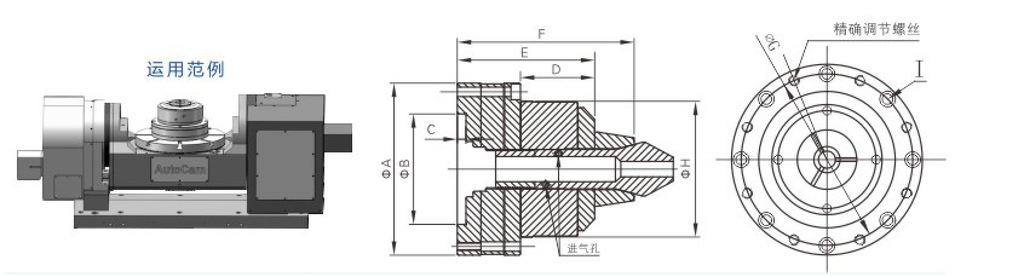

JAW Precision High-Speed Pneumatic Collet Chuck - Main Specifications and Dimensions
| Model | JAW-32 |
|---|---|
| Product Type | JAW Precision High-Speed Pneumatic Collet Chuck |
| Actuation Type | Pneumatic |
| Collet Chuck Type | High-Speed Collet Chuck |
| Mounting Style | Rotary |
| Draw Type | Pull-back |
| Clamping Method | Pull-back |
| Chuck Size | JAW-32 |
| Collet Capacity | W31.75 |
| Clamping Range | Φ5–25 |
| Mount Type | Rotary |
| Purchase Mode | Request a Quote |
| ΦA | 140 |
| ΦB | 100 |
| C | 5.5 |
| D | 53 |
| E | 93 |
| F | 107 |
| G | 126 |
| ΦH | 98 |
| I | 6-M6 countersunk |
| Max. Speed | 3000 |
| Piston Stroke | 3 |
| Clamping Stroke | 0.2 |
| Max. Torque | 20 |
| Actuation | Pneumatic |
| Collet | W31.75 |
| Weight | 8.5 |
| Air Pressure | 3–8 |
Request a Quote
This product is supplied by quotation. Send your machine model, workpiece drawing, collet size, clamping range, actuation type and quantity so that the configuration can be reviewed before ordering.
