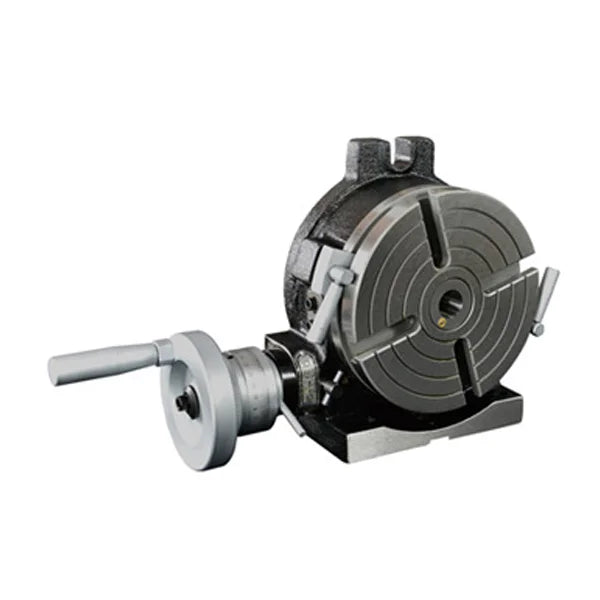

RT-HV5 | RT-HV Series Horizontal and Vertical Rotary Table
The RT-HV5 horizontal and vertical rotary table is a model-level RFQ product for milling, indexing and angular positioning setups. It is selected when a workpiece must be positioned in a controlled rotary layout and the table diameter, center taper, worm ratio, mounting space and machine table compatibility need to be checked before supply.

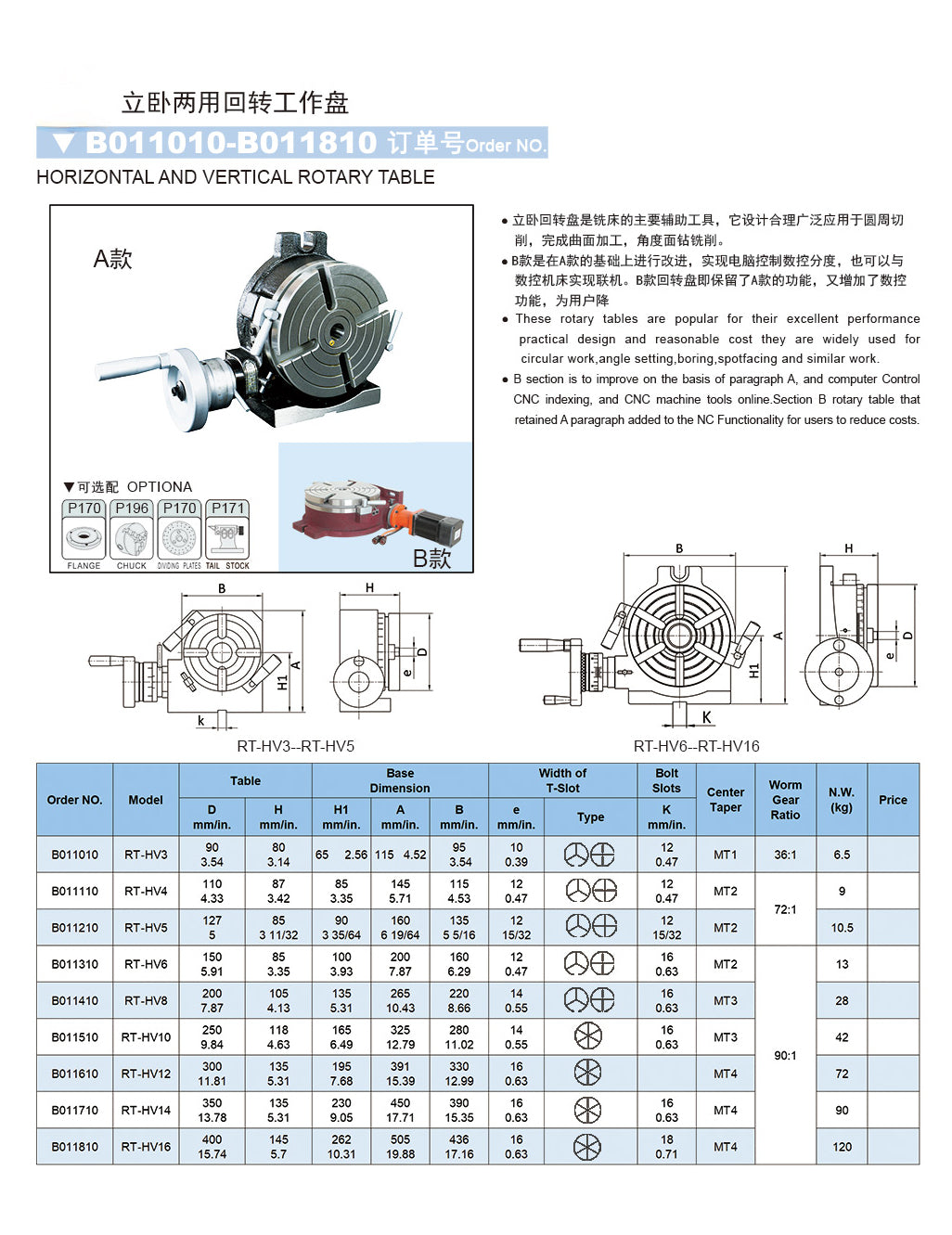

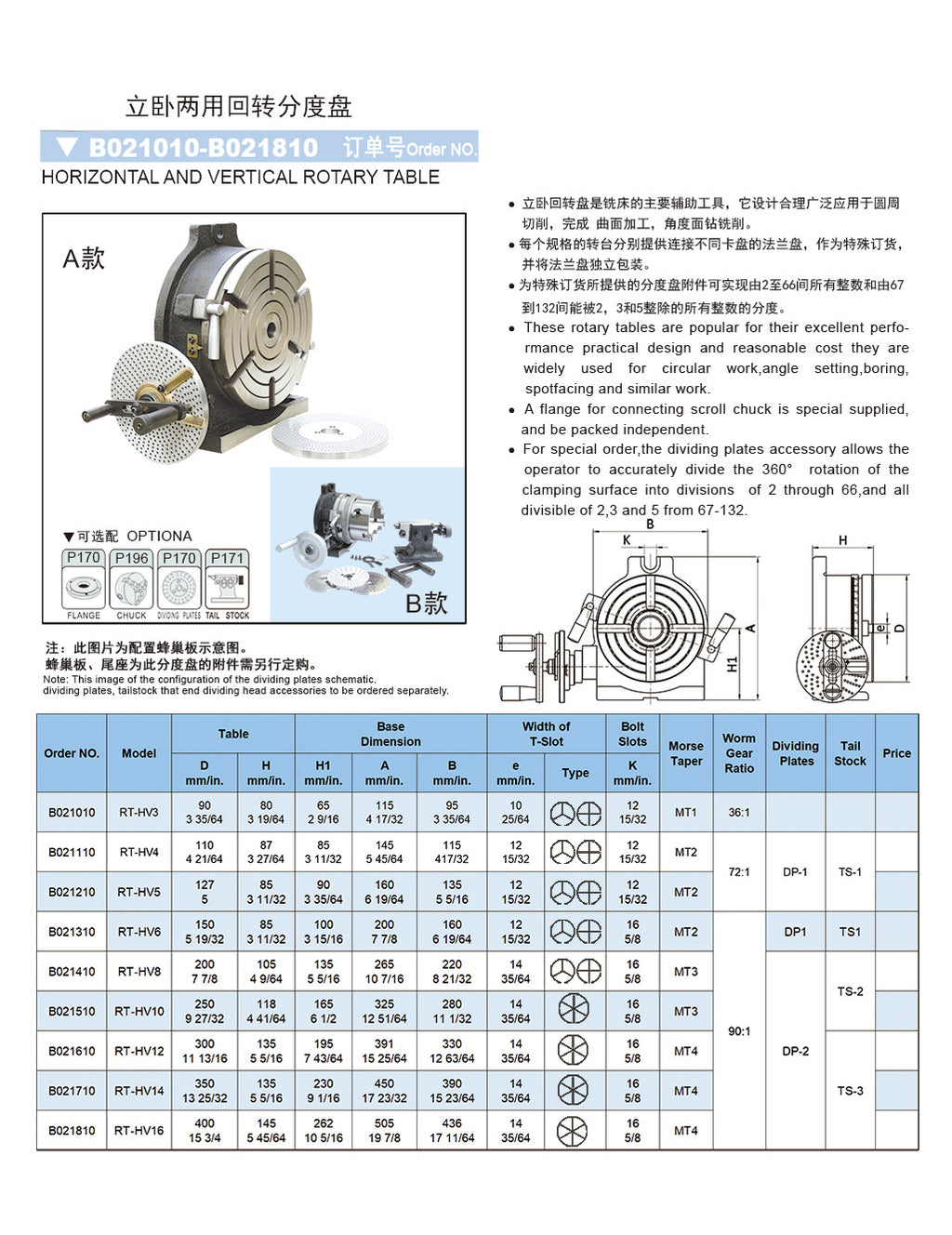

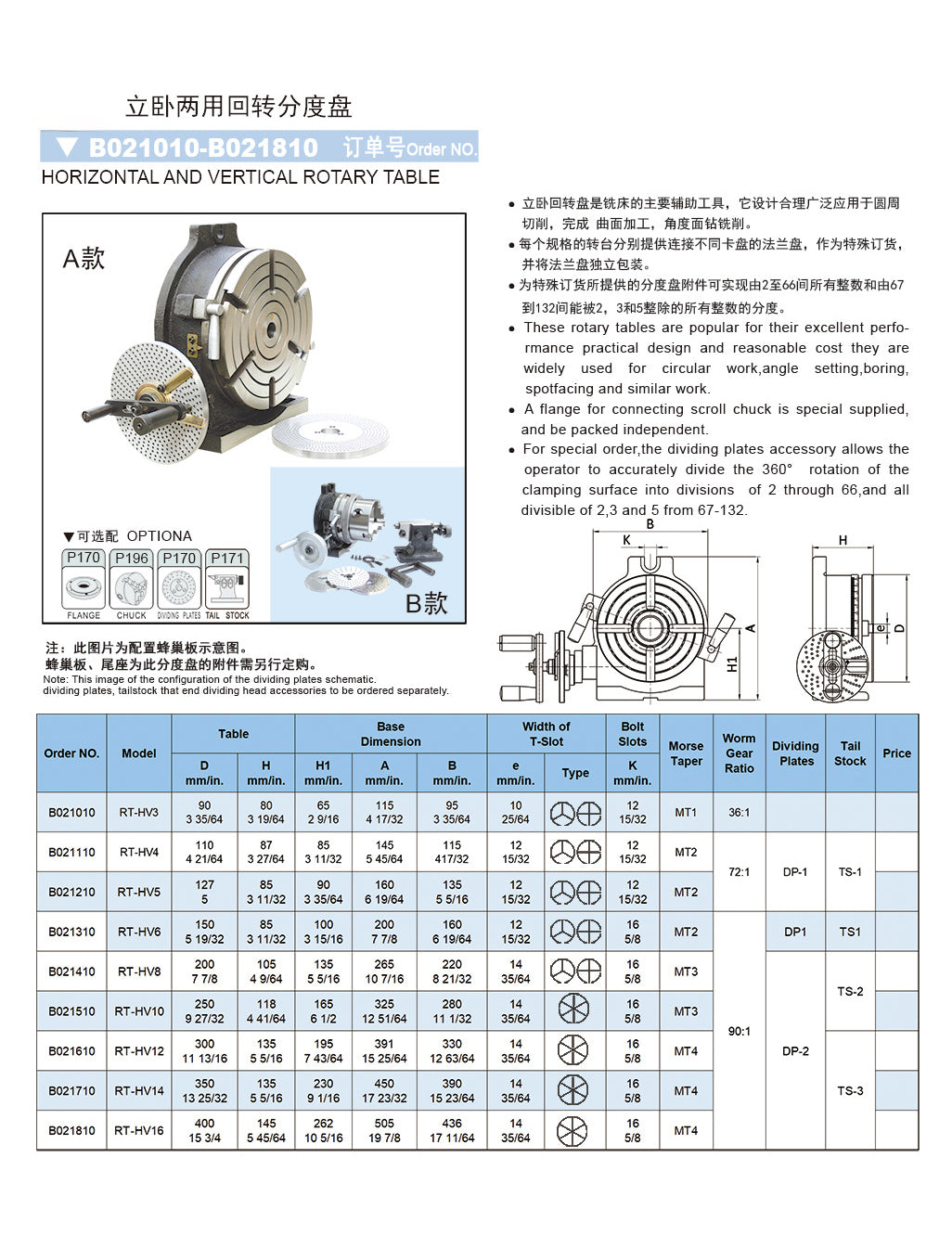

Technical Specifications
| Order No. | B011210 |
|---|---|
| Model | RT-HV5 |
| Table Dia. D | 127 / 5 |
| Table Height H | 85 / 3 11/32 |
| Base H1 | 90 / 3 35/64 |
| Base A | 160 / 6 19/64 |
| Base B | 135 / 5 5/16 |
| T-slot e | 12 / 15/32 |
| Slot Type | 2-slot |
| Slot K | 12 / 15/32 |
| Center Taper | MT2 |
| Worm Ratio | 72:1 |
| Dividing Plate | DP-1 |
| Tailstock | TS-1 |
| Net Weight (kg) | 10.5 |
Selection Information
Before requesting a quote, confirm the machine table size, required table diameter, workpiece weight, indexing method, center taper, T-slot layout, mounting clearance and whether the setup will be used in horizontal, vertical or mixed orientation.
Typical Applications
- Angular indexing on milling machines
- Rotary indexing for drilling, milling and slotting
- Small and medium workpiece positioning
- Horizontal or vertical rotary table setups
- Toolroom and general machine shop indexing work
What to Confirm Before Ordering
- Machine model and table size
- Required rotary table diameter
- Workpiece size and weight
- Center taper and mounting requirements
- Indexing requirement, orientation and accessory needs
Related Resources
FAQ
What is the RT-HV5 horizontal and vertical rotary table used for?
It is used for milling and indexing setups where a workpiece needs controlled angular positioning. Final selection depends on table diameter, workpiece size, machine table layout, center taper and required orientation.
What information is needed for a quote?
Can it be used in both horizontal and vertical setups?
The intended orientation should be confirmed before ordering. Horizontal, vertical and mixed-use setups affect mounting, clearance, workpiece support and safe operating review.
Request a Quote
Request a quote with your machine model, workpiece details and rotary table requirements.
