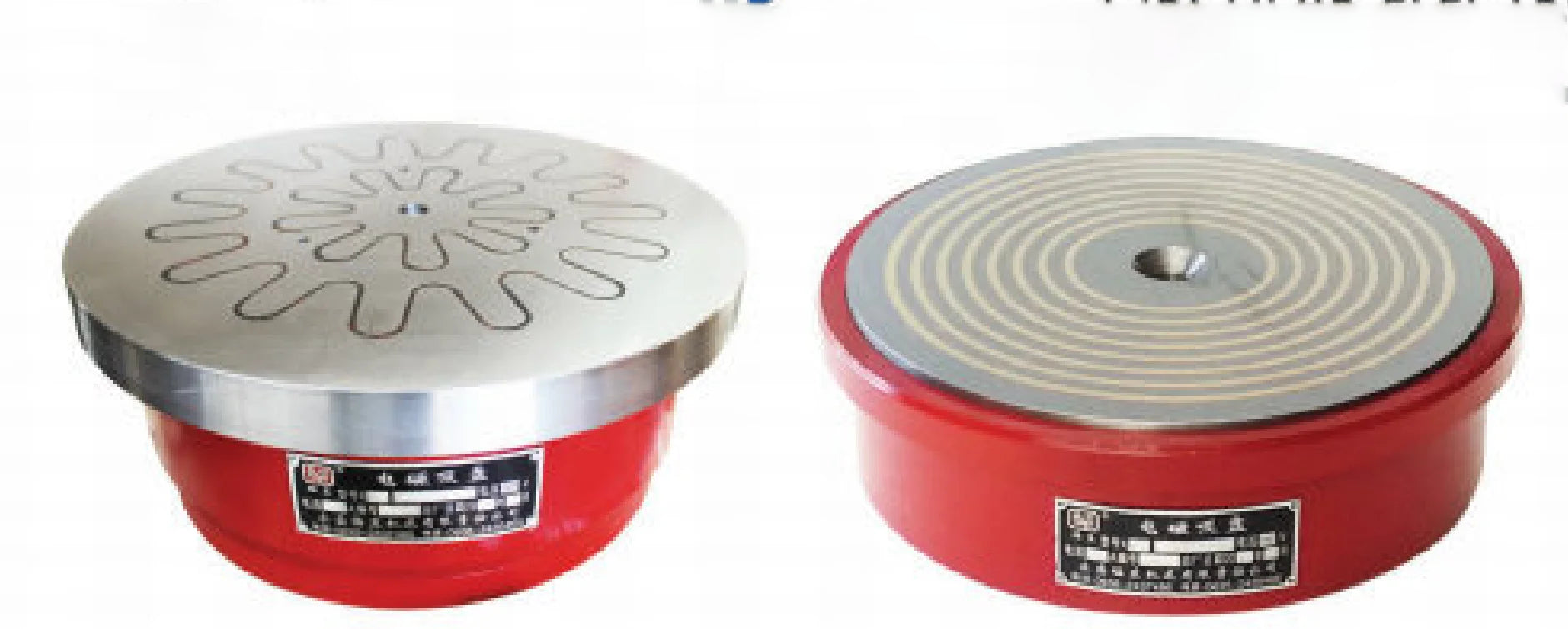

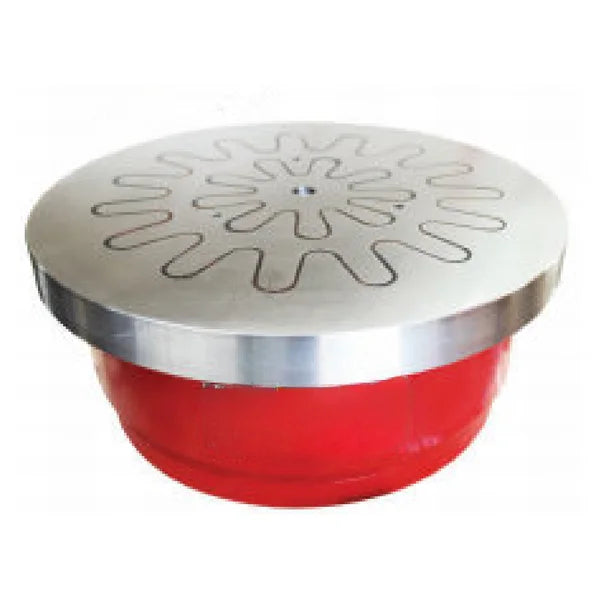

X21 1000 | Circular Electromagnetic Chuck
The X21 1000 circular electromagnetic chuck is a model-level RFQ product for grinding and magnetic workholding. It is selected when ferrous workpieces need magnetic holding on a circular chuck face and the chuck diameter, mounting layout, power requirements and workpiece contact area must be checked before supply.
Technical Specifications
| Model | X21 1000 |
|---|---|
| Main Dimensions (mm) A | 1060 |
| Main Dimensions (mm) B | 1036 |
| Main Dimensions (mm) C | 180 |
| Main Dimensions (mm) D | 35 |
| Main Dimensions (mm) E | 20 |
| Net Weight (kg) | 1250 |
| DC Voltage (V) | 110 |
| Current (A) | 4.6 |
Selection Information
Before requesting a quote, confirm the machine model, table or mounting interface, required chuck diameter, workpiece material, workpiece contact area, power supply requirements and the intended grinding or machining environment.
Typical Applications
- Magnetic workholding for ferrous workpieces
- Circular chuck face grinding setups
- Grinding operations where mechanical clamps restrict access
- Toolroom, repair and production grinding applications
- Large circular or ring-shaped workpiece holding, depending on workpiece contact area
What to Confirm Before Ordering
- Machine model and table or mounting interface
- Required chuck diameter
- Workpiece material, thickness and contact surface
- Controller or power supply requirements
- Quantity and application details
Related Resources
FAQ
What is the X21 1000 circular electromagnetic chuck used for?
It is used for magnetic workholding when ferrous workpieces need to be held on a circular chuck face. Final selection depends on the workpiece material, contact area, thickness, chuck diameter and machine setup.
What information is needed for a quote?
Send the machine model, required chuck diameter, mounting details, workpiece material, workpiece dimensions, power supply requirements and quantity.
Can this chuck hold non-ferrous materials?
No. Magnetic chuck holding depends on ferrous material response, contact area, surface condition, workpiece thickness and grinding load. Non-ferrous materials are not held directly by a magnetic chuck.
Request a Quote
Request a quote with your machine model, workpiece details and required circular electromagnetic chuck size.
