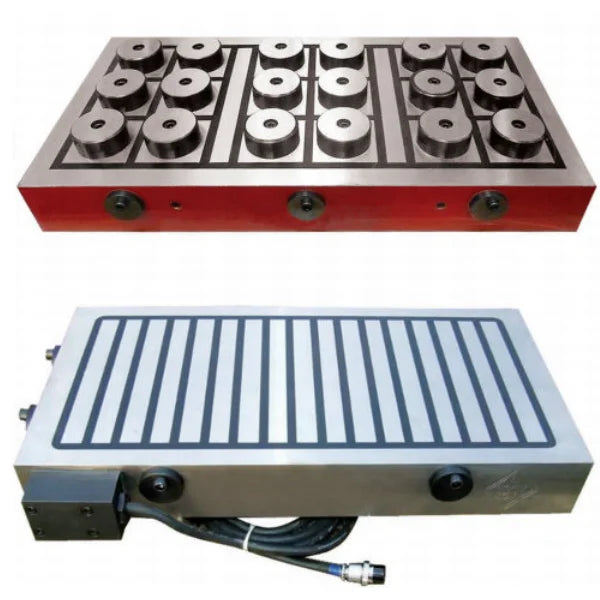

X61 400x400 | Electro-Permanent Magnetic Chuck
The X61 400x400 electro-permanent magnetic chuck is a model-level RFQ product for surface grinding and magnetic workholding. It is selected when ferrous workpieces need magnetic holding and the chuck size, controller requirements, mounting layout and workpiece contact area must be checked before supply.
Technical Specifications
| Model | X61 400*400 |
|---|---|
| Main Dimensions (mm) Length | 400 |
| Main Dimensions (mm) Width | 400 |
| Main Dimensions (mm) Height | 75 |
| Pole Size | 70*70 |
Selection Information
Before requesting a quote, confirm the grinder or machine table size, chuck mounting method, workpiece material, workpiece contact area, controller requirements, power supply details and the intended grinding or machining environment.
Typical Applications
- Surface grinding of ferrous workpieces
- Magnetic workholding where controller-based activation is required
- Flat part holding on grinding machines
- Fixture setups where mechanical clamps restrict access
- Production and toolroom grinding applications
What to Confirm Before Ordering
- Machine model and table size
- Required chuck size and mounting layout
- Workpiece material, thickness and contact surface
- Controller or power supply requirements
- Quantity and application details
Related Resources
FAQ
What is the X61 400x400 electro-permanent magnetic chuck used for?
It is used for magnetic workholding on grinding machines or machining setups where ferrous workpieces need to be held with magnetic force while keeping the top surface accessible.
What information is needed for a quote?
Send the machine model, table size, required chuck size, workpiece material, workpiece dimensions, controller or power supply requirements and quantity.
Can this chuck hold non-ferrous materials?
No. Magnetic chuck holding depends on ferrous material response, contact area, surface condition, workpiece thickness and grinding load. Non-ferrous materials are not held directly by a magnetic chuck.
Request a Quote
Request a quote with your machine model, workpiece details and required electro-permanent magnetic chuck size.
