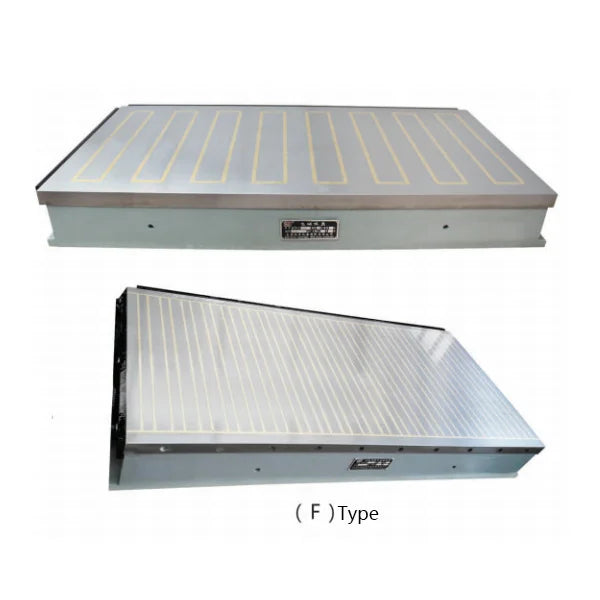

X91 400x800 | Powerful Rectangular Electromagnetic Chuck
The X91 400x800 powerful rectangular electromagnetic chuck is a model-level RFQ product for surface grinding and magnetic workholding. It is selected when flat ferrous workpieces require magnetic holding on a grinder table and the chuck size, power requirements, mounting layout and workpiece contact area must be checked before supply.
Technical Specifications

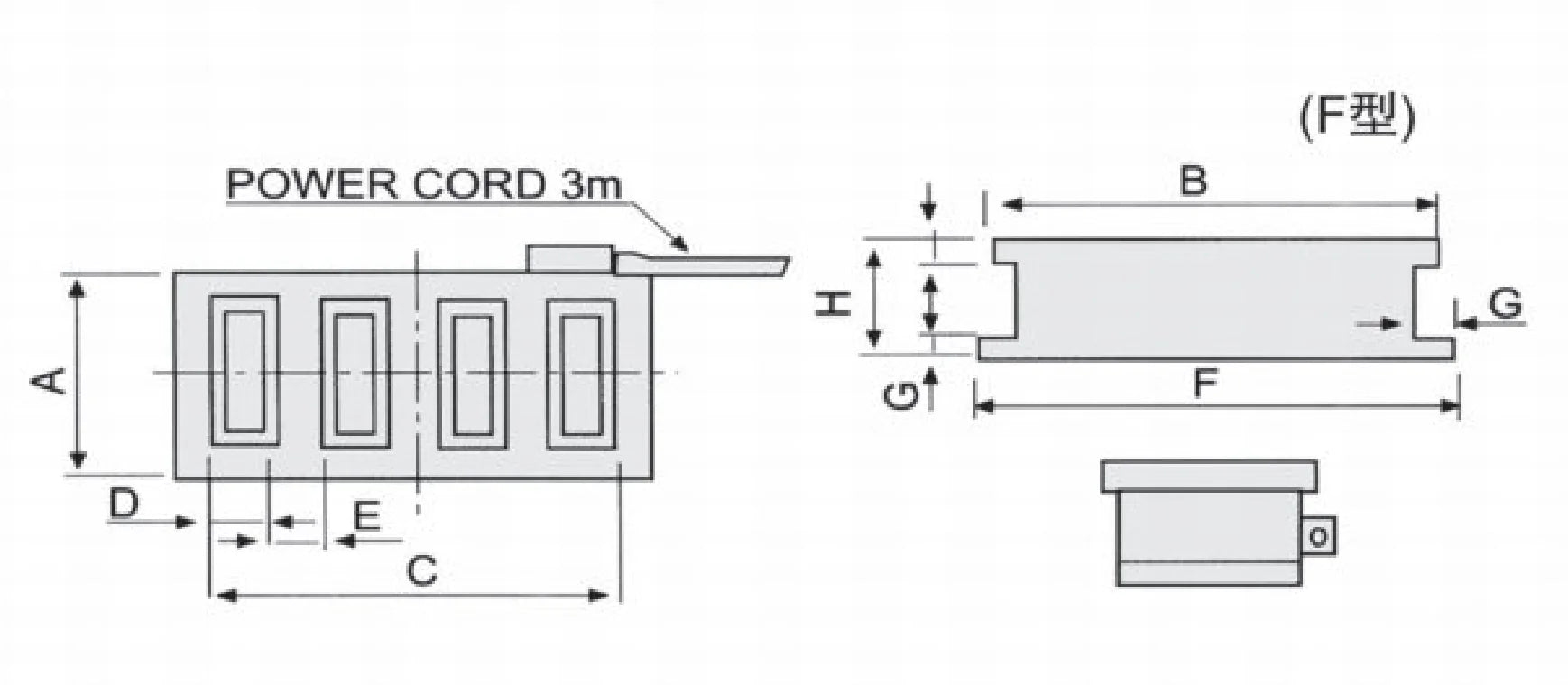

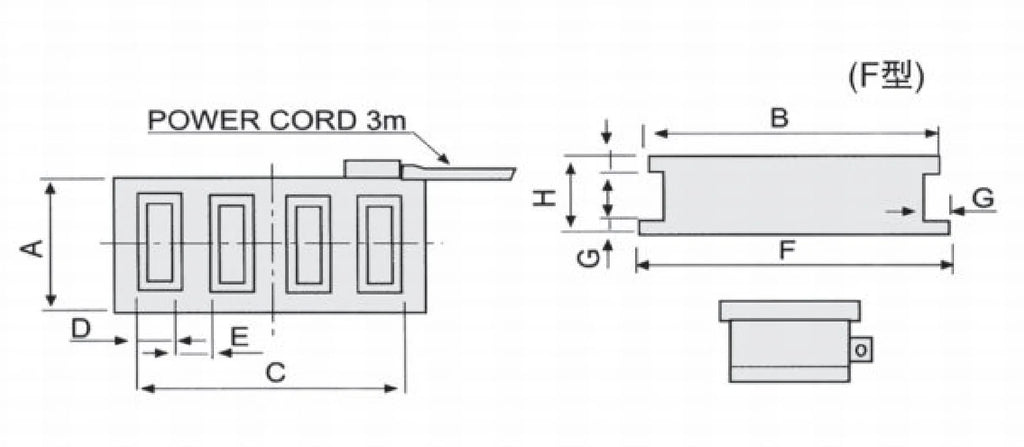

| Model | X91 400*800 |
|---|---|
| Main Dimensions (mm) A | 400 |
| Main Dimensions (mm) B | 800 |
| Main Dimensions (mm) C | 732 |
| Main Dimensions (mm) D / E | 55(4+25+4+22) |
| Main Dimensions (mm) F | 840 |
| Main Dimensions (mm) G | 18 |
| Main Dimensions (mm) H | 130 |
| Net Weight (kg) | 255 |
| DC Voltage (V) | 110 |
| Current (A) | 4.4 |
Selection Information
Before requesting a quote, confirm the grinder table size, chuck mounting method, workpiece material, workpiece contact area, required holding layout, power supply requirements and any coolant or grinding environment considerations.
Typical Applications
- Surface grinding of ferrous workpieces
- Magnetic workholding on grinding machines
- Large rectangular workpiece holding
- Grinding fixture setups where mechanical clamps limit tool access
- Toolroom, repair and production grinding work
What to Confirm Before Ordering
- Grinding machine model and table size
- Required chuck size and mounting layout
- Workpiece material, thickness and contact surface
- Power supply or controller requirements
- Quantity and application details
Related Resources
FAQ
What is the X91 400x800 powerful rectangular electromagnetic chuck used for?
It is used for magnetic workholding on grinding machines, especially when flat ferrous workpieces need to be held without mechanical clamps covering the top surface.
What information is needed for a quote?
Send the grinder model, table size, required chuck size, workpiece material, workpiece dimensions, power supply requirements and quantity.
Can this chuck hold non-ferrous materials?
No. Magnetic chuck holding depends on ferrous material response, contact area, surface condition, workpiece thickness and grinding load. Non-ferrous materials are not held directly by a magnetic chuck.
Request a Quote
Request a quote with your grinder model, workpiece details and required magnetic chuck size.
