How to Cut Metal with an Angle Grinder: Disc Selection and Setup Checks

An angle grinder can cut metal when it is fitted with a cut-off disc designed for metal cutting. The disc type, grinder size, guard, arbor, workpiece support and operating instructions should all be checked before the cut begins.

This guide focuses on metal cutting with abrasive cut-off discs. It does not cover concrete, masonry or tile cutting. After cutting, burrs and sharp edges may need deburring, sanding or surface conditioning with tools such as Quick Change Sanding Discs or Stripping Discs.

What Disc Should Be Used for Cutting Metal?

Use a cut-off disc that is designed and marked for metal cutting and compatible with the grinder size, arbor or attachment style, material and application. A cut-off disc is used on its edge for cutting. It should not be used as a grinding disc with side pressure unless the manufacturer specifically marks it for that use.

Before Cutting: Setup Checks

Before starting, confirm the tool, disc and workpiece are set up for the operation. Final tool speed, guard position, PPE and safe operation should always follow the grinder and disc manufacturer instructions.

• Confirm the cut-off disc is marked for metal cutting and fits the grinder size.
• Check that the disc is not cracked, chipped, wet, warped or expired if date-coded.
• Confirm the arbor or attachment system matches the grinder.
• Use the correct guard and verify that it is positioned for the cut.
• Secure the workpiece so it cannot shift, drop or pinch the disc.
• Plan the cut line and make sure the disc has clearance through the material.
• Keep the disc aligned with the cut path before applying pressure.

Step-by-Step Cutting Workflow

1. Mark the cut line and remove coating, rust or contamination if it interferes with visibility or disc contact.
2. Secure the metal so the offcut can separate without binding the disc.
3. Let the grinder reach operating speed according to the manufacturer instructions before contacting the workpiece.
4. Enter the cut with the disc aligned straight in the kerf.
5. Use controlled pressure and let the disc cut instead of forcing the tool.
6. Avoid twisting, bending or side-loading the cut-off disc during the cut.
7. Allow the cut area to cool before handling, deburring or finishing.

Common Mistakes

• Using a grinding wheel when a cut-off disc is required.
• Side-loading a thin cut-off disc while trying to widen a cut.
• Forcing the grinder instead of using controlled pressure.
• Cutting unsupported material that can pinch the disc.
• Using a disc that does not match the grinder size or attachment.
• Using sanding or stripping discs as cutting discs.

After Cutting: Edge Cleanup and Surface Preparation

Cut metal edges often need a second operation. Burrs, sharp edges, heat tint, coating damage or surface contamination may remain after the cut. The next tool depends on the desired finish and workpiece condition.

For deburring, blending and small-area metal finishing, see How to Use Quick Change Sanding Discs for Metal. For paint, rust or coating removal around the work area, compare options in Strip Discs vs Sanding Discs.

Related TOP-TOOL Resources

Quick Change Sanding Discs

Use quick change sanding discs after cutting for deburring, blending, edge cleanup and controlled small-area metal finishing.

Stripping Discs

Use strip discs for paint, rust and coating removal around a cut or before surface preparation work.

How to Use Quick Change Sanding Discs for Metal

Review grit, pressure and finish control for metal sanding after cutting.

Strip Discs vs Sanding Discs

Compare cleaning, stripping and sanding roles before choosing a post-cut surface preparation disc.

2-Inch Quick Change Surface Conditioning Sanding Discs

This product page is a post-cut cleanup example for deburring, blending and surface preparation after metal cutting. It is not a cut-off disc.

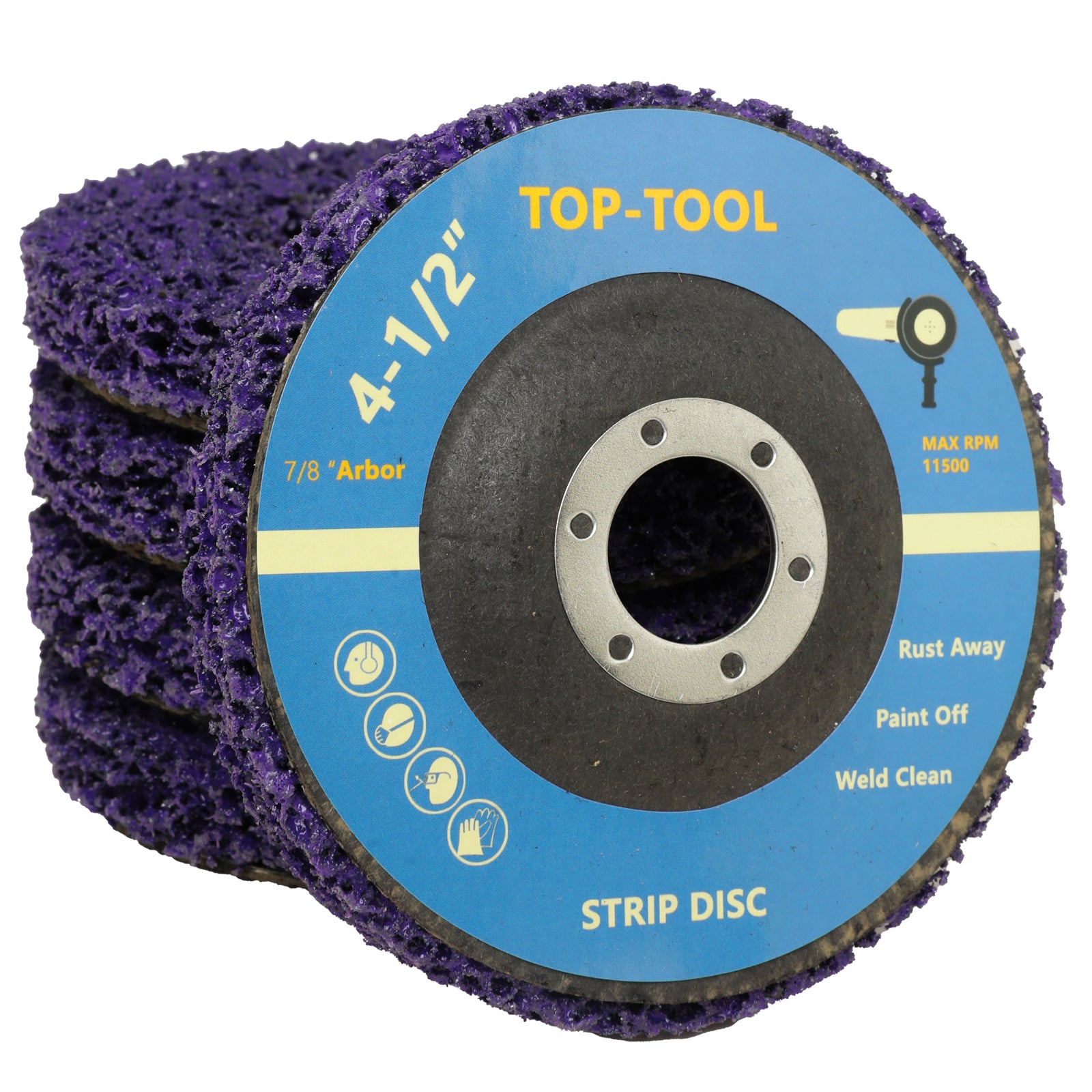

4-1/2 Inch Strip Disc for Angle Grinder

This product page is a surface preparation example for paint, rust or coating removal around a work area. It is not a cutting disc.

Request a Quote

Send the disc size, material, finish requirement, application and quantity for product selection review.

FAQ

Can an angle grinder cut metal?

Yes, an angle grinder can cut metal when fitted with a cut-off disc designed for metal cutting and used according to the grinder and disc manufacturer instructions.

What disc should I use to cut metal with an angle grinder?

Use a cut-off disc marked for metal cutting that matches the grinder size, arbor or attachment style, work material and application.

Can I use a grinding wheel to cut metal?

A grinding wheel is normally used for material removal with the appropriate grinding face. Use a cut-off disc for cutting unless the product is specifically designed and marked for both operations.

Should I push hard when cutting metal?

Use controlled pressure and keep the disc aligned. Forcing the tool can increase binding, heat and disc stress. Follow the product instructions for proper use.

What should I use after cutting metal?

After cutting, use an appropriate deburring, sanding or surface conditioning tool to remove sharp edges, burrs or coating damage based on the finish required.

Can quick change sanding discs cut metal?

No. Quick change sanding discs are for sanding, deburring, blending and surface finishing. They should not be used as cut-off discs.

Summary

To cut metal with an angle grinder, choose a metal cut-off disc that matches the tool and material, secure the workpiece, keep the disc aligned and avoid side-loading. After the cut, use sanding or surface preparation discs only for cleanup and finishing, not as cutting discs.
