Lathe chuck installation and maintenance affect workholding stability, repeatability and shop safety. This guide covers practical checks that apply before mounting a chuck, during setup and during routine maintenance.

Always follow the machine builder’s manual, the chuck manufacturer’s instructions and your shop safety procedures. This article does not provide torque values or performance guarantees because those details depend on the chuck, spindle nose, fasteners and machine configuration.

Before Installation: Clean and Inspect Mounting Surfaces

Before installing a lathe chuck, clean the spindle nose, adapter plate, chuck mounting face and register surfaces. Chips, dents, rust, oil buildup or burrs between mating surfaces can prevent the chuck from seating correctly.

Inspect the mounting faces for damage before lifting the chuck into position. If a chuck is heavy, use suitable lifting equipment and keep hands clear of pinch points. Do not mount a chuck if the mounting interface, fasteners or jaws appear damaged.

Mounting and Tightening Checks

Fit the chuck squarely against the spindle or adapter surface. Start all fasteners by hand where applicable, then tighten gradually in a balanced sequence according to the machine and chuck instructions. Do not substitute unknown fasteners or rely on a single fastener to pull the chuck into place.

After mounting, rotate the spindle by hand when safe to do so and confirm that nothing contacts guards, tools or the machine structure. Remove chuck keys, wrenches and loose tools before starting the machine.

Runout and Centering Checks

After installation, check the setup using the inspection method required by the job. A dial indicator is commonly used to check whether the chuck body, test bar or workpiece is running as expected.

For a self-centering chuck, make sure the workpiece seats properly and the jaws contact the part evenly. For an independent jaw chuck, adjust each jaw and indicate the workpiece when centering control is required. Do not assume a new setup is correct without checking it.

Jaw and Chuck Body Maintenance

Keep the chuck clean. Chips and abrasive dust can affect jaw movement, seating and clamping consistency. Clean the jaw ways, scroll area or jaw contact surfaces according to the chuck design and manufacturer instructions.

Inspect jaws for wear, damage, bell-mouthing, mismatched jaw positions or poor contact. Replace or service worn jaws when they no longer support the workpiece correctly. If the chuck has reversible or removable jaws, keep matched jaw sets together and install them in the correct positions.

Workholding Safety Notes

A lathe can be dangerous when a workpiece is not secured correctly. Confirm that the workpiece is clamped, supported and appropriate for the operation. Avoid making adjustments while the spindle is running and stop the machine before measuring or clearing chips.

Follow shop rules for eye protection, guards, chip control and handling heavy chucks or workpieces. Remove the chuck key immediately after tightening. Do not leave tools, measuring instruments or loose objects on the lathe before starting the spindle.

When to Replace or Service a Chuck

Service or replace a chuck when jaw movement becomes rough, jaws do not contact the work evenly, mounting surfaces are damaged, fasteners are compromised or the chuck cannot meet the setup requirement after cleaning and inspection.

If a part repeatedly shifts, runs inconsistently or requires excessive adjustment, check the full setup before blaming one component. The issue may involve jaw condition, chuck wear, mounting surfaces, workpiece geometry or machine setup.

Related TOP-TOOL Product Lines

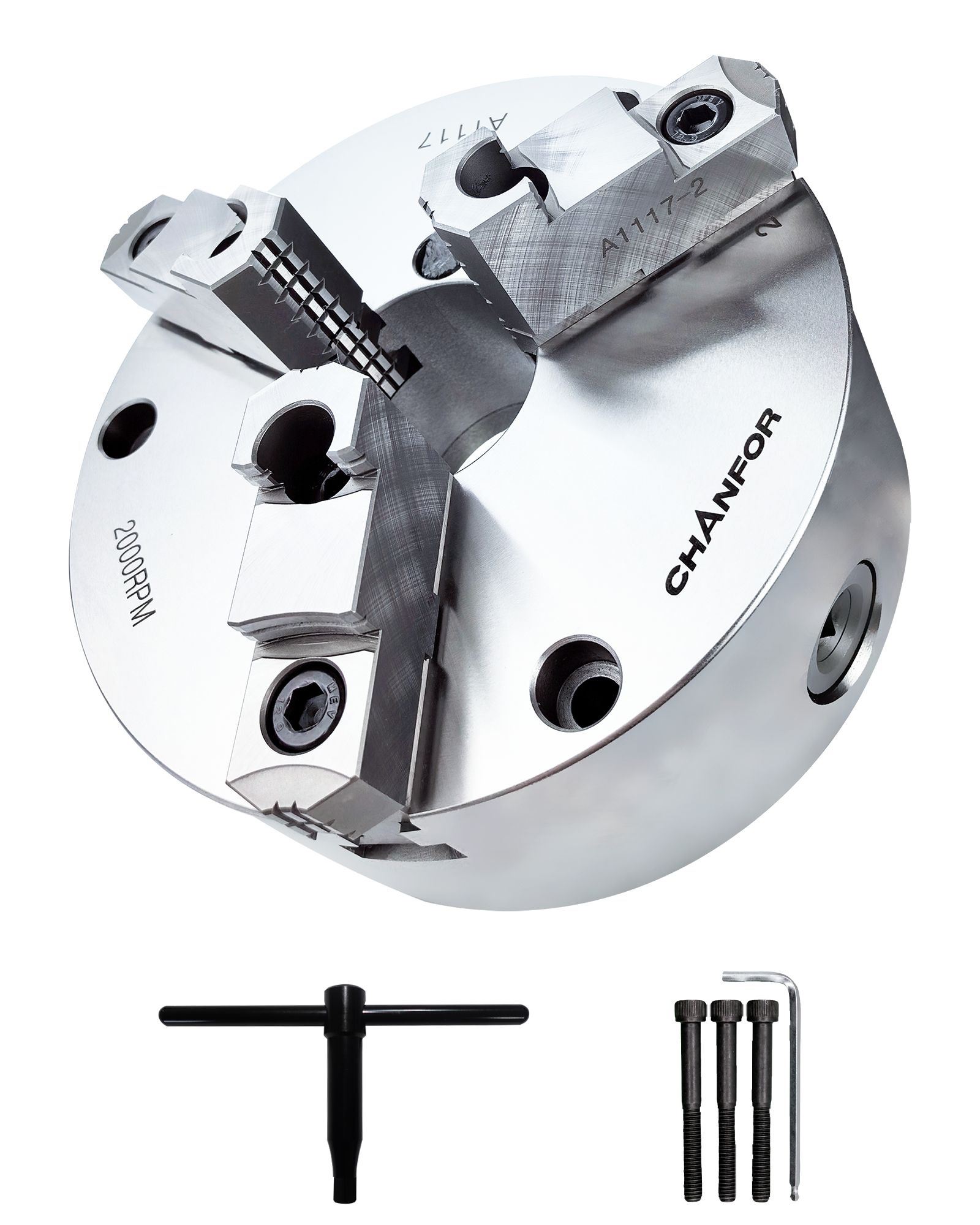

For manual lathe chuck options, view Manual Chucks.

For production workholding where powered clamping is required, compare Hydraulic Power Chucks.

For model selection or quotation, send the chuck size, mounting requirement, machine model, workpiece information and quantity through the Request a Quote form.

Summary

Reliable lathe chuck setup starts with clean mounting surfaces, correct fastening, workpiece support, runout checks and regular jaw maintenance. Avoid shortcuts that hide dirt, wear or poor contact between the chuck and the machine.

Use the machine and chuck documentation for final installation requirements, and do not apply unverified torque, speed or clamping assumptions to a different chuck setup.
