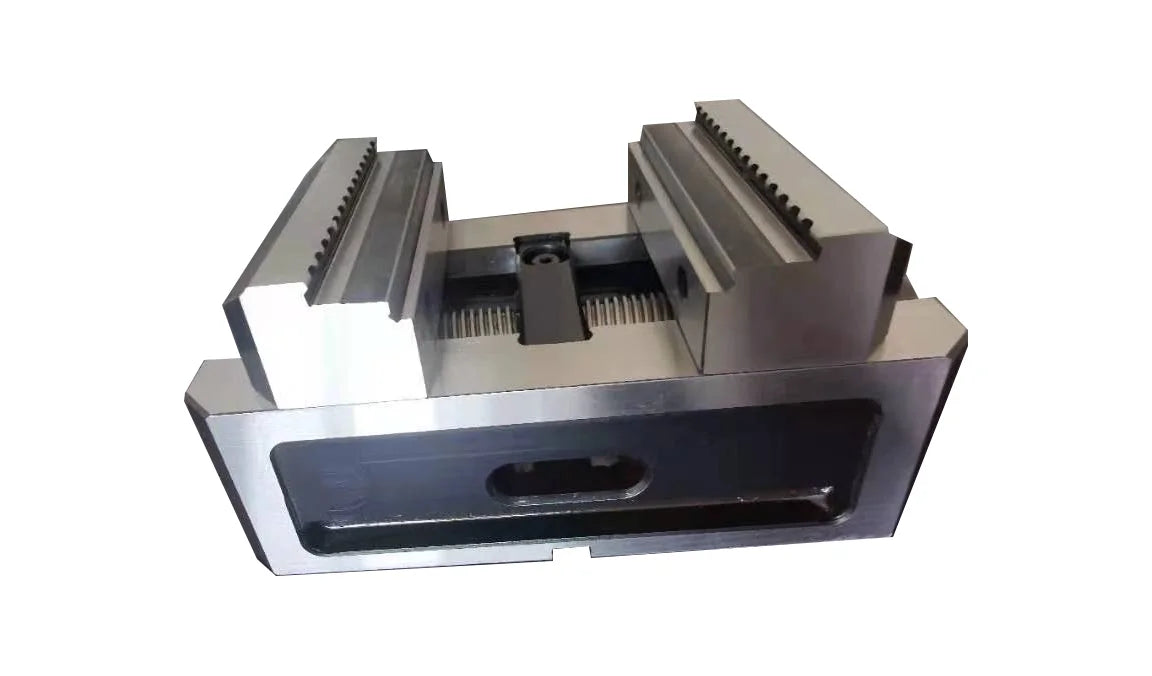

150x185 | 5-Axis Precision Vise
The 150x185 5-axis precision vise is a model-level RFQ product for milling and machining center workholding. It is selected when compact clamping, tool access and multi-sided machining clearance need to be checked against the workpiece and machine table.

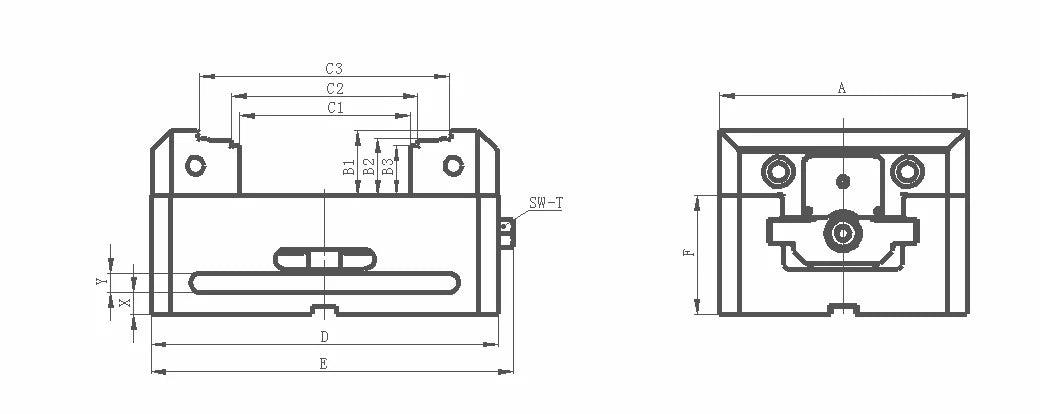

Technical Specifications
| Model | 150×185 |
|---|---|
| A | 150 |
| B / B1 / B2 | 35/28/22 |
| C / C1 / C2 | 185/131/121 |
| D | 200 |
| E | 208 |
| F | 70 |
| X | 100 |
| d | 18 |
| T | 14 |
| Clamping Force | 45 kN |
| Weight | 17.1 kg |
Selection Information
Before requesting a quote, confirm the machine table size, mounting layout, workpiece dimensions, required jaw opening, available tool clearance and whether the setup requires multi-sided machining access.
Typical Applications
- 5-axis machining center workholding
- Multi-sided milling operations
- Low-profile clamping setups
- Small and medium workpieces requiring improved tool access
- Precision milling fixtures and repeatable setup work
What to Confirm Before Ordering
- Machine model and table size
- T-slot or mounting layout
- Workpiece dimensions and material
- Required jaw opening and clamping direction
- Quantity and any fixture layout requirements
Related Resources
FAQ
Is the 150x185 vise a direct-purchase product?
No. This vise is handled as an RFQ product so the size, mounting method and application can be checked before supply.
What information is needed for a quote?
Send the machine model, table size, mounting slot details, workpiece size, jaw opening requirement and quantity.
Can this vise fit every 5-axis machine?
No. Fit depends on machine table size, tool clearance, workpiece dimensions and the required clamping layout.
Request a Quote
Request a quote with your machine model, workpiece details and vise size requirement.
