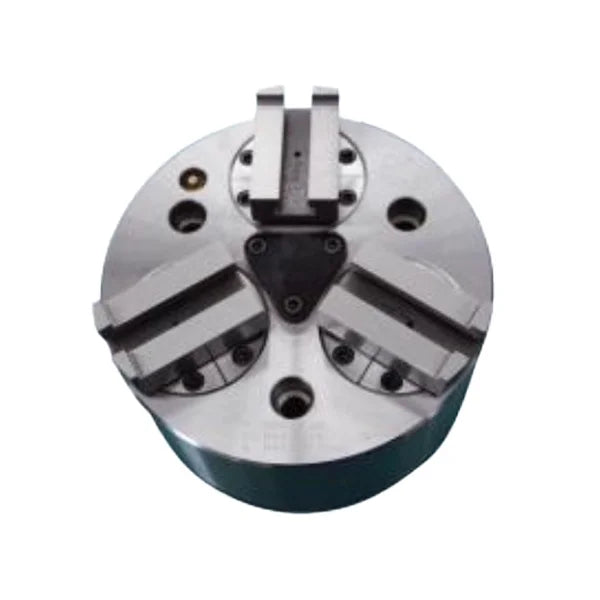

200 mm Ball Lock Hydraulic Chuck
The TOP-TOOL 200 mm Ball Lock Hydraulic Chuck is a specialized hydraulic workholding solution for CNC lathe applications involving long shafts, center-supported workpieces and setups where support, alignment and clamping stability must be considered together.
This is not a general lock component. It is a hydraulic chuck structure selected for specific workholding applications where a standard hydraulic chuck cannot provide the required support or alignment control.
Key Features
- Special chuck structure for applications where support and alignment are important to the clamping process.
- Suitable for long workpieces and center-supported parts.
- Hydraulic actuation for CNC lathe workholding setups.
- Selected according to the actual workpiece drawing and support method.
- Designed for specific workholding problems rather than general locking hardware applications.
Typical Applications
- Long shaft workpieces
- Center-supported parts
- Alignment-sensitive CNC lathe workholding
- Special hydraulic chuck applications
- Workpieces requiring additional support during clamping
Selection Notes
- Confirm the workpiece length, support method and clamping position.
- Check whether the part requires center support or special alignment control.
- Review jaw stroke, clamping force and maximum speed.
- Check the machining process and cutting load.
- Select the chuck according to the workpiece drawing and support method.
Technical Specifications

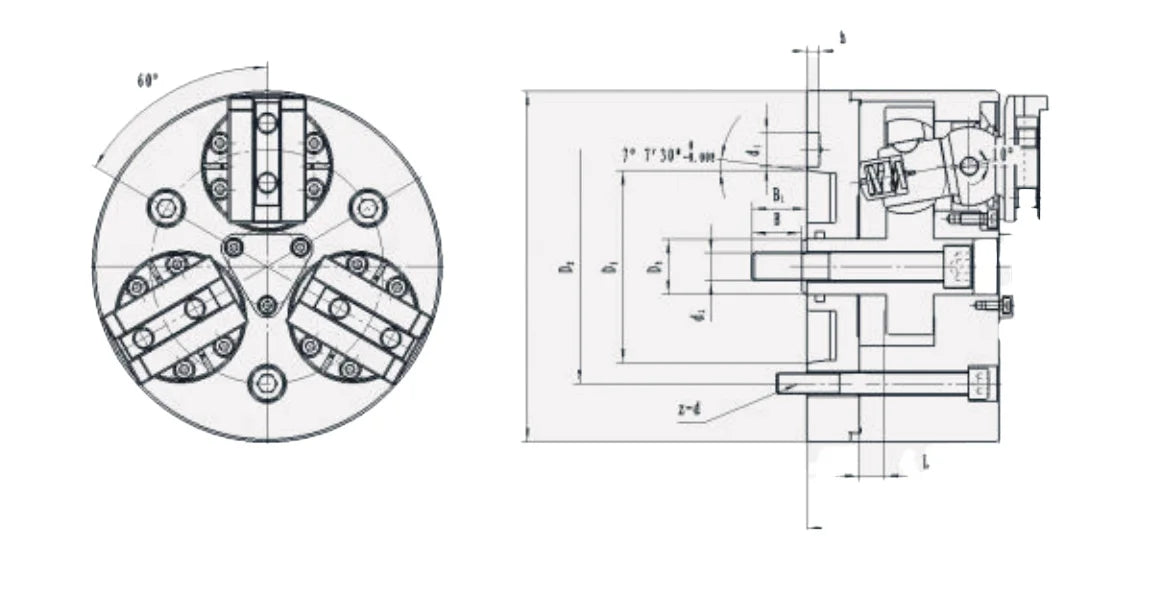

Main Installation Dimensions
| Model | 200 |
|---|---|
| D | 200 |
| D1 | 106.375 |
| D2 | 133.4 |
| D3 | 31.75 |
| d1 | 19.5 |
| d2 | M16 |
| H1 | 110 |
| H | 133 |
| h1 | 6.5 |
| P | 34 |
| Q max | 88.95 |
| Q min | 25.35 |
| R max | 25.15 |
| R min | 35 |
| B | 28.5 |
| B max | 45.7 |
| B min | 31.5 |
| z-d | 3-M12 |
Stroke and Performance Parameters
| Model | 200 |
|---|---|
| Wedge Stroke mm | 14.2 |
| Jaw Stroke(Diameter) mm | 9.5 |
| Allowable Push/Pull Force kN | 36 |
| Max Clamping Force kN | 108 |
| Max Speed r/min | 3500 |
| Clamping Range mm | 16-152 |
| Matching Cylinder | 125 |
| Weight kg | 27 |
Request a Quote
This product is supplied by quotation. Send your machine model, workpiece drawing, required clamping method and quantity so that the configuration can be reviewed before ordering.
