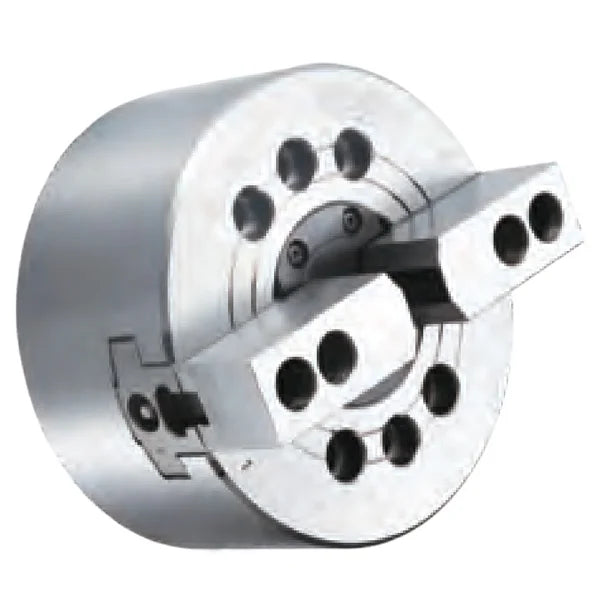

2K-08 A6 | 8 in 2-Jaw Hollow Hydraulic Power Chuck, A6 Mount
The TOP-TOOL 2K-08 A6 is a 8 in 2-jaw hollow hydraulic power chuck for CNC lathes. The through-hole design is suitable for bar stock, tube stock, shafts and repeat turning. This model uses an A6 mount.
Technical Parameters
| Model | 2K-08 A6 |
|---|---|
| Chuck Size | 8 in |
| Jaw Count | 2 |
| Chuck Construction | Hollow |
| Mount Type | A6 |
| Actual Chuck Diameter | 210 mm |
| Through Hole | 52 mm |
| Max Speed | 5000 r/min |
| Max Gripping Force | 85.8(8750) kN (kgf) |
| Plunger Stroke | 16 mm |
This product is supplied by quotation. Send your machine model, spindle nose details, workpiece drawing and required quantity so that the chuck configuration and matching hydraulic cylinder can be reviewed before ordering.
