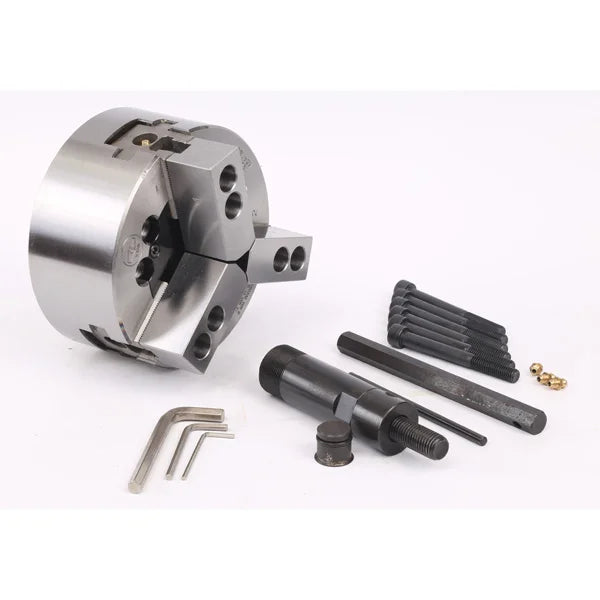

3S-10 A6 | 10 in 3-Jaw Solid Hydraulic Power Chuck, A6 Mount
The TOP-TOOL 3S-10 A6 is a 10 in 3-jaw solid-center hydraulic power chuck for CNC lathes. It is intended for applications where through-spindle feeding is not required. This model uses an A6 mount.
Technical Parameters
| Model | 3S-10 A6 |
|---|---|
| Chuck Size | 10 in |
| Jaw Count | 3 |
| Chuck Construction | Solid |
| Mount Type | A6 |
| Actual Chuck Diameter | 254 mm |
| Through Hole | 34 mm |
| Max Speed | 4000 r/min |
| Max Gripping Force | 107.8(11000) kN (kgf) |
| Plunger Stroke | 25 mm |
This product is supplied by quotation. Send your machine model, spindle nose details, workpiece drawing and required quantity so that the chuck configuration and matching hydraulic cylinder can be reviewed before ordering.
