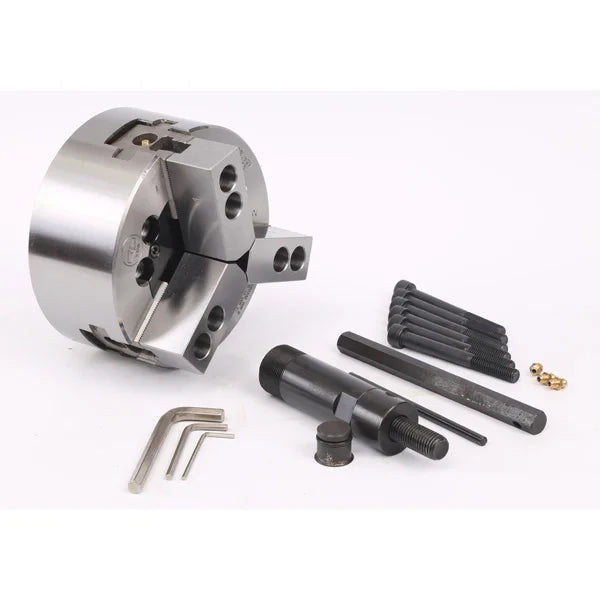

3S-21 A11 | 21 in 3-Jaw Solid Hydraulic Power Chuck, A11 Mount
The TOP-TOOL 3S-21 A11 is a 21 in 3-jaw solid-center hydraulic power chuck for CNC lathes. It is intended for applications where through-spindle feeding is not required. This model uses an A11 mount.
Technical Parameters
| Model | 3S-21 A11 |
|---|---|
| Chuck Size | 21 in |
| Jaw Count | 3 |
| Chuck Construction | Solid |
| Mount Type | A11 |
| Actual Chuck Diameter | 530 mm |
| Max Speed | 1900 r/min |
This product is supplied by quotation. Send your machine model, spindle nose details, workpiece drawing and required quantity so that the chuck configuration and matching hydraulic cylinder can be reviewed before ordering.
