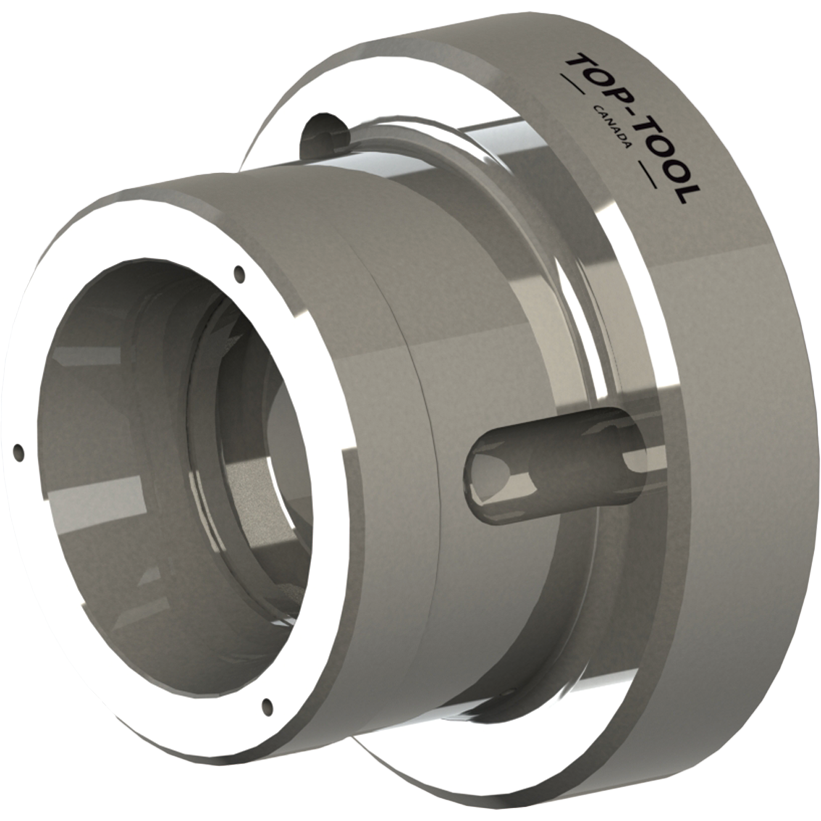

42 mm | Through-Hole Rubber-Flex Collet Chuck
The TOP-TOOL 42 Through-Hole Rubber-Flex Collet Chuck is designed for rubber-flex clamping of through-hole workpieces in CNC workholding applications.
This series uses a through-hole rubber-flex clamping structure and is selected according to chuck size, workpiece shape, clamping range and repeatability requirement.
Key Features
- Rubber-flex clamping provides broad contact around the workpiece.
- Suitable for workpieces requiring stable, repeatable and surface-sensitive clamping.
- Different series support through-hole, blind-hole, inner-stop, expanding, air-operated, accessory and multi-spindle applications.
- Model selection is based on clamping range, chuck size, mounting method and repeatability requirement.
Typical Applications
- Round, square or hexagonal workpieces
- Thin-wall or surface-sensitive parts
- Workpieces requiring broad contact clamping
- Repeat CNC workholding applications
- Applications where jaw marks or point contact should be reduced
- Rubber-flex collet setup, changeover or preparation workflows where applicable
Selection Notes
- Confirm the workpiece shape and clamping diameter.
- Check whether the application requires through-hole, blind-hole, inner-stop, expanding, air-operated or multi-spindle clamping.
- Review clamping range, mounting method and repeatability.
- Confirm whether a chuck assembly, replaceable rubber-flex collet element or supporting tool is required.
- Send the workpiece drawing and machine information for technical review before ordering.
Technical Specifications
型号与尺寸参数
| 规格 | 42 |
|---|---|
| 行程（mm） | 2+2.5 |
| 最大拉力（kN） | 35 |
| 最大径向夹紧力（kN） | 80 |
| 最大夹持直径（mm） | 42 |
| 推荐工件公差（mm） | ±0.5 |
| 最高转速（r/min） | 7000 |
Request a Quote
This product is supplied by quotation. Send your machine model, workpiece drawing, clamping range, required repeatability and quantity so that the configuration can be reviewed before ordering.
