80 mm | Vertical Hydraulic Rubber Collet Chuck

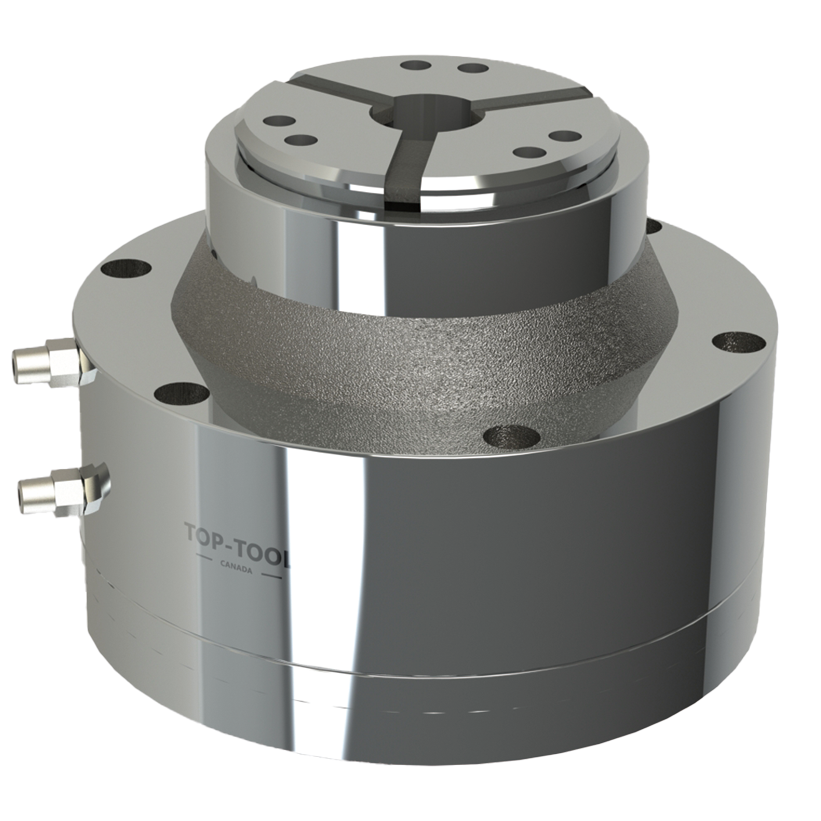

The TOP-TOOL 80 Vertical Hydraulic Rubber Collet Chuck is designed for fixed or vertical workholding applications requiring hydraulic actuation and rubber-flex clamping.
This vertical hydraulic rubber collet chuck is selected according to chuck size, installation bolt pattern, clamping range and machine fixture layout.
Key Features
- Rubber-flex clamping provides broad contact around the workpiece.
- Suitable for workpieces requiring stable, repeatable and surface-sensitive clamping.
- Different series support through-hole, blind-hole, inner-stop, expanding, air-operated, accessory and multi-spindle applications.
- Model selection is based on clamping range, chuck size, mounting method and repeatability requirement.
Typical Applications
- Round, square or hexagonal workpieces
- Thin-wall or surface-sensitive parts
- Workpieces requiring broad contact clamping
- Repeat CNC workholding applications
- Applications where jaw marks or point contact should be reduced
- Rubber-flex collet setup, changeover or preparation workflows where applicable
Selection Notes
- Confirm the workpiece shape and clamping diameter.
- Check whether the application requires through-hole, blind-hole, inner-stop, expanding, air-operated or multi-spindle clamping.
- Review clamping range, mounting method and repeatability.
- Confirm whether a chuck assembly, replaceable rubber-flex collet element or supporting tool is required.
- Send the workpiece drawing and machine information for technical review before ordering.
Technical Specifications
Model and Dimensional Parameters

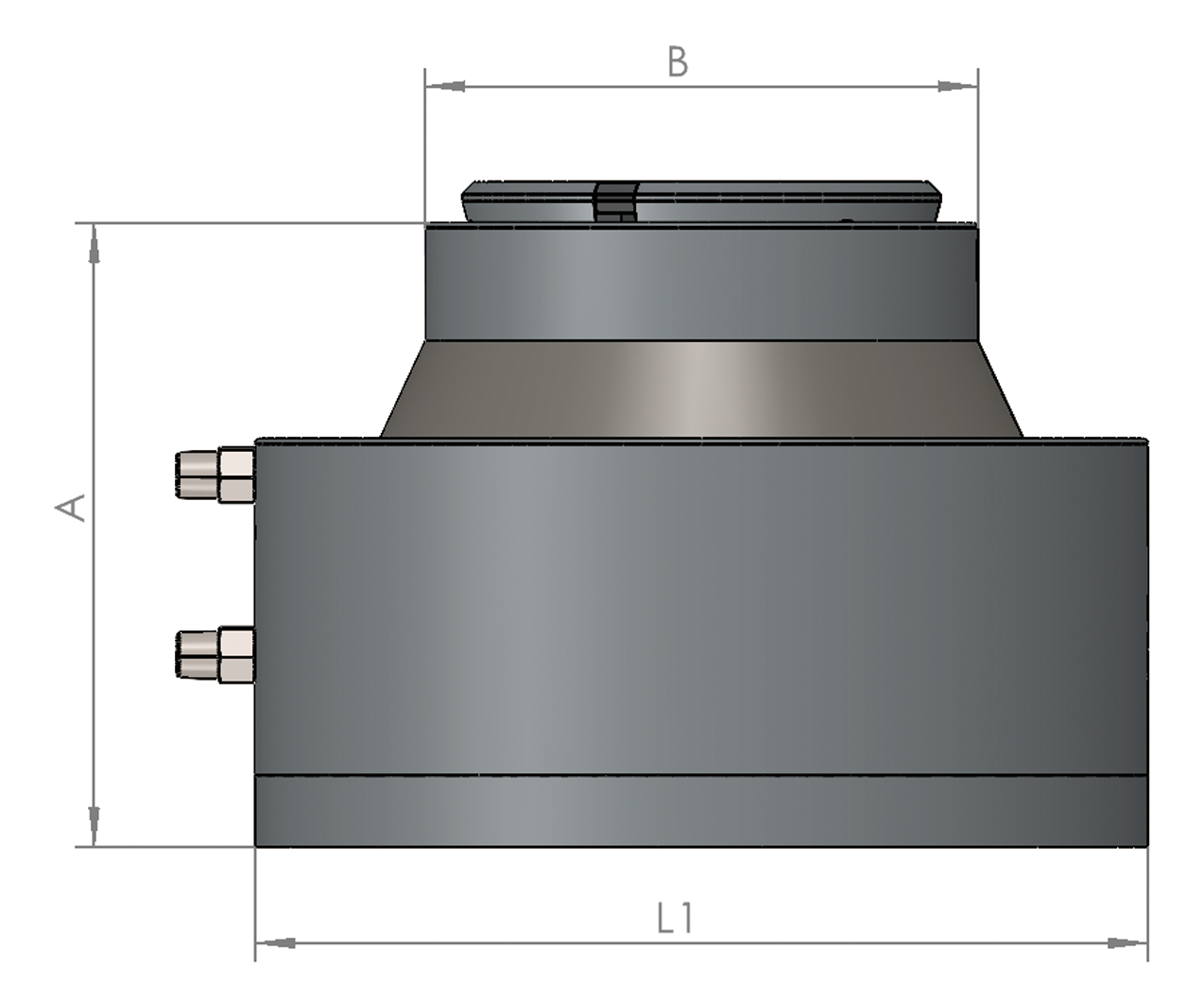

| Model | 80 |
|---|---|
| A (mm) | 130 |
| B (mm) | 160 |
| L1 (mm) | 186 |
| MountingBolt | PCD Ø194（M8） |
| Clamping Range (mm) | 16–80 |
Request a Quote
This product is supplied by quotation. Send your machine model, workpiece drawing, clamping range, required repeatability and quantity so that the configuration can be reviewed before ordering.
