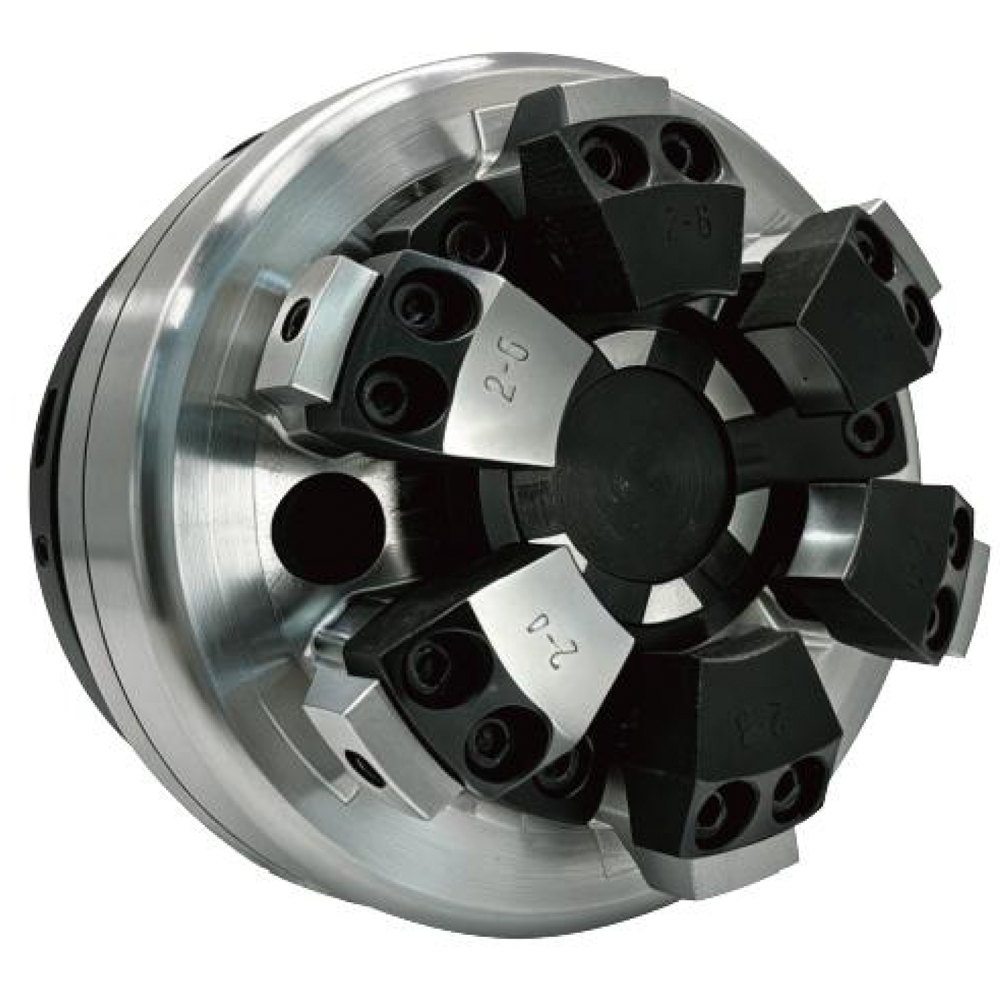

BD-P327-148 A2-8 | BD-P Jaw-Type Diaphragm Chuck
The BD-P327-148 A2-8 BD-P jaw-type diaphragm chuck is a model-level RFQ product for CNC lathe and precision workholding applications where the chuck interface, dimensions, clamping range, draw force, speed limit and workpiece requirements must be confirmed before supply.

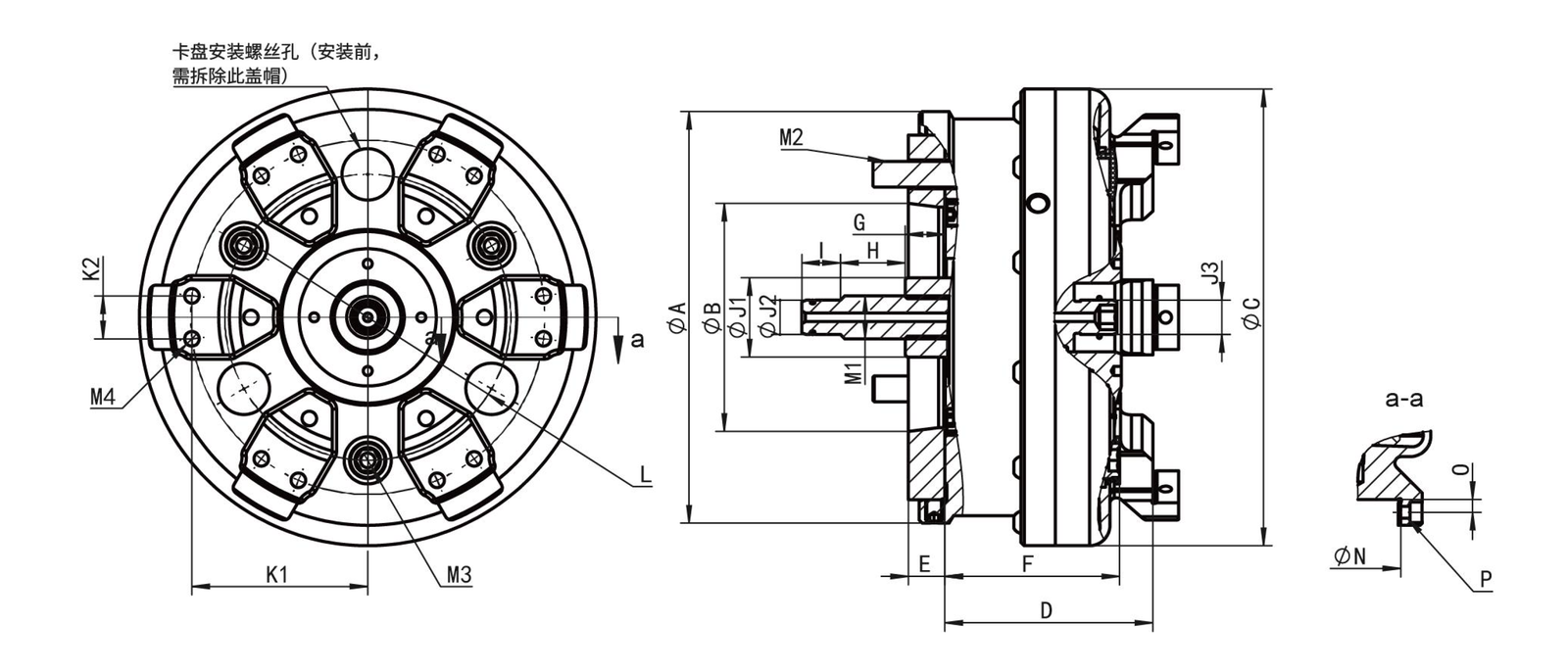

Technical Specifications
| Model | BD-P327-148 |
|---|---|
| Interface | A2-8 |
| A | 285 |
| B | 139.719 |
| C | 327 |
| D | 114.5 |
| E | 18 |
| F | 95.5 |
| Gmax | 34 |
| Gmin | 32.5 |
| H | 36 |
| I | 20 |
| J1 | 48 |
| J2 | 19 |
| K1 | 135 |
| K2 | 30 |
| L | 171.4 |
| M1 | M24 |
| M2 | 3-M16 |
| M3 | 3-M10 |
| M4 | 6-2XM10 |
| N (H6) | 300 |
| O | 7 |
| P | 3-φ4.5 |
| Jaw Stroke (diameter) mm | 0.5 |
| Jaw Count | 6 |
| Clamping Range mm | 150–248 |
| Maximum Draw Force kN (kgf) | 54.9 (5600) |
| Maximum Speed r/min | 3000 |
| Weight kg | 50 |
Selection Information
Before requesting a quote, confirm the machine model, spindle or mounting interface, workpiece drawing, clamping diameter, clamping direction, required stroke, draw force requirement, speed requirement and quantity.
Typical Applications
- CNC lathe workholding where diaphragm chuck selection must be reviewed by model and interface
- Precision turning setups requiring jaw-type diaphragm chuck clamping
- Thin-wall or deformation-sensitive workpiece clamping where application review is required
- Workholding replacement or new fixture planning for model-specific chuck setups
- RFQ workholding projects requiring interface, mounting and clamping data review
What to Confirm Before Ordering
- Machine model and spindle or mounting interface
- Workpiece drawing and clamping diameter
- Required jaw count, clamping range and clamping direction
- Draw force or actuation requirement
- Operating speed requirement and quantity
Related Resources
FAQ
What is the BD-P327-148 A2-8 BD-P jaw-type diaphragm chuck used for?
It is used for CNC lathe and precision workholding applications where the chuck interface, jaw-type diaphragm clamping configuration and workpiece requirements must be reviewed before selection.
What information is needed for a quote?
Send the machine model, spindle or mounting interface, workpiece drawing, clamping diameter, clamping direction, draw force requirement, operating speed requirement and quantity.
Can the listed draw force, speed or clamping range be treated as a production guarantee?
No. Listed technical data is for model identification and quotation review. Final suitability must be confirmed according to the actual machine, workpiece and production conditions.
Does this diaphragm chuck guarantee zero deformation?
No. Diaphragm chuck selection is application-dependent. Workpiece deformation risk depends on the workpiece geometry, material, clamping method, machining condition and fixture setup.
Is this product sold by quote?
Yes. This jaw-type diaphragm chuck is handled as an RFQ product because the correct model depends on interface, workpiece size, clamping range, draw force and application details.
Request a Quote
Request a quote with your machine model, interface, workpiece drawing and clamping requirements.
