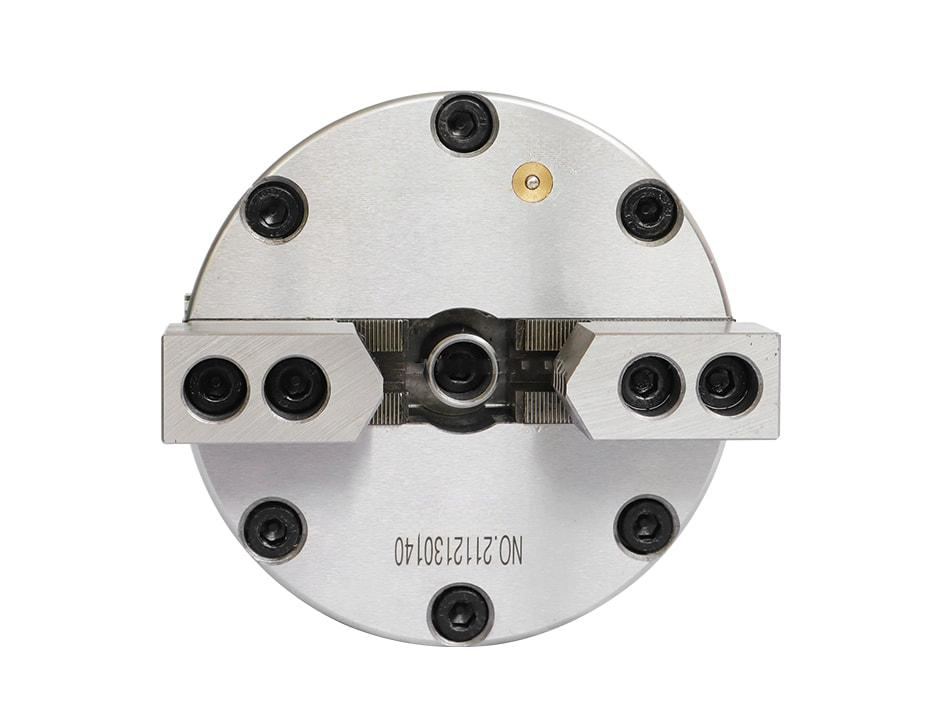

BK110SQ-2 | 110 mm 2-Jaw Solid Pneumatic Chuck
The TOP-TOOL BK110SQ-2 is a 110 mm 2-jaw solid pneumatic chuck for air-operated workholding applications. Its two-jaw configuration is suitable for setups that require two-point gripping and repeatable pneumatic clamping.
This pneumatic chuck uses a solid body structure without a through-hole. It is selected according to the workpiece shape, required gripping range, available air pressure and machining conditions.
Key Features
- Air-operated clamping for repeatable loading and unloading cycles.
- Solid chuck body for applications that do not require a through-hole.
- Multiple chuck sizes available for different workpiece ranges.
- Technical parameters are provided for model selection.
Typical Applications
- Pneumatic workholding setups
- Repeat loading and unloading operations
- Machining applications requiring air-operated clamping
- Model selection based on chuck size, gripping range and installation method
Selection Notes
- Confirm the workpiece dimensions and required gripping range.
- Check whether a solid, semi-through-hole or through-hole structure is required.
- Review the allowable air pressure, jaw stroke, clamping force and maximum speed.
- Send the machine information and workpiece drawing for technical review before ordering.

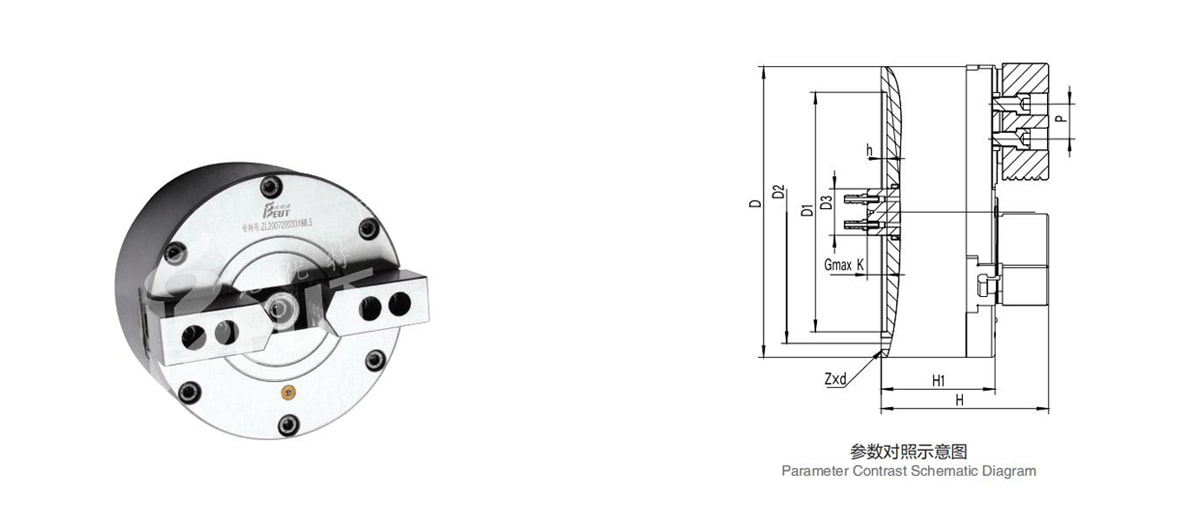

Technical Specifications
| Model | BK110SQ-2 |
|---|---|
| D | 115 |
| D1 | 72 |
| D2 | 102 |
| D3 | 22 |
| H | 106 |
| H1 | 81 |
| h | 3 |
| Gmax K | 17 |
| p | 16 |
| Z × d | 3-M8 |
| Power Wedge Serration | 1×53° |
| Matching Jaw Model | BK110Z1 |
| Jaw Stroke t (Diameter, mm) | 3.7 |
| Max. Clamping Force (kN) | 14 |
| Max. Expanding Force (kN) | 7.4 |
| Allowable Pressure (MPa) | 0.4–0.8 |
| Max. Speed (r/min) | 4800 |
| Clamping Range (mm) | 2–115 |
| Expanding Range (mm) | 15–120 |
| Net Weight (kg) | 6 |
