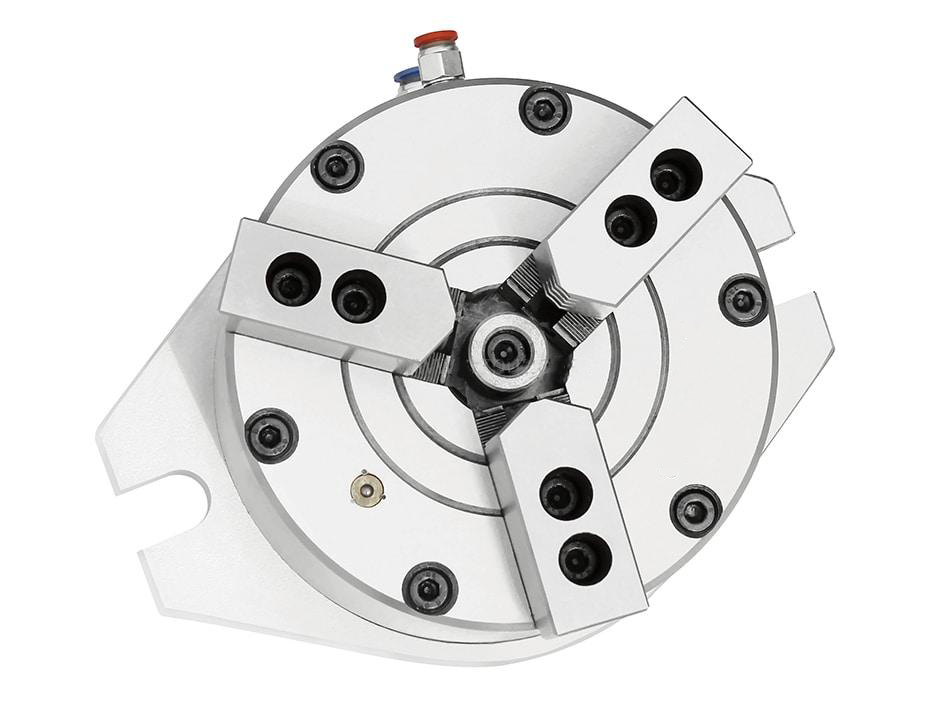

BK130SL | 130 mm 3-Jaw Vertical Solid Pneumatic Chuck
The TOP-TOOL BK130SL is a 130 mm 3-jaw vertical solid pneumatic chuck for fixed or vertical mounting applications that do not require a through-hole.
The solid body structure is suitable for stationary pneumatic clamping setups where rear clearance is not required.
Key Features
- Air-operated clamping for repeatable loading and unloading cycles.
- Solid chuck body for applications that do not require a through-hole.
- Multiple chuck sizes available for different workpiece ranges.
- Technical parameters are provided for model selection.
Typical Applications
- Pneumatic workholding setups
- Repeat loading and unloading operations
- Machining applications requiring air-operated clamping
- Model selection based on chuck size, gripping range and installation method
Selection Notes
- Confirm the workpiece dimensions and required gripping range.
- Check whether a solid, semi-through-hole or through-hole structure is required.
- Review the allowable air pressure, jaw stroke, clamping force and maximum speed.
- Send the machine information and workpiece drawing for technical review before ordering.

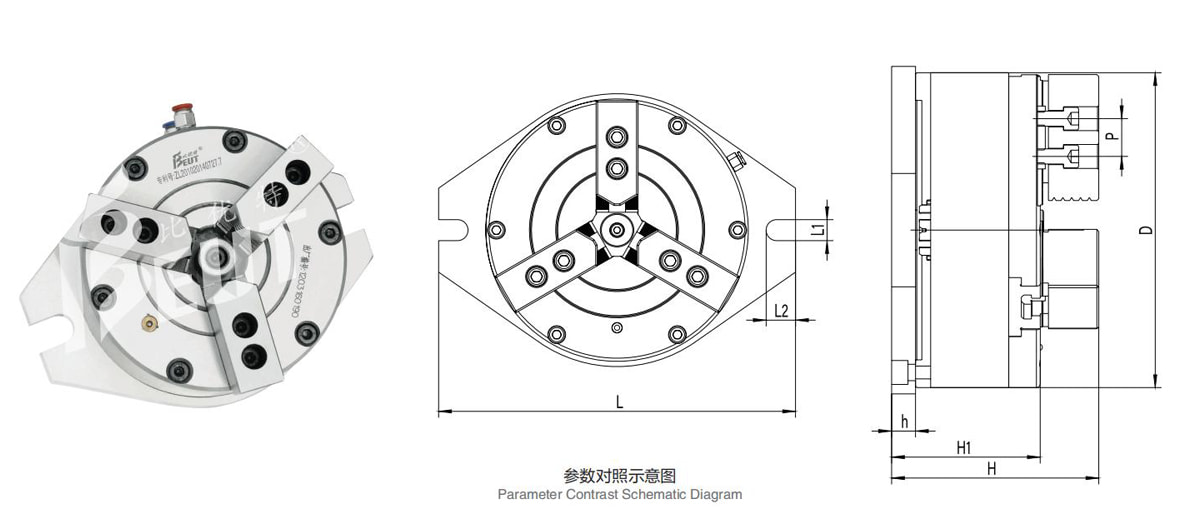

Technical Specifications
| Model | BK130SL |
|---|---|
| D | 135 |
| L | 205 |
| L1 | 18 |
| L2 | 24 |
| H | 142 |
| H1 | 111 |
| h | 19 |
| p | 18 |
| Power Wedge Serration | 1×53° |
| Matching Jaw Model | BK130Z1 |
| Jaw Stroke t (Diameter, mm) | 3.2 |
| Max. Clamping Force (kN) | 21.2 |
| Max. Expanding Force (kN) | 11.5 |
| Allowable Pressure (MPa) | 0.4–0.8 |
| Clamping Range (mm) | 2–130 |
| Expanding Range (mm) | 20–140 |
| Net Weight (kg) | 12 |
Request a Quote
This product is supplied by quotation. Send your machine model, workpiece drawing, required clamping method and quantity so that the configuration can be reviewed before ordering.
