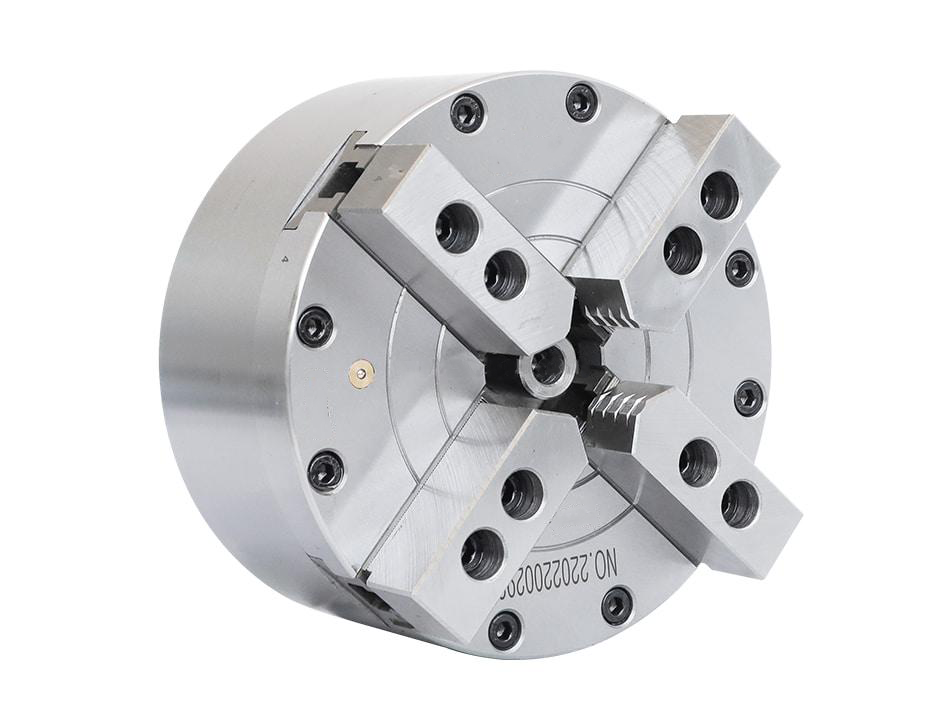

BK160SQ-4 | 160 mm 4-Jaw Solid Pneumatic Chuck
The TOP-TOOL BK160SQ-4 is a 160 mm 4-jaw solid pneumatic chuck for air-operated workholding applications that require four-point gripping.
This pneumatic chuck uses a solid body and four-jaw clamping structure. Select the model according to the workpiece shape, gripping range, air pressure and machining load.
Key Features
- Air-operated clamping for repeatable loading and unloading cycles.
- Solid chuck body for applications that do not require a through-hole.
- Multiple chuck sizes available for different workpiece ranges.
- Technical parameters are provided for model selection.
Typical Applications
- Pneumatic workholding setups
- Repeat loading and unloading operations
- Machining applications requiring air-operated clamping
- Model selection based on chuck size, gripping range and installation method
Selection Notes
- Confirm the workpiece dimensions and required gripping range.
- Check whether a solid, semi-through-hole or through-hole structure is required.
- Review the allowable air pressure, jaw stroke, clamping force and maximum speed.
- Send the machine information and workpiece drawing for technical review before ordering.

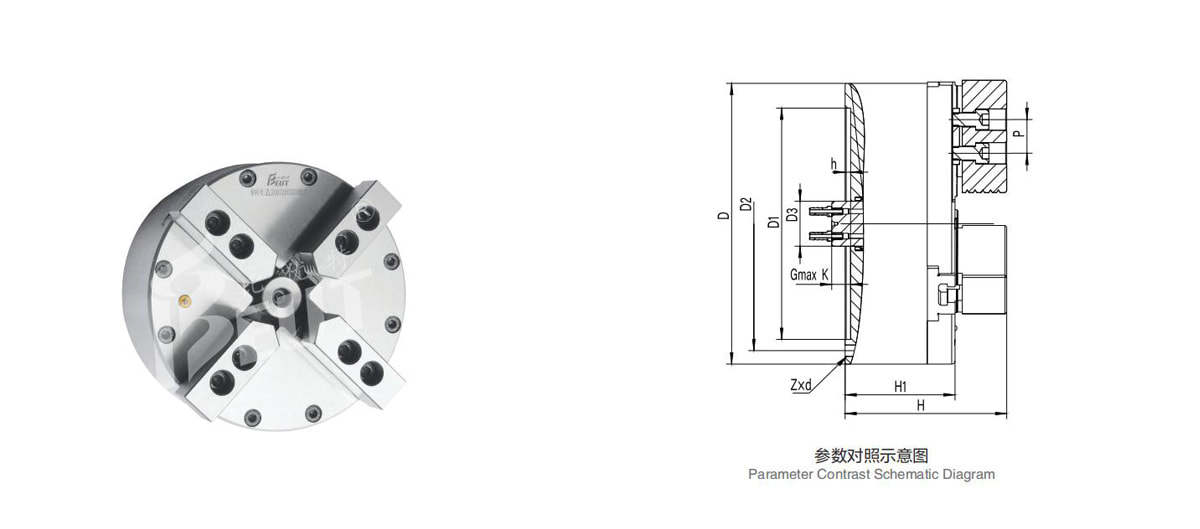

Technical Specifications
| Model | BK160SQ-4 |
|---|---|
| D | 172 |
| D1 | 130 |
| D2 | 142 |
| D3 | 25 |
| H | 129 |
| H1 | 93 |
| h | 4.5 |
| Gmax K | 17.5 |
| p | 20 |
| Z × d | 3-M8 |
| Power Wedge Serration | 1×53° |
| Matching Jaw Model | BK160Z1 |
| Jaw Stroke t (Diameter, mm) | 3.7 |
| Max. Clamping Force (kN) | 36.5 |
| Max. Expanding Force (kN) | 19.3 |
| Allowable Pressure (MPa) | 0.4–0.8 |
| Max. Speed (r/min) | 4200 |
| Clamping Range (mm) | 2–170 |
| Expanding Range (mm) | 20–180 |
| Net Weight (kg) | 14 |
Request a Quote
This product is supplied by quotation. Send your machine model, workpiece drawing, required clamping method and quantity so that the configuration can be reviewed before ordering.
