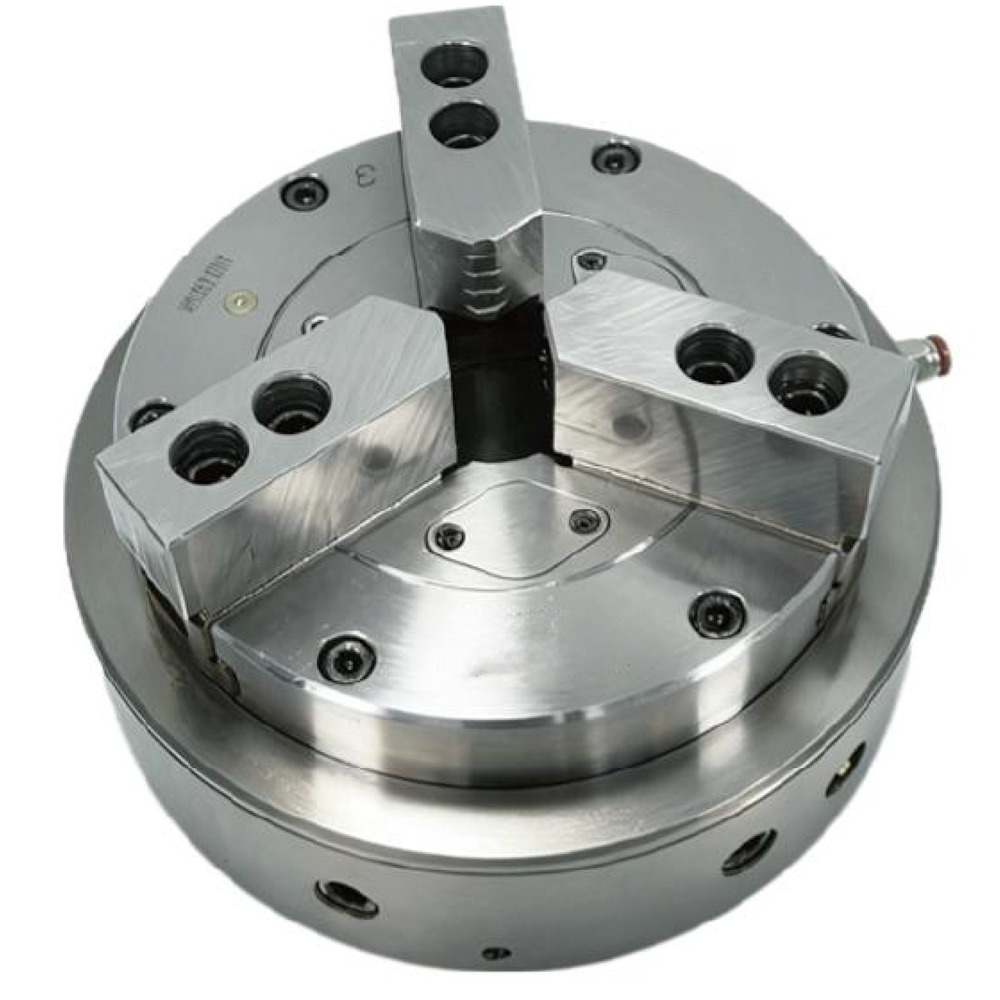

BK160TK | 160 mm Front-Mounted Through-Hole Pneumatic Chuck
The TOP-TOOL BK160TK is a 160 mm front-mounted through-hole pneumatic chuck for air-operated workholding applications requiring front-side installation and a through-hole structure.
This front-mounted pneumatic chuck is selected for applications that require a through-hole path and convenient front-side installation. Confirm the workpiece dimensions, installation space and air pressure before ordering.
Key Features
- Air-operated clamping for repeatable loading and unloading cycles.
- Through-hole or semi-through-hole structure for workpiece clearance.
- Multiple chuck sizes available for different workpiece ranges.
- Technical parameters are provided for model selection.
Typical Applications
- Pneumatic workholding setups
- Repeat loading and unloading operations
- Machining applications requiring air-operated clamping
- Model selection based on chuck size, gripping range and installation method
Selection Notes
- Confirm the workpiece dimensions and required gripping range.
- Check whether a solid, semi-through-hole or through-hole structure is required.
- Review the allowable air pressure, jaw stroke, clamping force and maximum speed.
- Send the machine information and workpiece drawing for technical review before ordering.

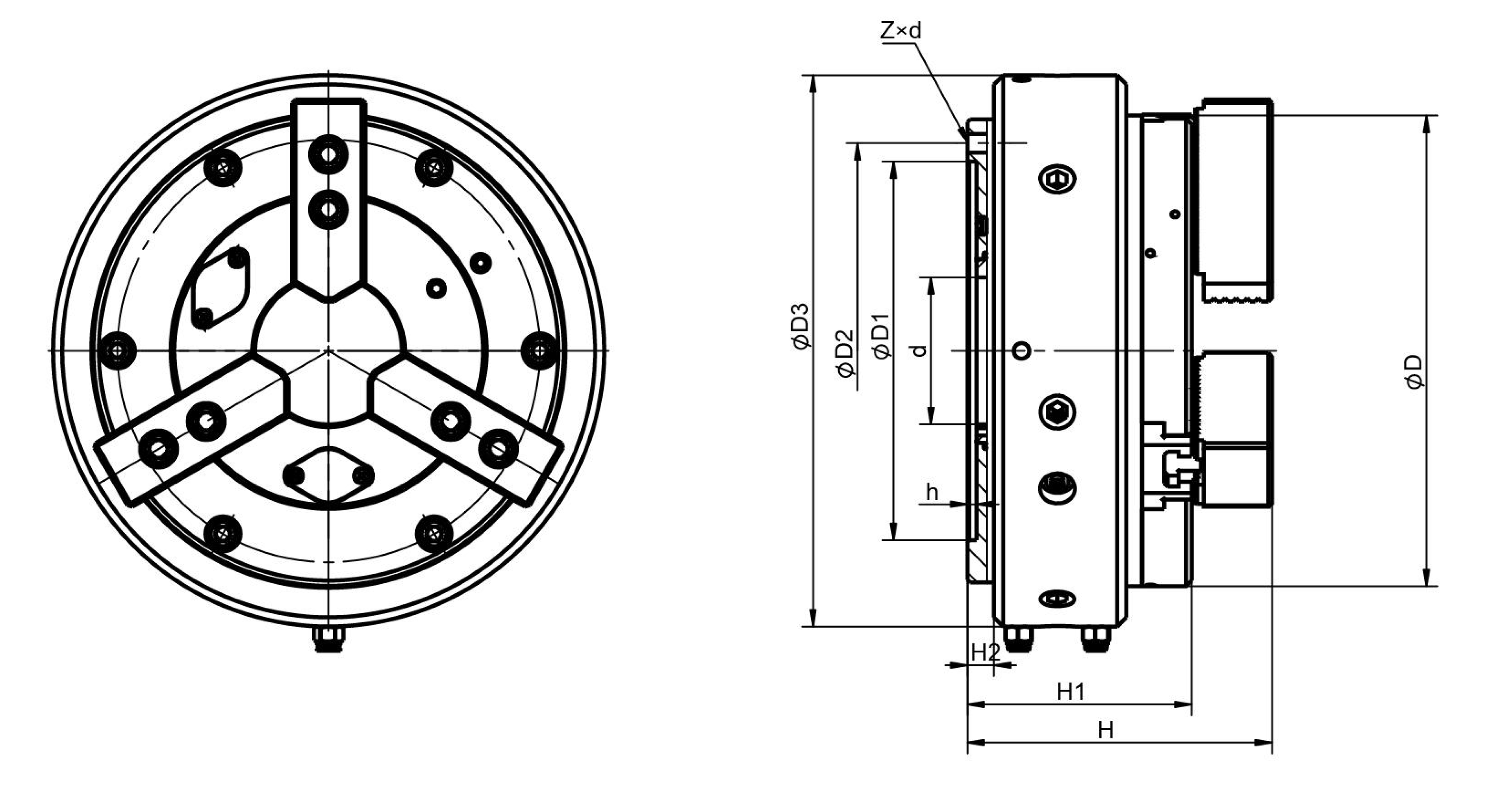

Technical Specifications
| Model | BK160TK |
|---|---|
| D | 175 |
| D1 | 130 |
| D2 | 142 |
| D3 | 219 |
| d | 35 |
| H | 143 |
| H1 | 107 |
| H2 | 4.5 |
| h | 5 |
| Z × d | 3-M8 |
| Power Wedge Serration | 1.5×60° |
| Matching Jaw Model | BK160Z2 |
| Jaw Stroke (Diameter, mm) | 4.2 |
| Max. Clamping Force (kN) | 31.5 |
| Max. Expanding Force (kN) | 14.9 |
| Allowable Pressure (MPa) | 0.4–0.8 |
| Max. Speed (r/min) | 2300 |
| Clamping Range (mm) | 2–170 |
| Expanding Range (mm) | 20–180 |
| Net Weight (kg) | 20 |
