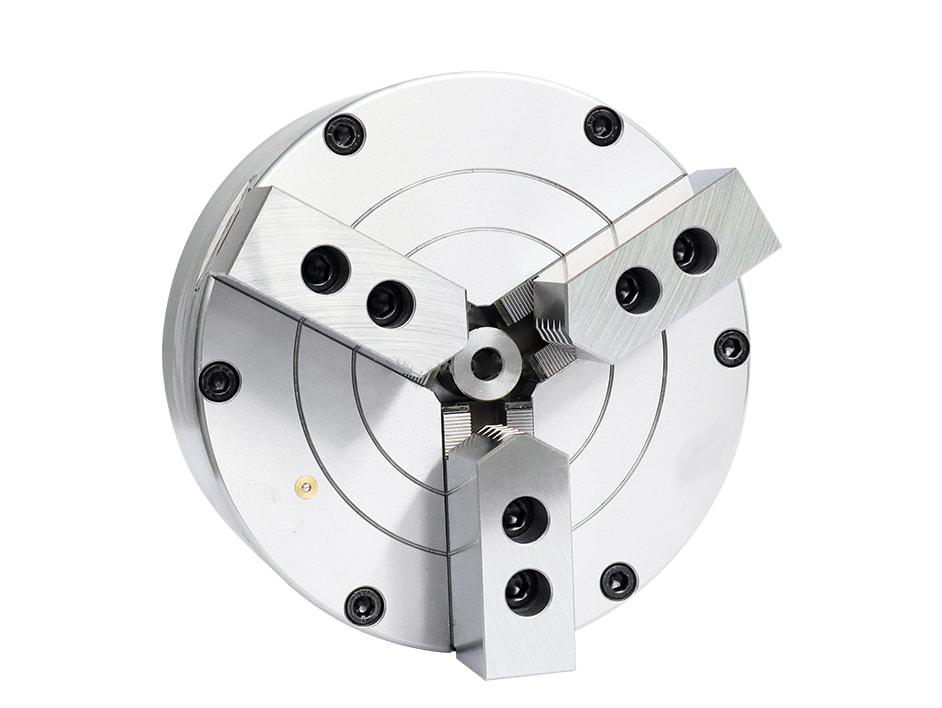

BK200SQ | 200 mm 3-Jaw Solid Pneumatic Chuck
The TOP-TOOL BK200SQ is a 200 mm 3-jaw solid pneumatic chuck for repeatable air-operated clamping of round workpieces.
The three-jaw self-centering structure is suitable for general pneumatic chuck applications where a solid body and repeatable clamping cycle are required.
Key Features
- Air-operated clamping for repeatable loading and unloading cycles.
- Solid chuck body for applications that do not require a through-hole.
- Multiple chuck sizes available for different workpiece ranges.
- Technical parameters are provided for model selection.
Typical Applications
- Pneumatic workholding setups
- Repeat loading and unloading operations
- Machining applications requiring air-operated clamping
- Model selection based on chuck size, gripping range and installation method
Selection Notes
- Confirm the workpiece dimensions and required gripping range.
- Check whether a solid, semi-through-hole or through-hole structure is required.
- Review the allowable air pressure, jaw stroke, clamping force and maximum speed.
- Send the machine information and workpiece drawing for technical review before ordering.

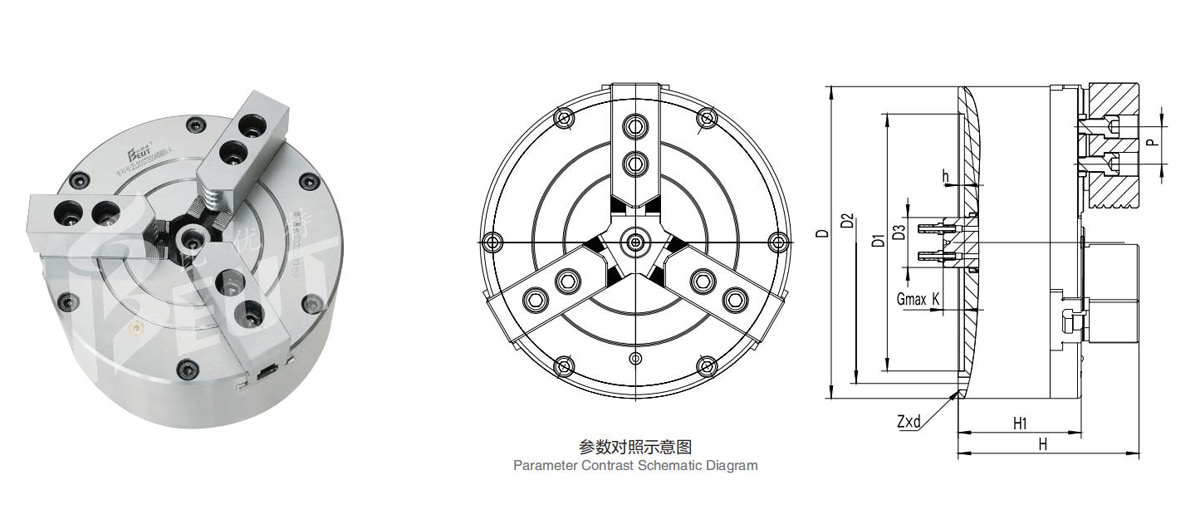

Technical Specifications
| Model | BK200SQ |
|---|---|
| D | 210 |
| D1 | 165 |
| D2 | 180 |
| d | 32 |
| H | 133 |
| H1 | 97 |
| h | 5 |
| Gmax K | 17 |
| Z × d | 3-M10 |
| Power Wedge Serration | 1×53° |
| Matching Jaw Model | BK200Z1 |
| Jaw Stroke t (Diameter, mm) | 4.2 |
| Max. Clamping Force (kN) | 53.8 |
| Max. Expanding Force (kN) | 30.7 |
| Allowable Pressure (MPa) | 0.4–0.8 |
| Max. Speed (r/min) | 5000 |
| Clamping Range (mm) | 5–210 |
| Expanding Range (mm) | 20–240 |
| Net Weight (kg) | 22.6 |
Request a Quote
This product is supplied by quotation. Send your machine model, workpiece drawing, required clamping method and quantity so that the configuration can be reviewed before ordering.
