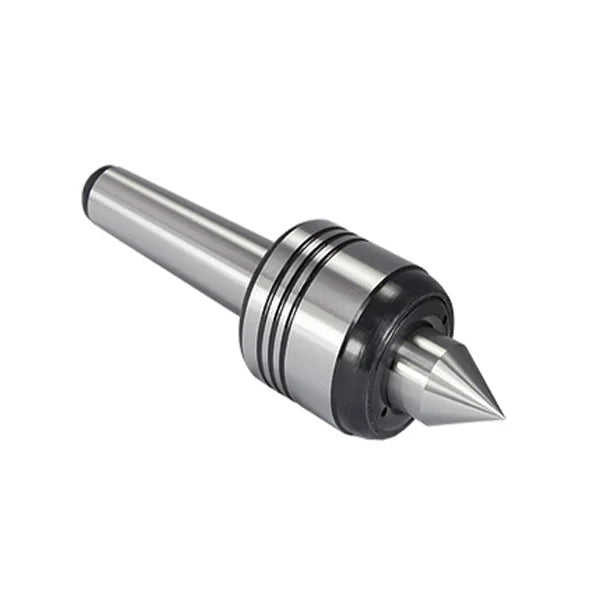

BZ-MT.4 | Medium-Duty Live Center
The BZ-MT.4 medium-duty live center is a model-level RFQ product for lathe tailstock support and turning applications where taper, speed, workpiece support requirement and machine fit must be confirmed before supply.

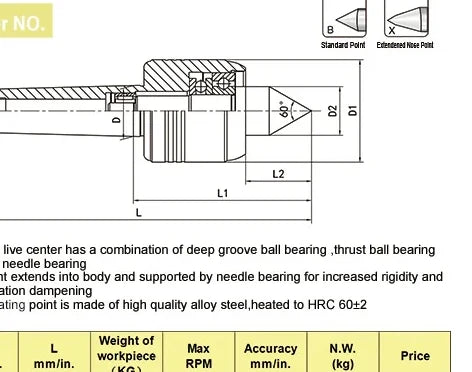

Technical Specifications
| Order No. | C021110 |
|---|---|
| Model | BZ-MT.4 |
| D (mm) | 31.267 |
| D1 (mm) | 63 |
| D2 (mm) | 28 |
| L1 (mm) | 115 |
| L2 (mm) | 40 |
| L (mm) | 225 |
| Max. RPM | 2000 |
| Accuracy (mm) | 0.008 |
| Workpiece Weight (kg) | 600 |
| Net Weight (kg) | 2.5 |
Selection Information
Before requesting a quote, confirm the lathe model, tailstock taper, workpiece weight requirement, maximum operating speed, center dimensions, available clearance and quantity.
Typical Applications
- Lathe tailstock support for turning operations
- Workpiece support for medium-duty turning setups where the model must be reviewed carefully
- Machine tool accessory replacement
- Toolroom and production turning setups
- Morse taper live center selection and specification matching
What to Confirm Before Ordering
- Lathe model and tailstock taper
- Required live center size and support geometry
- Workpiece weight and turning speed requirement
- Available length and nose clearance
- Quantity and application details
Related Resources
FAQ
What is the BZ-MT.4 medium-duty live center used for?
It is used for lathe tailstock support in turning setups where taper, workpiece support requirement, operating speed and machine fit must be reviewed before selection.
What information is needed for a quote?
Send the lathe model, tailstock taper, workpiece weight, turning speed, required center dimensions, application details and quantity.
Can the listed RPM, accuracy or workpiece weight be used as a production guarantee?
No. Any listed technical data is for model identification and quotation review. Final suitability must be confirmed according to the actual machine, workpiece and production conditions.
Is this product sold by quote?
Yes. This live center is handled as an RFQ product because the correct model depends on taper, workpiece size, speed requirement and application details.
Request a Quote
Request a quote with your lathe model, taper, workpiece weight and turning application requirements.
