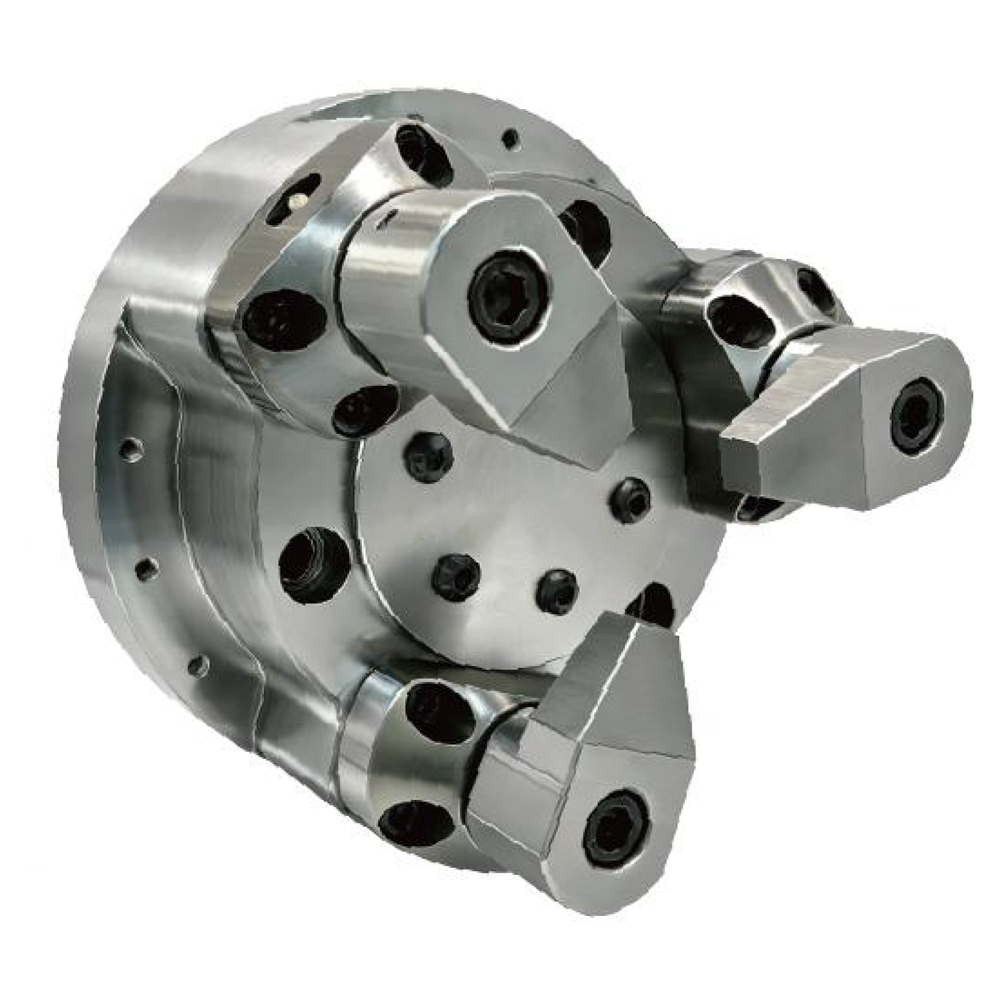

FK-10 | 10 in Finger / Face-Clamping Chuck
The TOP-TOOL FK-10 is a 10 in finger / face-clamping chuck for CNC lathe applications. The finger-type clamping elements contact the end face or limited clamping areas, helping keep more of the outside diameter accessible for machining.
This finger / face-clamping chuck is used when the workpiece cannot be held deeply from the outside diameter. It is suitable for thin rings, short workpieces, disc-type parts and components where outside-diameter gripping would interfere with machining.
Key Features
- Face-clamping structure holds the workpiece from the end face or a limited contact area.
- Finger-type clamping elements are useful when conventional jaw contact is not suitable.
- Leaves more outside surface available for machining.
- Suitable for thin rings, short blanks and disc-type workpieces.
- Designed for specific CNC lathe clamping problems rather than general jaw chuck use.
Typical Applications
- Thin ring parts
- Short workpieces
- Disc-type components
- Workpieces with outside-diameter machining interference
- Parts requiring end-face clamping
Selection Notes
- Confirm whether the part can be clamped from the end face.
- Check the available clamping area, wall thickness and part rigidity.
- Review whether outside-diameter clamping interferes with machining.
- Confirm clamping force, finger stroke and locating method.
- For thin-wall parts, review deformation risk before ordering.
Technical Specifications

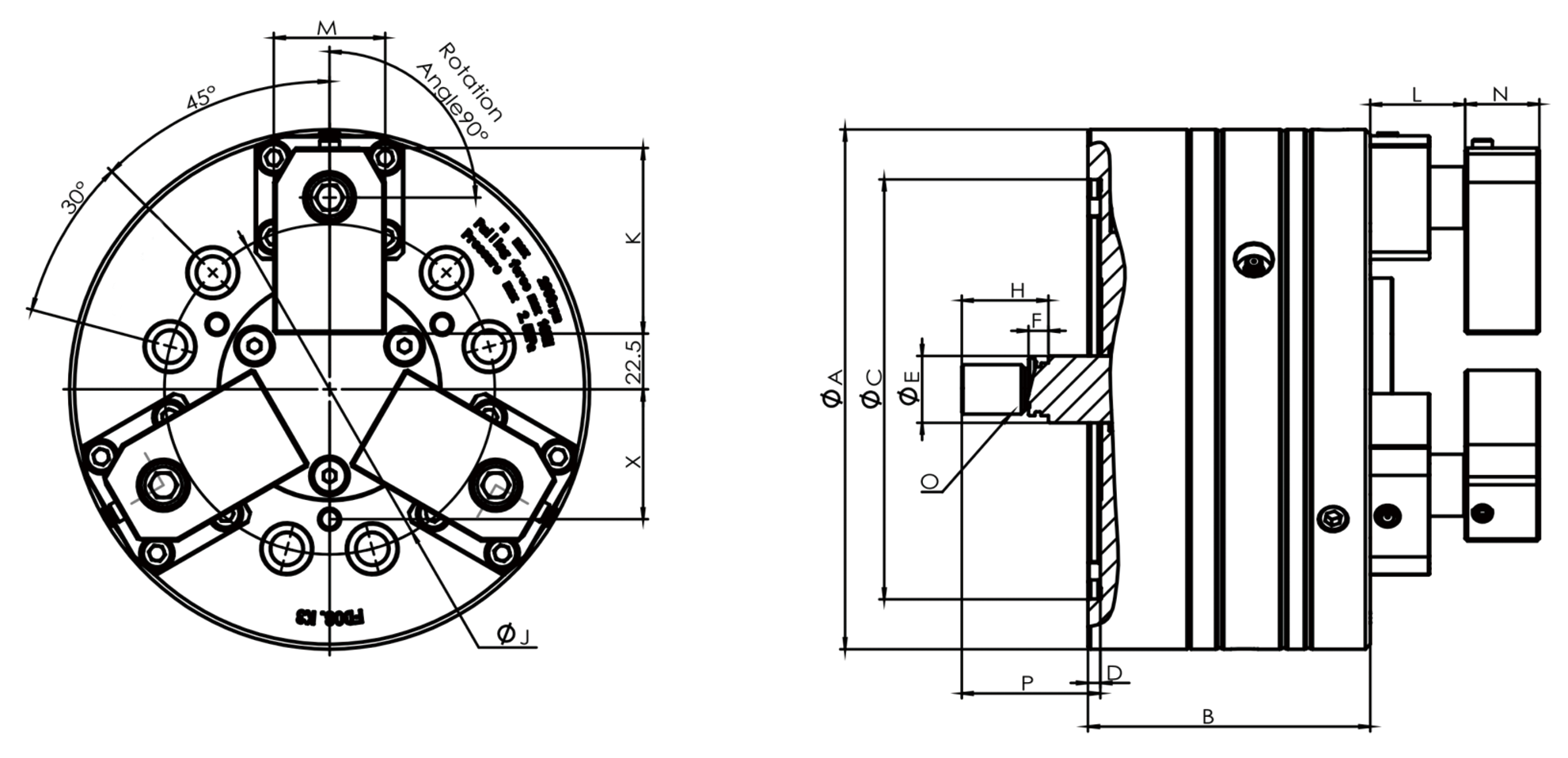

Main Installation Dimensions
| Model | FK-10 |
|---|---|
| A | 254 |
| B | 120 |
| C | 220 |
| D | 5 |
| E | 30 |
| F | 8 |
| H | 35 |
| I | 38.3-58.3 |
| N | 30 |
| O | M20*2.5 |
| P | 56-76 |
Stroke and Performance Parameters
| Model | FK-10 |
|---|---|
| Jaw Swing Stroke mm | 12 |
| Jaw Vertical Stroke mm | 8 |
| Jaw Compensation mm | 2 |
| Max Clamping Force kN | 26 |
| Max Speed r/min | 2400 |
| Net Weight kg | 37 |
Request a Quote
This product is supplied by quotation. Send your machine model, workpiece drawing, required clamping method and quantity so that the configuration can be reviewed before ordering.
