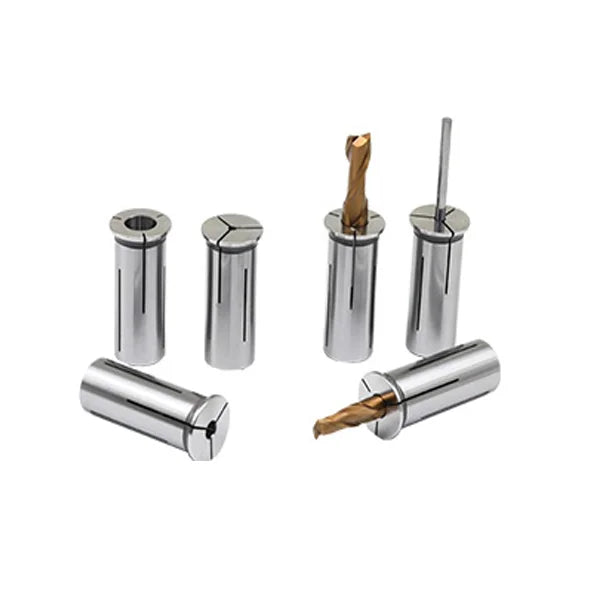

HC20-4 | Reduction Sleeves for Hydraulic Tool Holders
The HC20-4 reduction sleeve is a model-level RFQ accessory for hydraulic tool holders. It is selected when the required inner diameter, outer diameter, sleeve length and tool holder fit must be confirmed before supply.
Technical Specifications
| Order No. | A012112 |
|---|---|
| Model | HC20-4 |
| Inner Diameter Φd (mm) | 4 |
| Outer Diameter ΦD (mm) | 20 |
| L (mm) | 53.5 |
| L1 (mm) | 50.5 |
Selection Information
Before requesting a quote, confirm the hydraulic tool holder model, required tool shank diameter, sleeve inner diameter, sleeve outer diameter, length, available clearance and quantity.
Typical Applications
- Reducing hydraulic tool holder bore size for smaller tool shanks
- CNC toolholding setup adjustment
- Hydraulic holder accessory replacement
- Toolroom and production machining setups
- Machine tool accessory specification matching
What to Confirm Before Ordering
- Hydraulic tool holder model or bore size
- Tool shank diameter
- Required sleeve inner diameter and outer diameter
- Sleeve length and fit clearance
- Quantity and application details
Related Resources
FAQ
What is the HC20-4 reduction sleeve used for?
It is used as an accessory for hydraulic tool holders when a smaller tool shank needs to be fitted into a larger holder bore. Final selection depends on inner diameter, outer diameter, sleeve length and holder fit.
What information is needed for a quote?
Send the hydraulic tool holder model or bore size, tool shank diameter, required sleeve dimensions, application details and quantity.
Is this product sold by quote?
Yes. This reduction sleeve is handled as an RFQ product because the correct accessory depends on holder bore, tool shank size and application requirements.
Request a Quote
Request a quote with your hydraulic tool holder model, tool shank diameter and sleeve size requirements.
