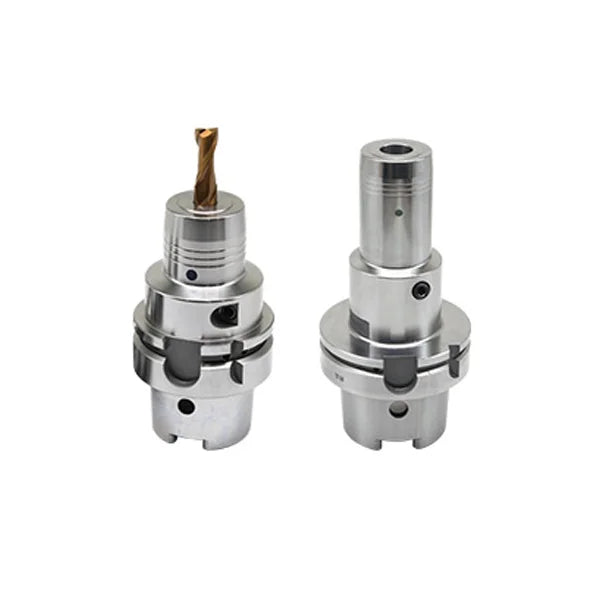

HSK40E-PHC06S-60 | HSK Hydraulic Tool Holder
The HSK40E-PHC06S-60 HSK hydraulic tool holder is a model-level RFQ product for CNC machining and precision toolholding setups. It is selected when the required HSK interface, clamping diameter, holder dimensions, insertion length and machine fit must be confirmed before supply.
Technical Specifications
| Order No. | A011117 |
|---|---|
| Model | HSK40E-PHC06S-60 |
| Clamping Diameter Φd (mm) | 6 |
| ΦD1 (mm) | 14 |
| ΦD2 (mm) | 33 |
| L (mm) | 60 |
| L1 (mm) | 29 |
| Min. Insertion Length C1 (mm) | 25 |
| Max. Insertion Length C (mm) | 44 |
| Net Weight (kg) | 0.32 |
Selection Information
Before requesting a quote, confirm the CNC machine spindle interface, required HSK type, clamping diameter, tool shank size, holder dimensions, insertion length, available clearance and quantity.
Typical Applications
- CNC machining center toolholding setups
- Precision hydraulic clamping of round tool shanks
- HSK spindle tooling applications
- Toolroom and production machining setups
- Machine tool accessory replacement or specification matching
What to Confirm Before Ordering
- Machine model and HSK spindle interface
- Required clamping diameter
- Tool shank size and insertion length
- Holder outside diameter and length clearance
- Quantity and application details
Related Resources
FAQ
What is the HSK40E-PHC06S-60 HSK hydraulic tool holder used for?
It is used for hydraulic toolholding in CNC machining setups with an HSK spindle interface. Final selection depends on HSK type, clamping diameter, holder dimensions, tool shank, insertion length and machine fit.
What information is needed for a quote?
Send the machine model, HSK interface, required clamping diameter, tool shank size, holder length requirements, available clearance and quantity.
Is this product sold by quote?
Yes. This tool holder is handled as an RFQ product because the correct model depends on machine interface, tool size and application requirements.
Request a Quote
Request a quote with your machine model, HSK interface, required clamping diameter and toolholding requirements.
