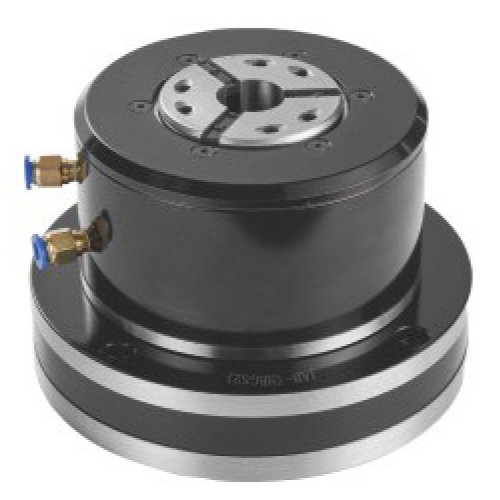

JAB-SK32 | JAB-SK High-Speed Pneumatic Clamping Head Chuck
The TOP-TOOL JAB-SK32 JAB-SK High-Speed Pneumatic Clamping Head Chuck is designed for rotary segmented clamping applications where air-operated actuation, speed and uniform workpiece support are required.
This series combines pneumatic actuation with segmented clamping and should be selected according to speed, clamping range, workpiece support method and machine configuration.
Key Features
- segmented clamping provides broad contact around the workpiece.
- Suitable for workpieces requiring stable, repeatable and surface-sensitive clamping.
- Different series support through-hole, blind-hole, inner-stop, expanding, air-operated, accessory and multi-spindle applications.
- Model selection is based on clamping range, chuck size, mounting method and repeatability requirement.
Typical Applications
- Round, square or hexagonal workpieces
- Thin-wall or surface-sensitive parts
- Workpieces requiring broad contact clamping
- Repeat CNC workholding applications
- Applications where jaw marks or point contact should be reduced
- clamping head setup, changeover or preparation workflows where applicable
Selection Notes
- Confirm the workpiece shape and clamping diameter.
- Check whether the application requires through-hole, blind-hole, inner-stop, expanding, air-operated or multi-spindle clamping.
- Review clamping range, mounting method and repeatability.
- Confirm whether a chuck assembly, replaceable clamping head element or supporting tool is required.
- Send the workpiece drawing and machine information for technical review before ordering.
Technical Specifications

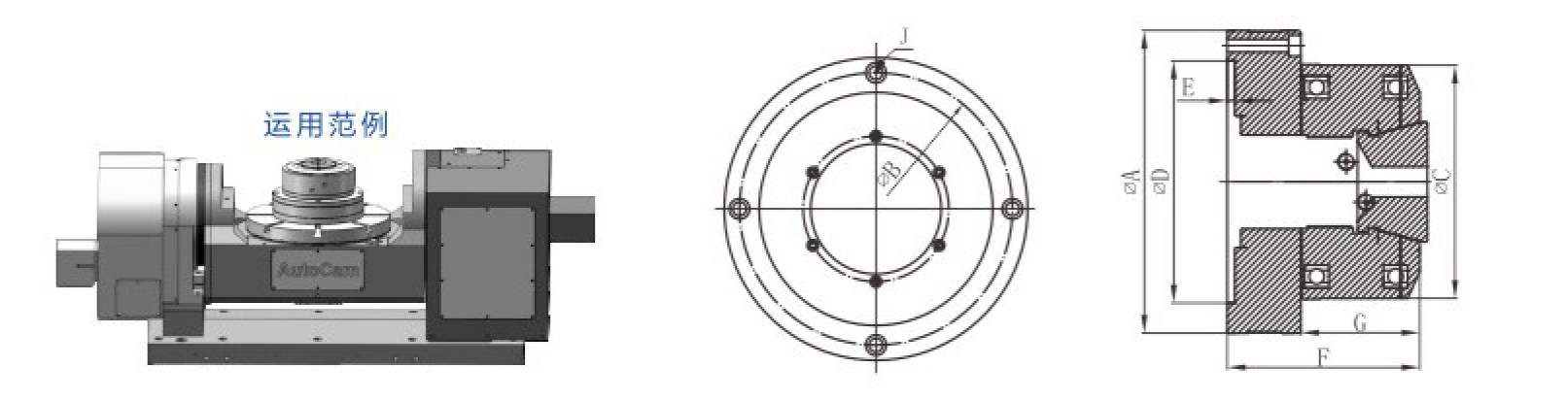

Model and Dimensional Parameters
| Product Model | JAB-SK32 |
|---|---|
| ΦA | 170 |
| ΦB | 147 |
| ΦC | 118 |
| ΦD | 130 |
| E | 5 |
| F | 115 |
| G | 61 |
| J | 4-M8 Countersunk Hole |
| Max. Speed rpm | 3000 |
| Piston Stroke [mm] | 4 |
| Clamping Stroke [mm] | 1.5–2 |
| Clamping Torque [N.m] | 35 |
| Operating Pressure [kg/cm²]² | 3–8 |
| Clamping Range | Φ5–32 |
| Compatible Collet | SK32 |
| Clamping Method | Pull-back |
Request a Quote
This product is supplied by quotation. Send your machine model, workpiece drawing, clamping range, required repeatability and quantity so that the configuration can be reviewed before ordering.
