JAB-SK65 | JAB-SK High-Speed Air-Operated Rotary Rubber Collet Chuck

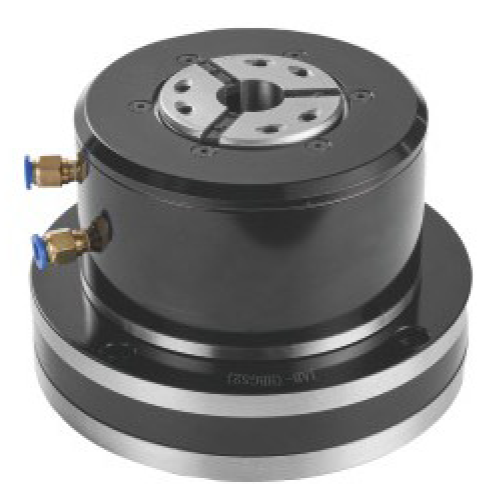

The TOP-TOOL JAB-SK65 JAB-SK High-Speed Air-Operated Rotary Rubber Collet Chuck is designed for rotary rubber-flex clamping applications where air-operated actuation, speed and uniform workpiece support are required.
This series combines air-operated actuation with rubber-flex clamping and should be selected according to speed, clamping range, workpiece support method and machine configuration.
Key Features
- Rubber-flex clamping provides broad contact around the workpiece.
- Suitable for workpieces requiring stable, repeatable and surface-sensitive clamping.
- Different series support through-hole, blind-hole, inner-stop, expanding, air-operated, accessory and multi-spindle applications.
- Model selection is based on clamping range, chuck size, mounting method and repeatability requirement.
Typical Applications
- Round, square or hexagonal workpieces
- Thin-wall or surface-sensitive parts
- Workpieces requiring broad contact clamping
- Repeat CNC workholding applications
- Applications where jaw marks or point contact should be reduced
- Rubber-flex collet setup, changeover or preparation workflows where applicable
Selection Notes
- Confirm the workpiece shape and clamping diameter.
- Check whether the application requires through-hole, blind-hole, inner-stop, expanding, air-operated or multi-spindle clamping.
- Review clamping range, mounting method and repeatability.
- Confirm whether a chuck assembly, replaceable rubber-flex collet element or supporting tool is required.
- Send the workpiece drawing and machine information for technical review before ordering.
Technical Specifications
Model and Dimensional Parameters

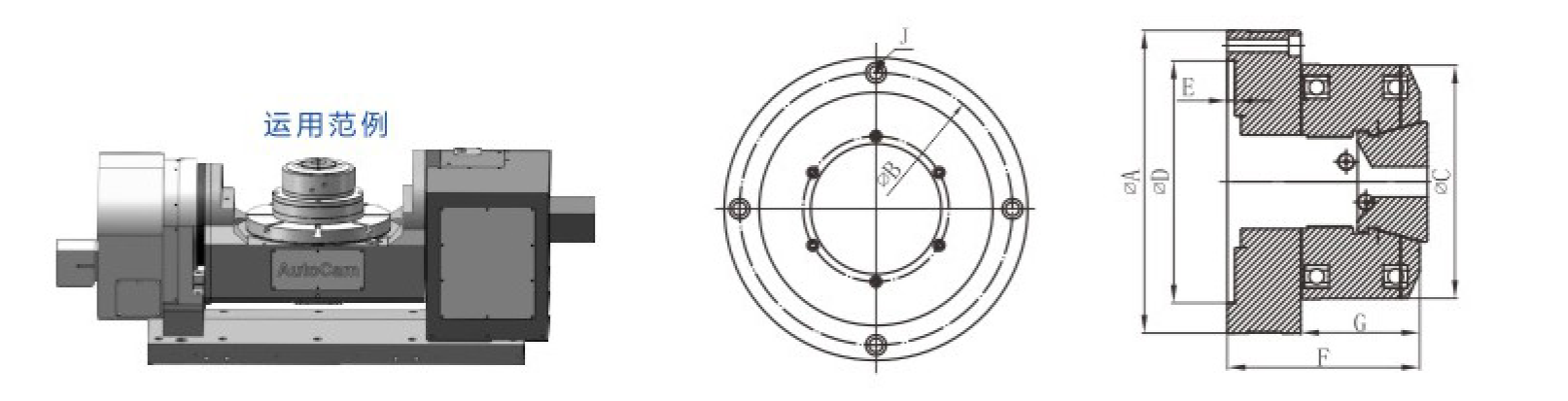

| Product Model | JAB-SK65 |
|---|---|
| ΦA | 210 |
| ΦB | 190 |
| ΦC | 175 |
| ΦD | 170 |
| E | 5 |
| F | 125 |
| G | 73 |
| J | 4-M8 Countersunk Hole |
| Max. Speed rpm | 2000 |
| Piston Stroke [mm] | 4 |
| Clamping Stroke [mm] | 1.5–2 |
| Clamping Torque [N.m] | 35 |
| Operating Pressure [kg/cm²]² | 3–8 |
| Clamping Range | Φ5–65 |
| Compatible Collet | SK65 |
| Clamping Method | Pull-back |
Request a Quote
This product is supplied by quotation. Send your machine model, workpiece drawing, clamping range, required repeatability and quantity so that the configuration can be reviewed before ordering.
