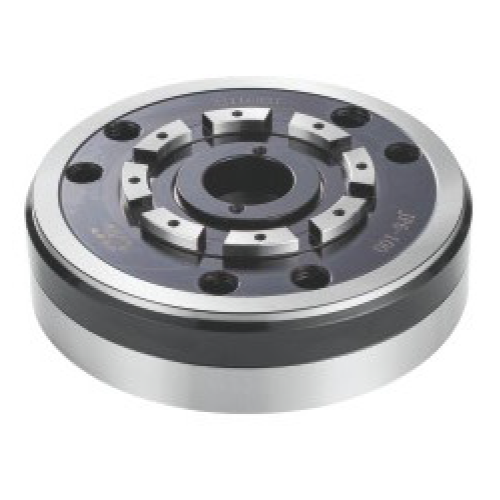

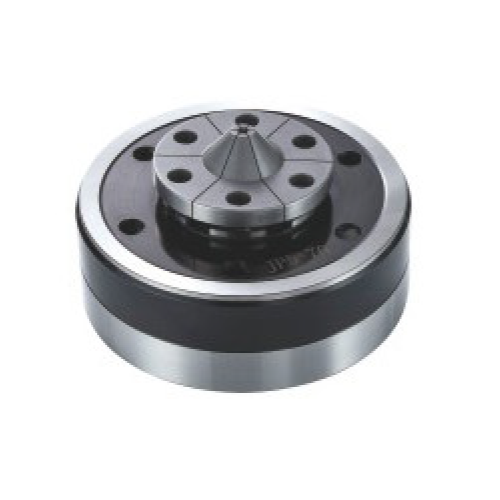

JP5-70 | Rear-Actuated Passive Diaphragm Chuck
The JP5-70 rear-actuated passive diaphragm chuck is a model-level RFQ product for CNC lathe and precision workholding applications where the chuck dimensions, rear actuation method, working pressure, clamping stroke, compatible collet and machine fit must be confirmed before supply.

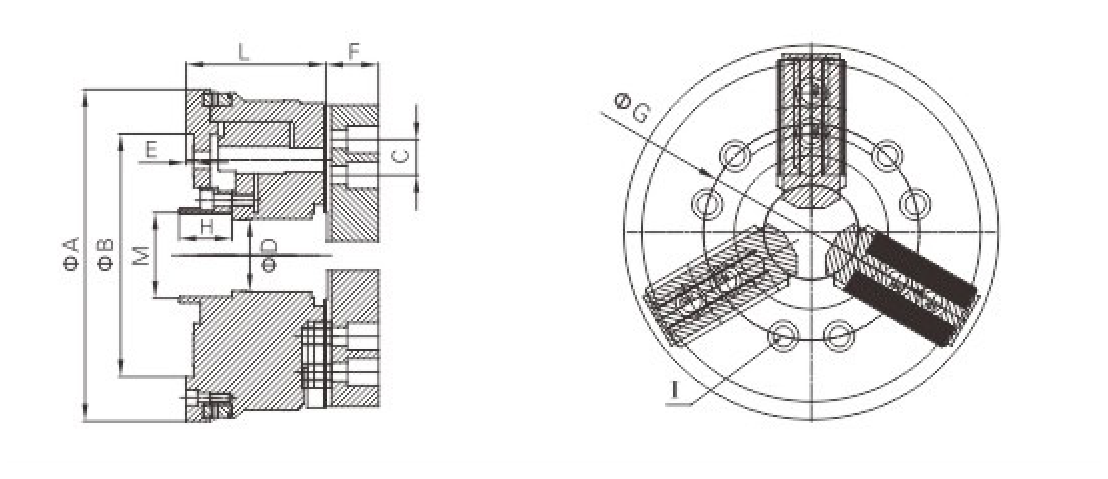

Technical Specifications
| Model | JP5-70 |
|---|---|
| ΦA | 147 |
| ΦB | 125 |
| ΦC | M32×1.5 |
| ΦD | 50 |
| ΦE | 70 |
| F | 5 |
| ΦG | 106 |
| L | 51 |
| I | 6-M6 CSK |
| II | 6-M5 TAP |
| ΦH | 60 |
| Working Pressure (kg/cm²) | 2～7 |
| Clamping Stroke (mm) | 0.3 |
| Compatible Collet | JD-70 |
Selection Information
Before requesting a quote, confirm the machine model, spindle or mounting interface, workpiece drawing, clamping diameter, compatible collet requirement, rear actuation setup, working pressure requirement, clamping stroke requirement and quantity.
Typical Applications
- CNC lathe workholding where rear-actuated passive diaphragm chuck selection must be reviewed by model
- Precision turning setups requiring passive diaphragm or membrane chuck clamping
- Thin-wall or deformation-sensitive workpiece clamping where application review is required
- Workholding replacement or new fixture planning for compatible collet setups
- RFQ workholding projects requiring pressure, stroke, actuation and collet fit review
What to Confirm Before Ordering
- Machine model and mounting requirements
- Workpiece drawing and clamping diameter
- Compatible collet requirement
- Rear actuation setup and available machine clearance
- Working pressure, clamping stroke, quantity and application details
Related Resources
FAQ
What is the JP5-70 rear-actuated passive diaphragm chuck used for?
It is used for CNC lathe and precision workholding applications where the rear-actuated passive diaphragm chuck configuration, compatible collet and workpiece requirements must be reviewed before selection.
What information is needed for a quote?
Send the machine model, mounting requirements, rear actuation setup, workpiece drawing, clamping diameter, compatible collet requirement, working pressure requirement, clamping stroke requirement and quantity.
Can the listed working pressure or clamping stroke be treated as a production guarantee?
No. Listed technical data is for model identification and quotation review. Final suitability must be confirmed according to the actual machine, workpiece and production conditions.
Does this diaphragm chuck guarantee zero deformation?
No. Diaphragm chuck selection is application-dependent. Workpiece deformation risk depends on the workpiece geometry, material, clamping method, machining condition and fixture setup.
Is this product sold by quote?
Yes. This rear-actuated passive diaphragm chuck is handled as an RFQ product because the correct model depends on workpiece size, compatible collet, actuation setup, working pressure, clamping stroke and application details.
Request a Quote
Request a quote with your machine model, rear actuation setup, workpiece drawing, compatible collet requirement and clamping requirements.
