K53460 | 460 mm Oil Pipe Thread Chuck, Front-Mounted Pneumatic Type

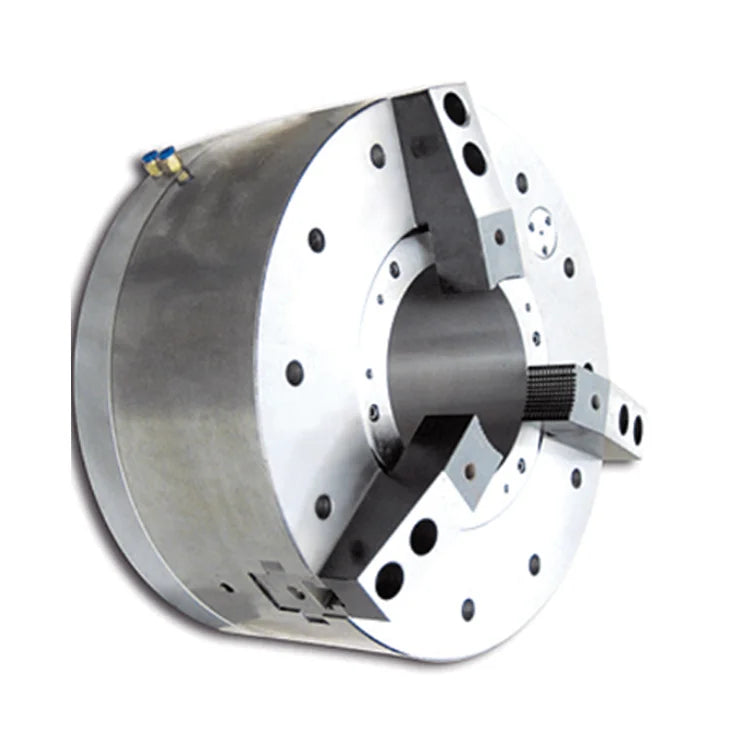

The TOP-TOOL K53460 is a 460 mm oil pipe thread chuck with a front-mounted pneumatic structure. It is designed for pipe threading applications and long pipe workpieces.
Overview
The K53 oil pipe thread chuck is a front-mounted pneumatic chuck designed for pipe threading applications and long pipe workpieces. The series is available in multiple sizes so that the chuck can be selected according to the pipe dimensions, machine configuration and production requirements.
Key Features
- Front-mounted pneumatic structure for pipe threading applications.
- Designed for long pipe workpieces.
- Available in multiple chuck sizes for different pipe and machine requirements.
- Separate installation dimensions and performance parameters are provided for model selection.
- Supplied by quotation so that the machine, workpiece and application requirements can be confirmed before ordering.
Typical Applications
- Oil pipe thread machining
- Long pipe workpieces
- Pipe threading lathes
- Production requiring chuck selection based on pipe dimensions
- Applications requiring a front-mounted pneumatic chuck structure
Selection Notes
- Confirm the pipe outside diameter and required chuck size.
- Review the machine model and installation dimensions.
- Check the single jaw stroke, clamping force and maximum speed.
- Confirm the pneumatic supply pressure and production requirements.
- Send the workpiece drawing and machine information for technical review before ordering.
Technical Specifications

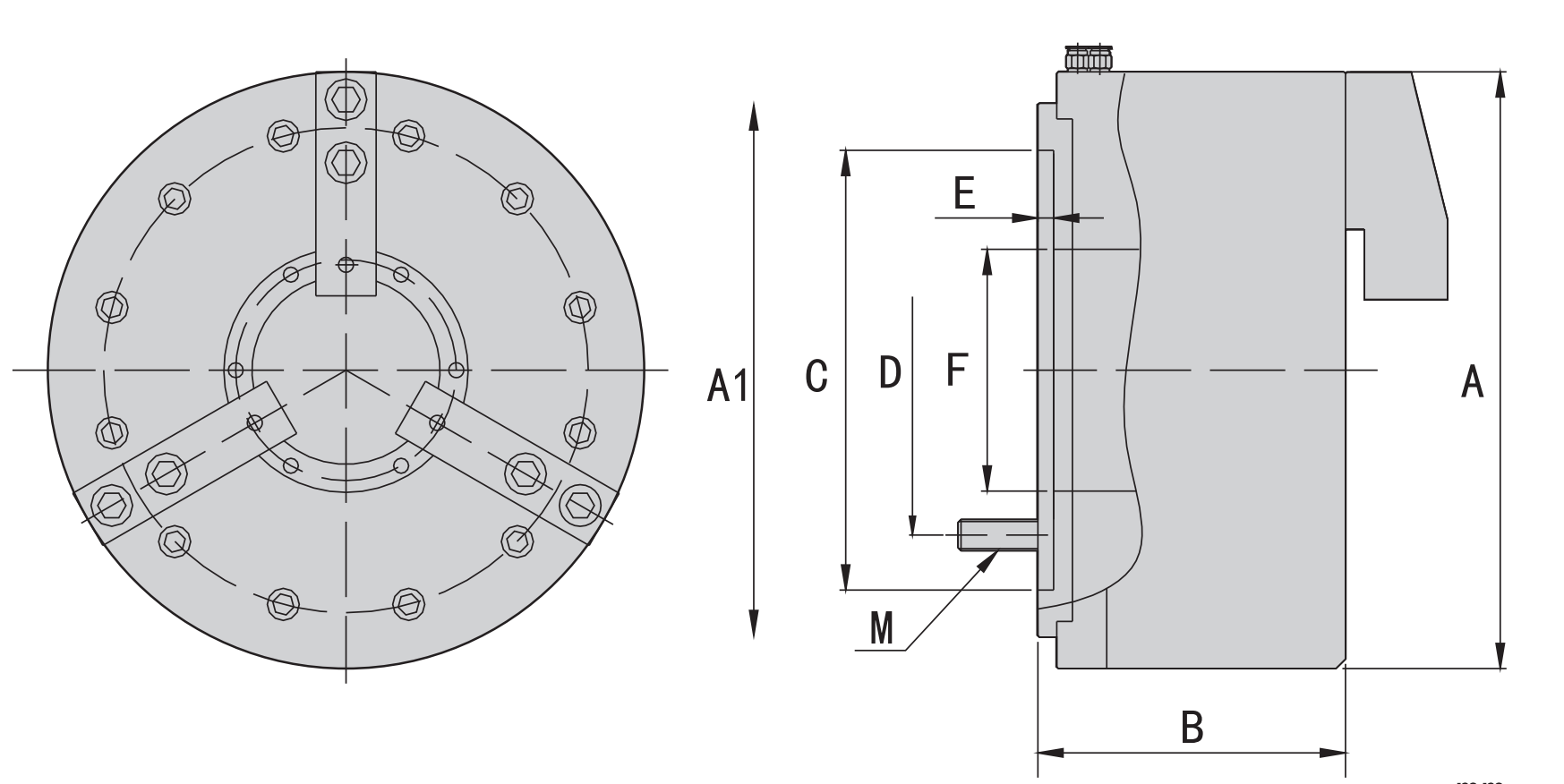

Main Installation Dimensions
| Model | 460 |
|---|---|
| A | 467 |
| A1 | 400 |
| B | 238 |
| C (H6) | 310 |
| D | 374 |
| E | 8 |
| F | 181 |
| M | 9-M12 |
Stroke and Performance Parameters
| Single Jaw Stroke (mm) | 13+7 |
|---|---|
| Clamping Force (Air Pressure 0.5 MPa) kN (kgf) | 110(11220) |
| Max. Speed (r/min) | 1300 |
| Moment of Inertia (kg·m2) | 9.8 |
| Weight (kg) | 190 |
| Pressure MPa (kgf/cm2) | 0.2-1(2-10) |
Request a Quote
This product is supplied by quotation. Send your machine model, workpiece drawing, required clamping method and quantity so that the configuration can be reviewed before ordering.
