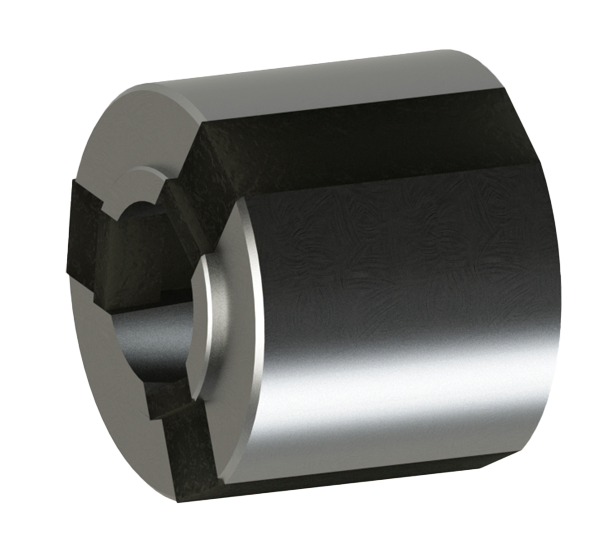

SB110 | Through-Hole Segmented Clamping Bushing
The TOP-TOOL SB110 Through-Hole Segmented Clamping Bushing is a segmented clamping element for internal clamping of through-hole workpieces.
This segmented clamping bushing provides internal segmented clamping contact and is selected according to the bore diameter, clamping range and repeatability requirement.
Key Features
- Segmented clamping provides broad contact around the workpiece.
- Suitable for workpieces requiring stable, repeatable and surface-sensitive clamping.
- Different series support through-hole, blind-hole, inner-stop, expanding, air-operated, accessory and multi-spindle applications.
- Model selection is based on clamping range, chuck size, mounting method and repeatability requirement.
Typical Applications
- Round, square or hexagonal workpieces
- Thin-wall or surface-sensitive parts
- Workpieces requiring broad contact clamping
- Repeat CNC workholding applications
- Applications where jaw marks or point contact should be reduced
- Expanding mandrel setup, changeover or preparation workflows where applicable
Selection Notes
- Confirm the workpiece shape and clamping diameter.
- Check whether the application requires through-hole, blind-hole, inner-stop, expanding, air-operated or multi-spindle clamping.
- Review clamping range, mounting method and repeatability.
- Confirm whether a chuck assembly, replaceable segmented clamping bushing element or supporting tool is required.
- Send the workpiece drawing and machine information for technical review before ordering.
Technical Specifications
| Model | SB110 |
|---|---|
| Product Type | Through-Hole Segmented Clamping Bushing |
| Clamping Method | Internal expansion |
| Bore Type | through-hole internal expansion |
| Clamping Range | 26–38 |
| Chuck Size | 26–38 |
| Repeatability | ±0.25 |
| Purchase Mode | Request a Quote |
| Model | SB110 |
| Clamping Range [mm] | 26–38 |
| Recommended Workpiece Tolerance [mm] | ±0.25 |
| Maximum Length [mm] | 26 |
| Expanding Mandrel Type | Through-Hole Segmented Clamping Bushing |
Request a Quote
This product is supplied by quotation. Send your machine model, workpiece drawing, clamping range, required repeatability and quantity so that the configuration can be reviewed before ordering.
