Professional 160mm / 6-Inch 4-Jaw Self-Centering Lathe Chuck

Built for medium to large metal lathes, the TOP-TOOL 160mm chuck delivers heavy-duty gripping power and precision. HT300 Cast Iron construction with AISI 5140 alloy steel scroll ensures stability during demanding turning operations.

Premium Materials & Hardening

Component Material Hardness (HRC)
Body HT300 Cast Iron —
Jaws AISI 1045 Carbon Steel 52-58
Scroll Plate AISI 5140 Alloy Steel 43-48
Bevel Gears AISI 5140 Alloy Steel 45-50
Back Plate HT100 / Engineered Plastic —

Key Features

  • Heavy-Duty HT300 Cast Iron: Superior mass and damping for large workpieces and heavy cuts. Minimizes chatter and improves finish.
  • Hardened Scroll & Gears: AISI 5140 alloy steel scroll (HRC 43-48) and bevel gears (HRC 45-50) for smooth, precise operation under heavy loads.
  • Hardened Jaws (HRC 52-58): AISI 1045 carbon steel jaws through-hardened for maximum grip strength and wear resistance.
  • Guaranteed Precision: Every chuck tested with 4 different diameter test bars. Repeatability ≤0.05mm (0.002").
  • Plain Back Mount: 3× M8 mounting holes. Note: Adapter plate required for spindle connection. Not included.
  • Includes External & Internal Jaws: Comes with both external jaws (8–130mm) and internal jaws for hollow parts.
  • T-Key Included: Heavy-duty key for secure locking.

Technical Specifications

Parameter Value

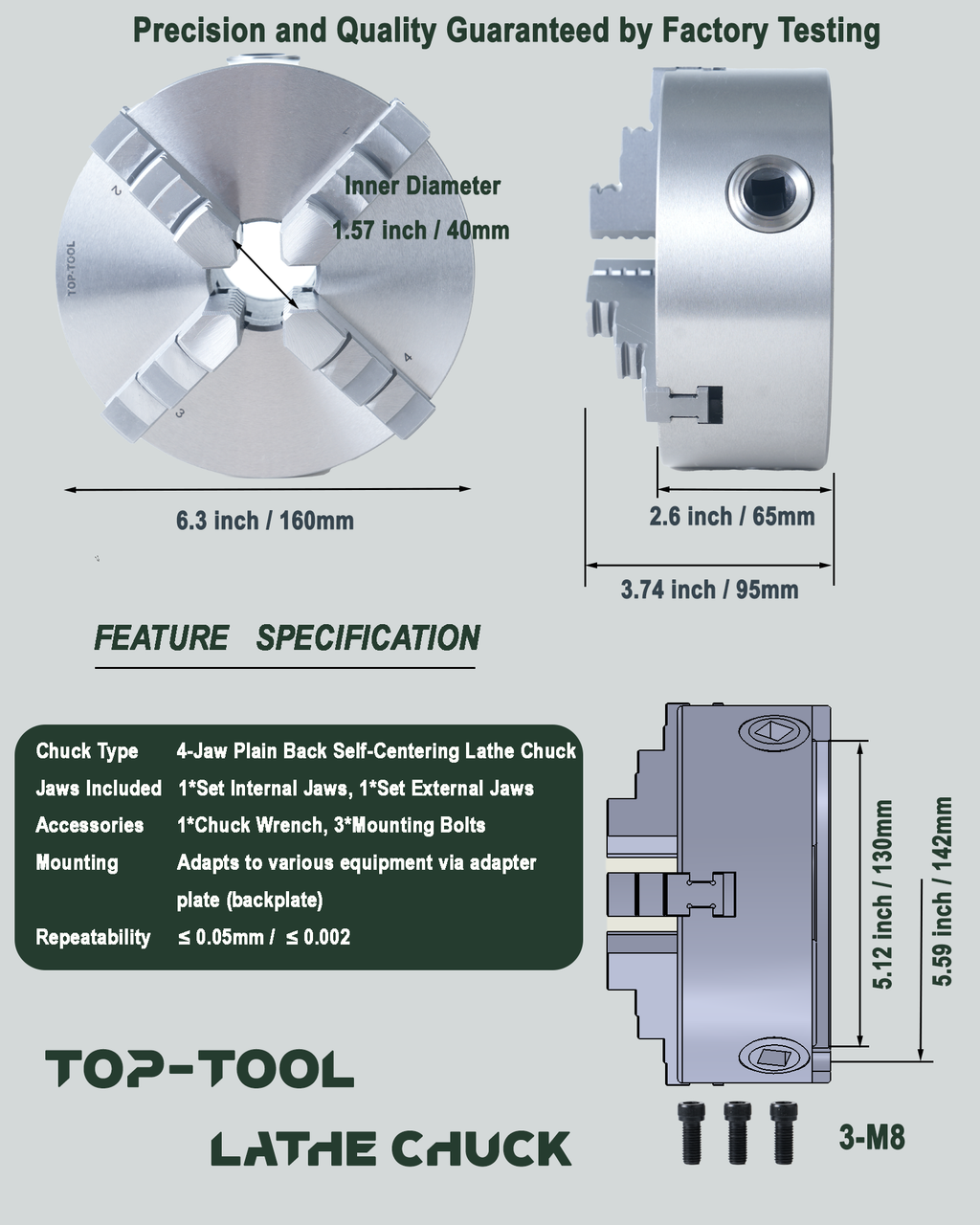

Chuck Diameter (D) 160mm
Clamping Range (External) 8 – 130mm
D2 142mm
D3 45mm
Body Length (H) 95mm
H1 65mm
Jaw Step Height (h) 5mm
Mounting Thread (z-d) 3× M8
Repeatability ≤0.05mm (0.002")
Net Weight 8.2 kg

Error-Free Jaw Installation

Numbered jaws (1, 2, 3) match the chuck body slots for quick, accurate installation. Prevents misalignment and ensures optimal concentricity.

Versatile Applications

  • Lathe: Heavy-duty turning, facing, drilling, boring
  • Milling Machine: Workpiece holding for milling
  • Drilling Machine: Precision drilling setups
  • CNC Machine: CNC turning and production work

Compatibility Guide

Ideal for medium-large lathes (10"+ swing).
Sizing Rule: Lathe swing diameter must exceed chuck diameter (160mm). Allow clearance for jaw extension. A swing of ≥200mm is recommended for full capacity usage.

Maintenance

Clean regularly. Apply Molybdenum Disulfide (MoS2) grease to the scroll and bevel gears to ensure smooth operation and extend service life.
