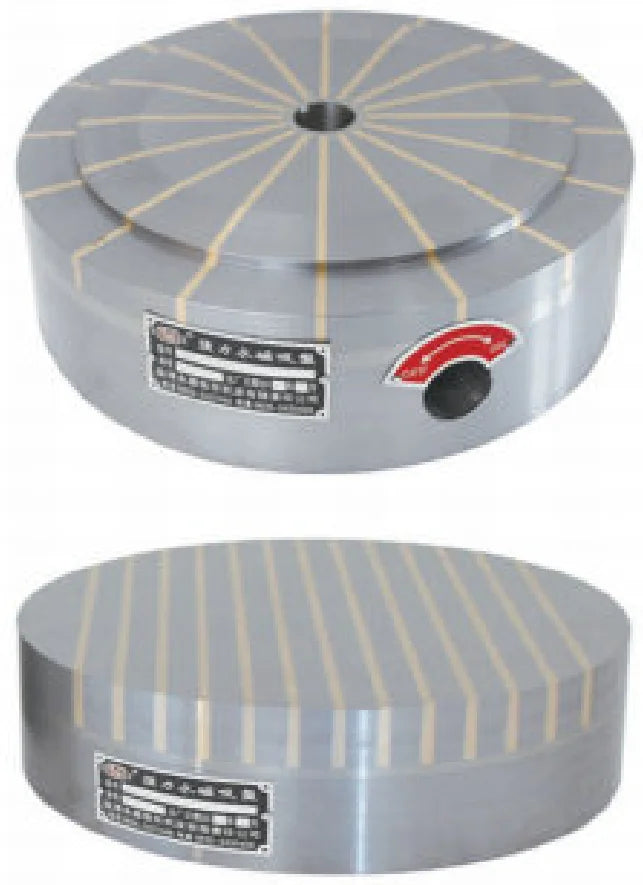

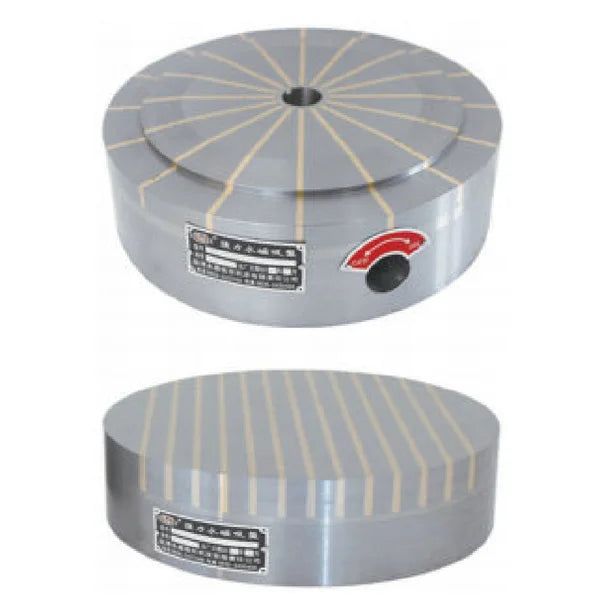

XM51 200 | Powerful Circular Permanent Magnetic Chuck
The XM51 200 powerful circular permanent magnetic chuck is a model-level RFQ product for grinding and magnetic workholding. It is selected when round or circular ferrous workpieces require magnetic holding and the chuck diameter, pole layout, mounting method and workpiece contact area must be checked before supply.
Technical Specifications
| Model | XM51 200 |
|---|---|
| Main Dimensions (mm) D | 200 |
| Main Dimensions (mm) H | 70 |
| Magnetic Force (kg) | 120 |
| Net Weight (kg) | 12 |
Selection Information
Before requesting a quote, confirm the grinder or machine table size, required chuck diameter, workpiece material, contact area, pole layout, mounting method and grinding environment.
Typical Applications
- Grinding of ferrous workpieces
- Circular magnetic workholding
- Round part holding on grinding machines
- Toolroom and production grinding setups
- Applications where mechanical clamps would interfere with the work surface
What to Confirm Before Ordering
- Machine model and table or mounting interface
- Required chuck diameter
- Workpiece material, thickness and contact surface
- Holding layout and grinding environment
- Quantity and application details
Related Resources
FAQ
What is the XM51 200 powerful circular permanent magnetic chuck used for?
It is used for magnetic workholding when ferrous workpieces need to be held on a circular magnetic chuck surface. Final selection depends on workpiece material, contact area, thickness, chuck diameter and machine setup.
What information is needed for a quote?
Send the machine model, required chuck diameter, mounting details, workpiece material, workpiece dimensions and quantity.
Can this chuck hold non-ferrous materials?
No. Magnetic chuck holding depends on ferrous material response, contact area, surface condition, workpiece thickness and grinding load. Non-ferrous materials are not held directly by a magnetic chuck.
Request a Quote
Request a quote with your machine model, workpiece details and required powerful circular permanent magnetic chuck size.
