Front-Mount Air / Hydraulic Rotary Collet Chucks
Front-side mounted rotary collet chucks for compact air or hydraulic machine integration.
View Matching ProductsMachine Tool Accessories
Collet Chucks
Browse TOP-TOOL collet chucks for CNC lathe and fixed workholding applications. This range includes pneumatic, hydraulic, air / hydraulic, rotary, fixed, pull-back, quick, front-mount and passive collet chuck configurations for repeat clamping of round workpieces.
Browse Collet Chucks by Type
Air / Hydraulic Rotary Force-Release Collet Chucks
Rotary collet chucks with controlled release for repeat loading and unloading operations.
View Matching Products
Pneumatic Fixed Collet Chucks
Stationary air-operated collet chucks for drilling, tapping, milling and fixture applications.
View Matching Products
JAB High-Speed Pneumatic Collet Chucks
High-speed air-operated rotary collet chucks with front-push actuation.
View Matching Products
JAW Precision High-Speed Pneumatic Collet Chucks
Precision high-speed pneumatic rotary collet chucks with pull-back clamping action.
View Matching Products
JAD Air Rotary Pull-Back Collet Chucks
Air-operated rotary pull-back collet chucks for axial seating against a locating face.
View Matching Products
JHB Hydraulic Rotary Collet Chucks
Hydraulic rotary collet chucks for stable clamping under heavier machining conditions.
View Matching Products
Air / Hydraulic Rotary Quick Collet Chucks
Quick rotary collet chucks for efficient tube and round workpiece loading.
View Matching Products
JT-W Passive Collet Chucks
Externally actuated passive collet chucks for precision toolholding and fixture applications.
View Matching Products
JP Front-Push Passive Collet Chucks
Front-push passive collet chucks with spindle-nose or straight-shank mounting configurations.
View Matching ProductsSelect a Collet Chuck for Your Application
Start with the workholding method, actuation type and machine setup. Rotary collet chucks are used for turning and rotating workpieces, while fixed collet chucks are used for stationary clamping on drilling, tapping, milling and machining center fixtures. Choose the model according to actuation type, collet size, clamping range, mounting method and required release action.
Filtres
36 articles
Trier Meilleures ventes
-

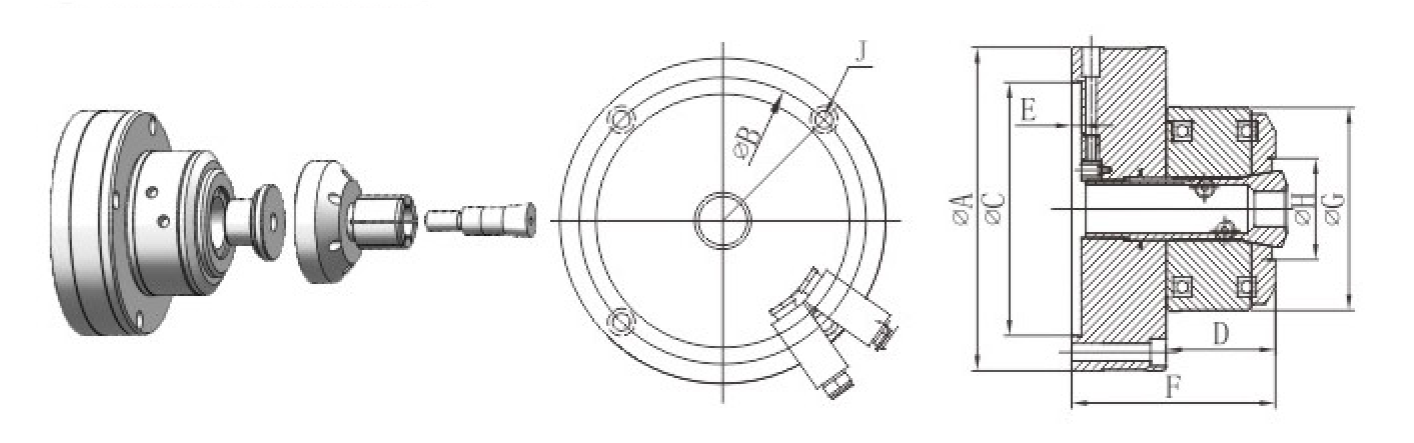

JAB-40 | JAB High-Speed Pneumatic Collet Chuck -
JAB-25 | JAB High-Speed Pneumatic Collet Chuck -

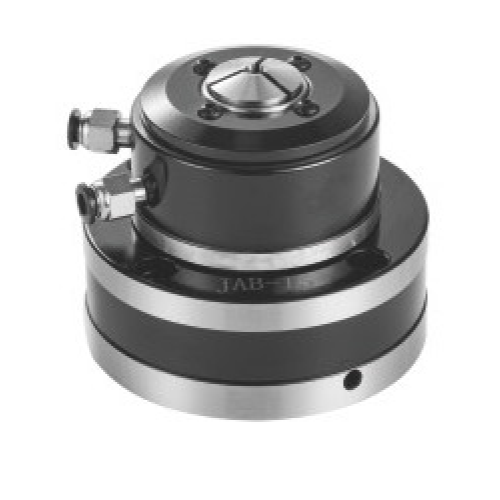

JAB-15 | JAB High-Speed Pneumatic Collet Chuck -
JH10-150 | Front-Mount Air / Hydraulic Rotary Collet Chuck -
JH9-120 | Front-Mount Air / Hydraulic Rotary Collet Chuck -
JH7-40 | Front-Mount Air / Hydraulic Rotary Collet Chuck -

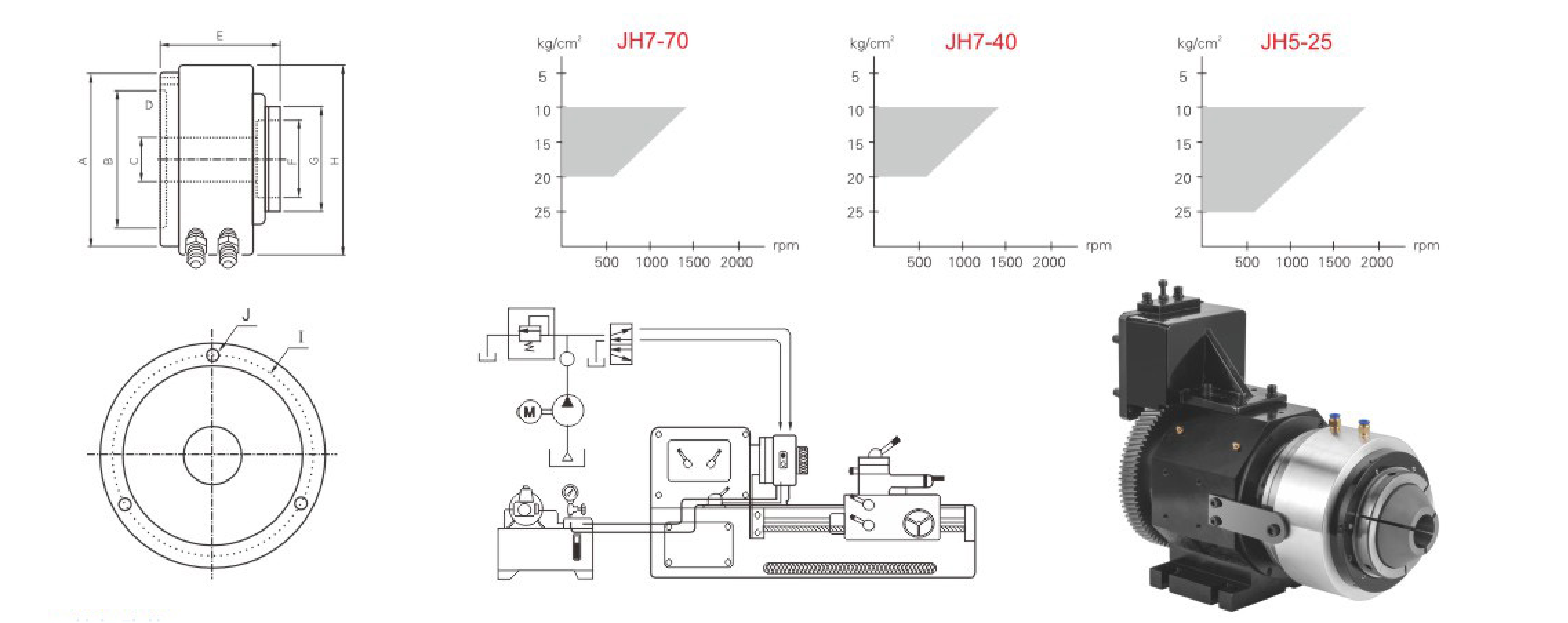

JA7-40 | Front-Mount Air / Hydraulic Rotary Collet Chuck -

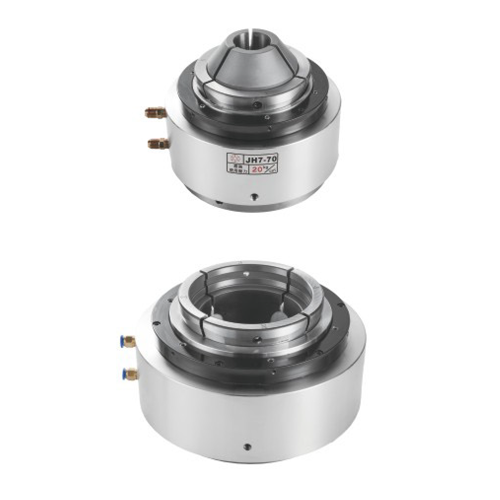

JA5-25 | Front-Mount Air / Hydraulic Rotary Collet Chuck -
JH9-120(F) | Air / Hydraulic Rotary Force-Release Collet Chuck -
JH9-90(F) | Air / Hydraulic Rotary Force-Release Collet Chuck -

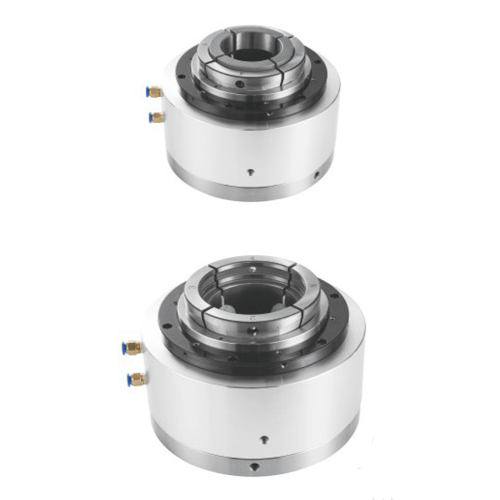

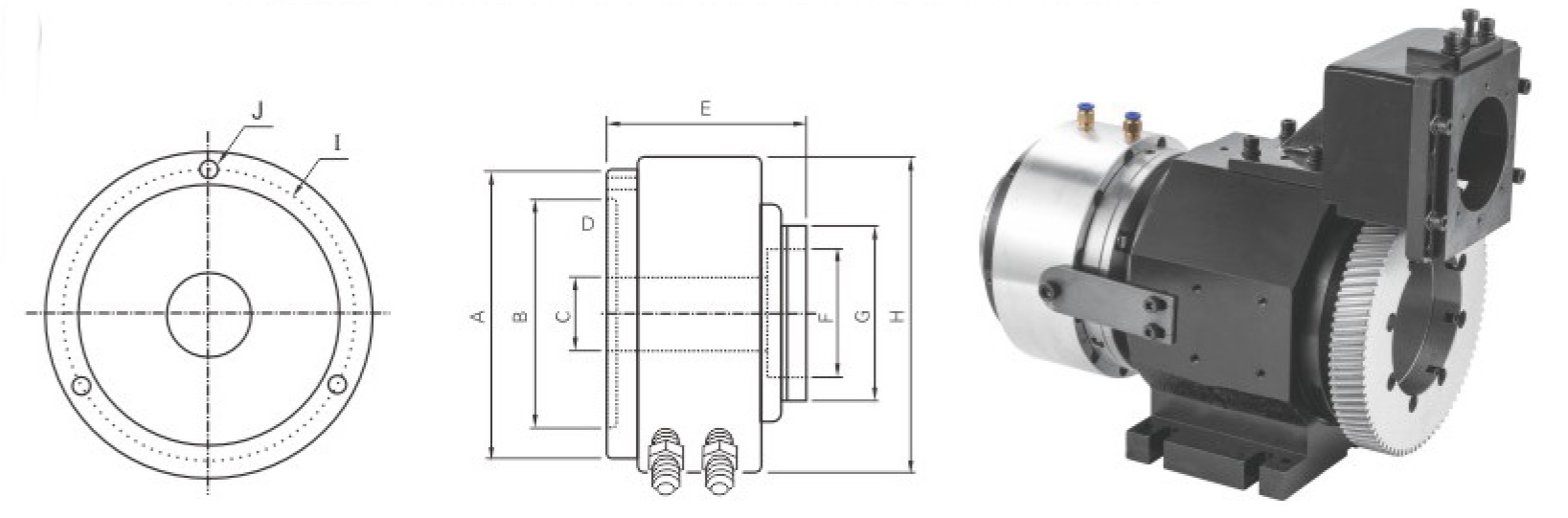

JH7-70(F) | Air / Hydraulic Rotary Force-Release Collet Chuck -
JA7-40(F) | Air / Hydraulic Rotary Force-Release Collet Chuck
Collet Chuck Applications
Compact Workpiece Clamping
Use collet chucks for compact, repeatable clamping of round workpieces in turning and fixture applications.
Pneumatic or Hydraulic Actuation
Select pneumatic, hydraulic or air-hydraulic collet chuck configurations according to the machine and production setup.
Rotary Workholding
Rotary collet chucks can support spindle-based clamping where compact workholding and repeatability are required.
Fixed Fixture Clamping
Fixed collet chuck configurations can be used in selected fixtures where the chuck body does not rotate.
How to Choose a Collet Chuck
Confirm the Collet Capacity
Check the maximum collet capacity and workpiece diameter before selecting a model.
Choose the Chuck Type
Select rotary, fixed, pull-back, quick or passive collet chuck types according to the application.
Review Actuation Type
Confirm whether pneumatic, hydraulic or air-hydraulic actuation is required.
Check Repeatability Requirements
Review repeatability, speed, clamping force and production requirements before ordering.
Confirm Mounting and Space
Check the mounting method, installation space and machine compatibility.
Collet Chuck Type Comparison
| Collet Chuck Type | Actuation Type | Typical Use | Selection Note |
|---|---|---|---|
| Air / Hydraulic Rotary Collet Chuck | Air / Hydraulic | Rotary workholding with force release | Confirm collet capacity and machine setup |
| Pneumatic Rotary Collet Chuck | Pneumatic | High-speed or repeated air-operated clamping | Review speed, range and air supply |
| Hydraulic Rotary Collet Chuck | Hydraulic | Stable hydraulic collet clamping | Confirm pressure and machine compatibility |
| Passive Collet Chuck | Passive | Front-push or mechanical clamping setups | Confirm operating method and workpiece range |
| Fixed Pneumatic Collet Chuck | Pneumatic | Fixture-style clamping | Review installation space and actuation direction |
Request a Quote for Collet Chucks
Collet chucks are selected by chuck type, collet capacity, actuation method and workpiece size. Send your machine details and clamping requirements for review.
Related Solutions
Technical FAQ
What is a collet chuck used for?
A collet chuck clamps a workpiece with a collet or clamping head and is used where compact, repeatable workholding is required.
How do I choose between pneumatic and hydraulic collet chucks?
Choose based on the machine setup, actuation source, clamping force, speed and production requirements.
What does collet capacity mean?
Collet capacity refers to the workpiece or collet size range that the chuck can support.
Do collet chucks require a quote?
Most industrial collet chuck configurations require confirmation, so they are handled by quotation before ordering.
Not Sure Which Collet Chuck Fits Your Machine?
Send the workpiece diameter, required collet capacity, actuation type and machine information. The suitable collet chuck configuration can be reviewed before quotation.
